Classify each in terms of linearity, time invariance, memory (static/dynamic), & causality
(a) y’’(t) + 3y’(t)=2x’(t) + x(t)
(b) y’’(t) + 3y(t)y’(t)=2x’(t) + x(t)
(c) y’’(t) + 3tx(t)y’(t)=2x’(t)
(d) y’’(t) + 3y’(t)=2x2 (t) + x(t+2)
(e) y(t) + 3 = 2x2 (t) + 2x(t)
(f) y(t) = 2x(t+1) + 5
(g) y’’(t) + e-ty’(t) = | x’(t-1) |
(h) y(t) = x2 (t) + 2x(t+1)
(i) y’’(t) + cos(2t)y’(t) = x’(t+1)
(j) y(t) +t
y(t)dt = 2x(t)

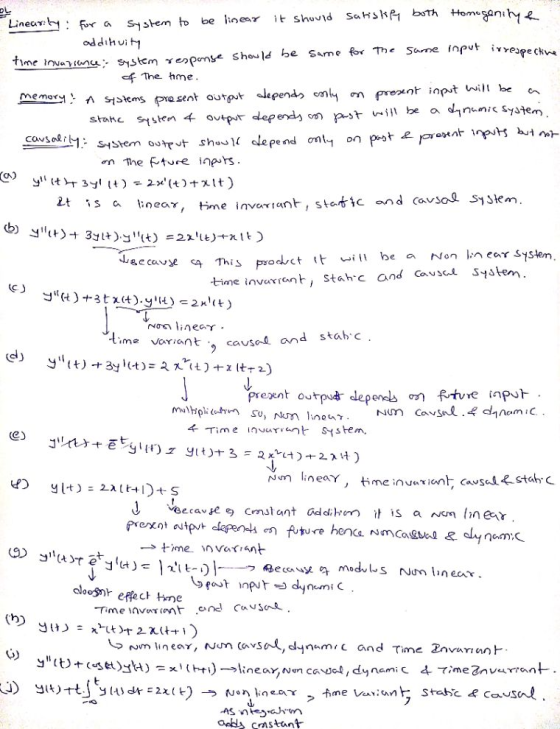

Homework Answers
Add Answer to:
Classify each in terms of linearity, time invariance, memory
(static/dynamic), & causality
(a) y’’(t) + 3y’(t)=2x’(t)...
