Please prove both c and d. Thank you in advance!! A/ic IC A/IC Location of IC...

Question

Question

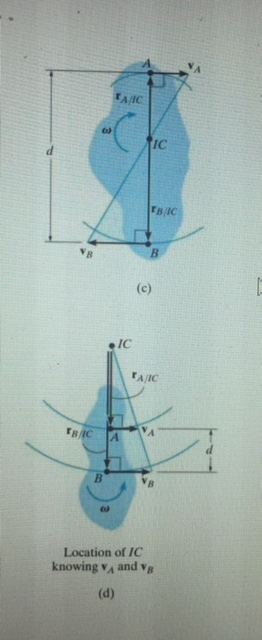

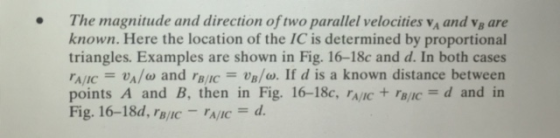

A/ic IC A/IC Location of IC knowing vA and v Please prove both c and d. Thank you in advance!!

engineering Civil-Engineering

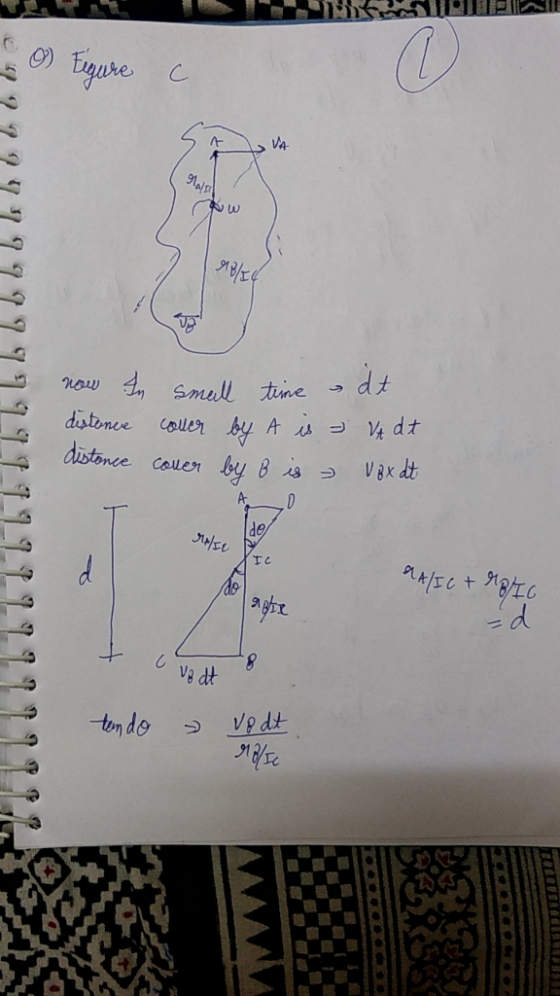

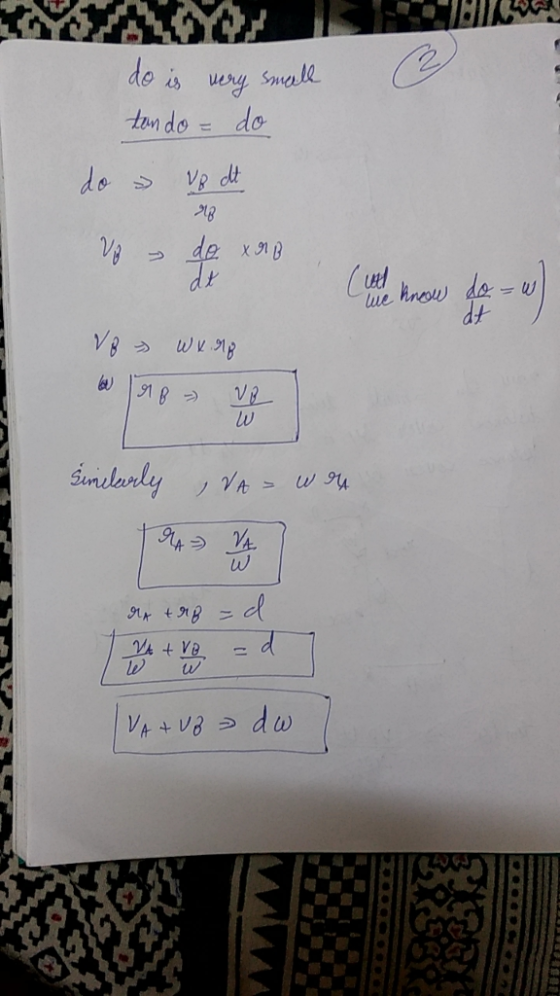

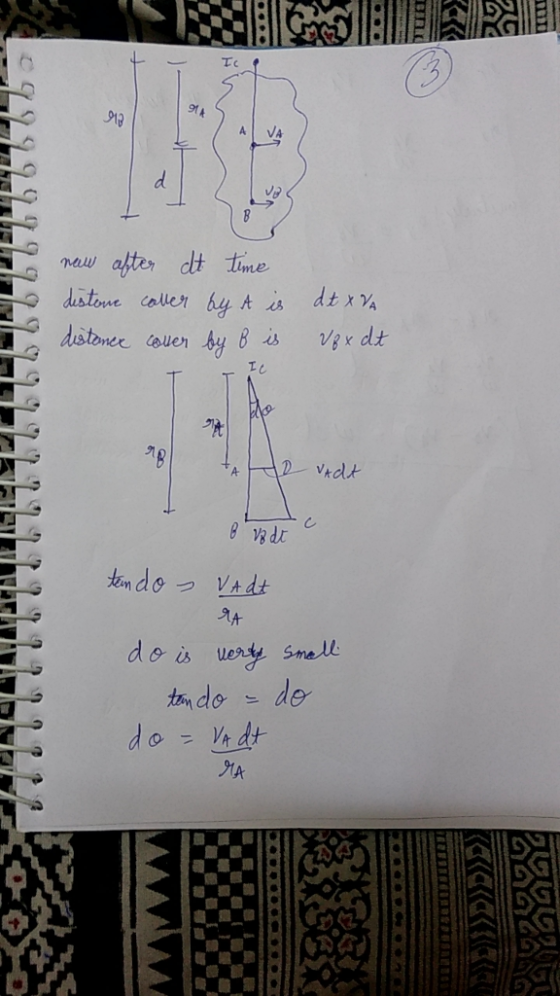

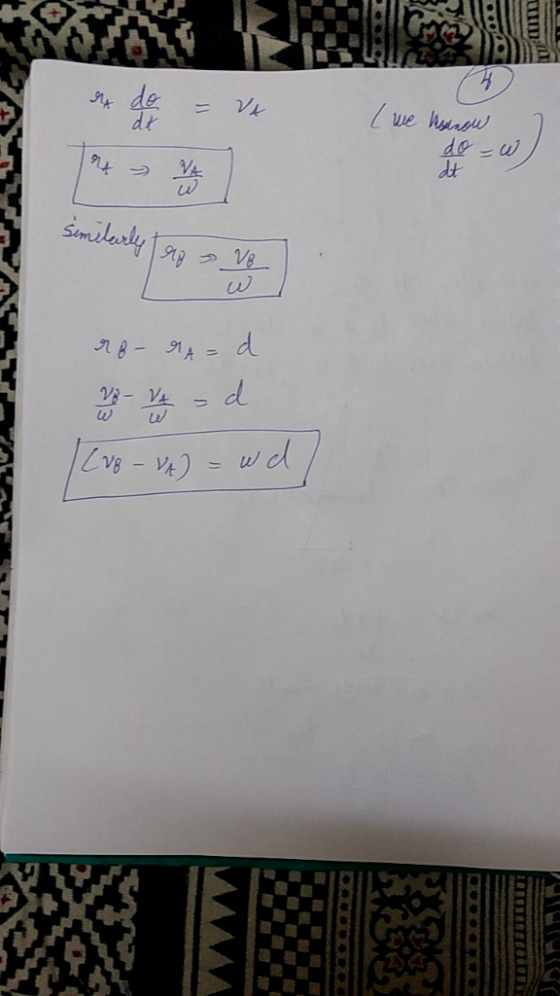

Answer 1

Answer #1

Answer 2
