Question

You should submit your report in ONE file (in PDF or MS Word format). Your report must contain the original R code, with outputs and a clear statement of the final answer. Partial

points will be rewarded only when you have the correct R code. Font size should be 10 - 12pt and plots (if any) should be clearly labeled.

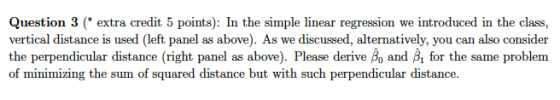

Question 3 (extra credit 5 points): In the simple linear regression we introduced in the class, vertical distance is used (left panel as above). As we discussed, alternatively, you can also consider the perpendicular distance (right panel as above). Please derive Bo and B for the same problem of minimizing the sum of squared distance but with such perpendicular distance.

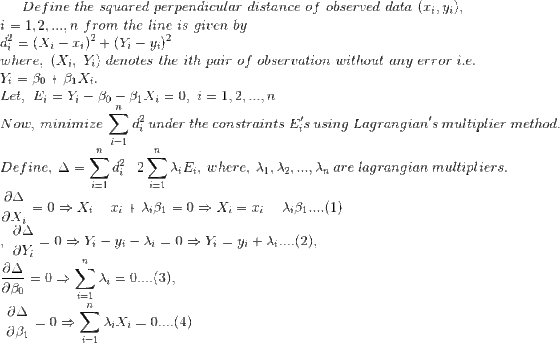

Answer 1

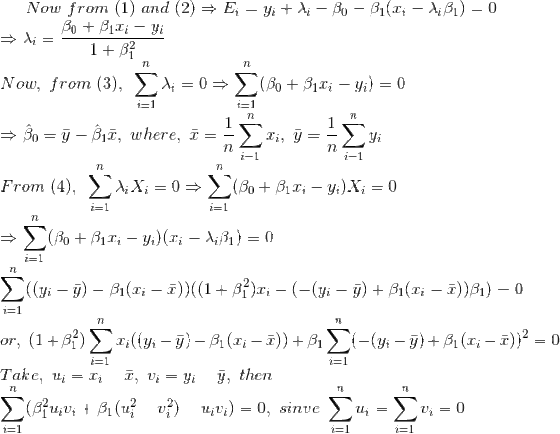

$Now~from~(1)~and~(2)\Rightarrow E_i=y_i+\lambda_i-\beta_0-\beta_1(x_i-\lambda_i\beta_1)=0\\ \Rightarrow \lambda_i=\frac{\beta_0+\beta_1x_i-y_i}{1+\beta_1^2}\\ Now,~from~(3),~\sum_{i=1}^n\lambda_i=0\Rightarrow \sum_{i=1}^n(\beta_0+\beta_1x_i-y_i)=0\\ \Rightarrow \hat{\beta}_0=\bar{y}-\hat{\beta}_1\bar{x},~where,~\bar{x}=\frac{1}{n}\sum_{i=1}^nx_i,~\bar{y}=\frac{1}{n}\sum_{i=1}^ny_i\\ From~(4),~\sum_{i=1}^n\lambda_iX_i=0\Rightarrow \sum_{i=1}^n(\beta_0+\beta_1x_i-y_i)X_i=0\\ \Rightarrow \sum_{i=1}^n(\beta_0+\beta_1x_i-y_i)(x_i-\lambda_i\beta_1)=0\\ \sum_{i=1}^n((y_i-\bar{y})-\beta_1(x_i-\bar{x}))((1+\beta_1^2)x_i-(-(y_i-\bar{y})+\beta_1(x_i-\bar{x}))\beta_1)=0\\ or,~(1+\beta_1^2)\sum_{i=1}^nx_i((y_i-\bar{y})-\beta_1(x_i-\bar{x}))+\beta_1\sum_{i=1}^n(-(y_i-\bar{y})+\beta_1(x_i-\bar{x}))^2=0\\ Take,~u_i=x_i-\bar{x},~v_i=y_i-\bar{y},~then\\ \sum_{i=1}^n(\beta_1^2u_iv_i+\beta_1(u_i^2-v_i^2)-u_iv_i)=0,~sinve~\sum_{i=1}^nu_i=\sum_{i=1}^nv_i=0\\$ $or,~\beta_1^2s_{xy}+\beta_1(s_x^2-s_y^2)-s_{xy}=0\\ then~\hat{\beta}_1=\frac{s_{yy}-s_{xx}+sign(s_{xy})\sqrt{(s_{xx}-s_{yy})^2+4s_{xy}^2}}{2s_{xy}}\\ where,~sign(s_{xy})=1~if~s_{xy}>0\\ =-1~if~s_{xy}<0$

R code:

x=c(11,12,13,14,15,16,17,18,19,20) # values of independent variable
y=c(30,29,29,25,24,24,24,21,18,15) # values of dependent variable
n=length(x) # no. of pair observations
s_xx=sum(x^2)-(sum(x))^2/n
s_yy=sum(y^2)-(sum(y))^2/n
s_xy=sum(x*y)-(sum(x)*sum(y))/n
bar_x=mean(x)
bar_y=mean(y)
sign=0
if(s_xy>0){
sign=1
} else{
sign=-1
}
beta1=(s_yy-s_xx+sign*sqrt((s_xx-s_yy)^2+4*s_xy^2))/(2*s_xy)
beta0=bar_y-beta1*bar_x

beta0

beta1
