Homework Answers
Add Answer to:

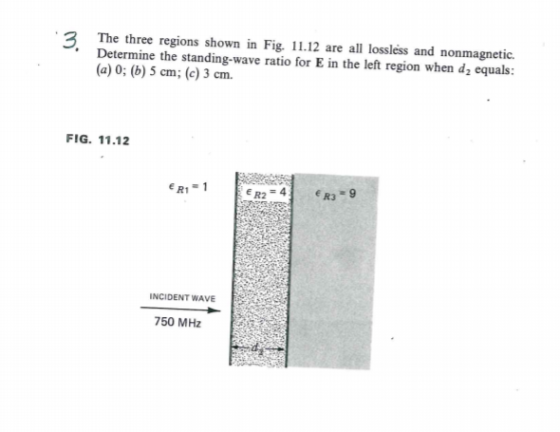

The three regions shown in Fig. 11.12 are all lossless and nonmagnetic. 'Determine the standing-wave ratio...

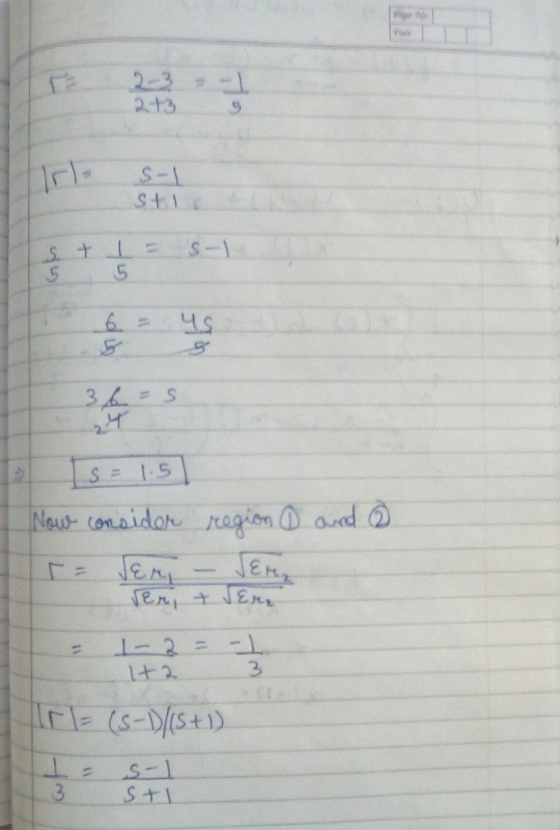

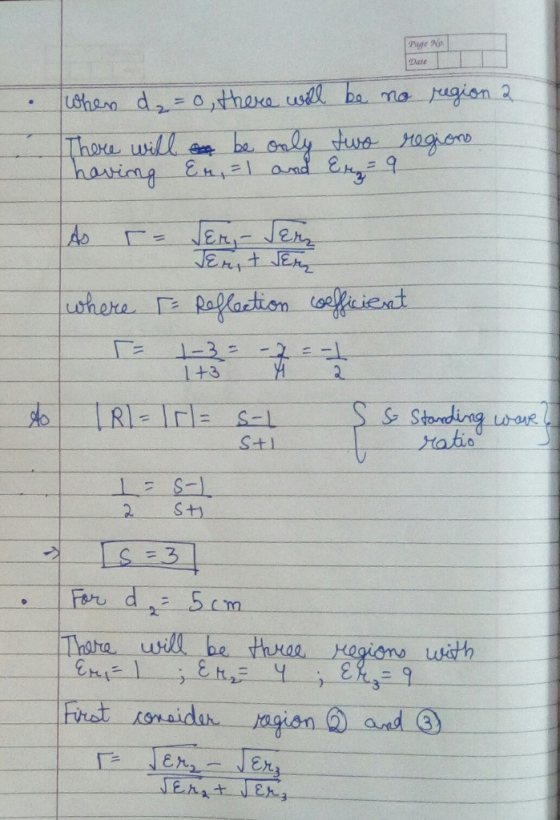

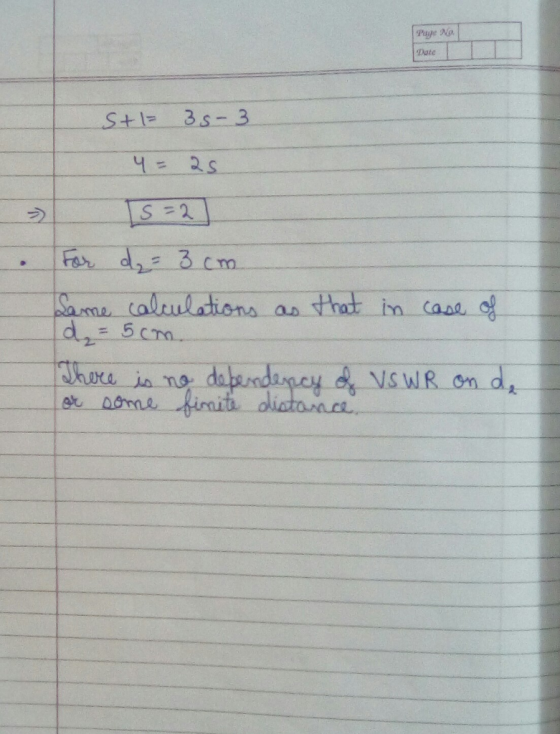

1. The magnetic field of a wave propagating through a certain nonmagnetic material is given by...
1. The magnetic field of a wave propagating through a certain nonmagnetic material is given by H-x30cos(10%-0. Sy) (mA/m) Find the following: (a) The direction of wave propagation. (b) The phase velocity (c) The wavelength in the material. (d) The relative permittivity of the material (e) The electric field phasor 2. A 60-MHz plane wave traveling in the -x-direction in dry soil with relative permittivity &4 has an electric field polarized along the z-direction. Assuming dry soil to be approximately...
Please answer all parts. Thank you! (25 points) A half wavelength long 50 Ohm transmission line is terminated with a load of 100 Ohm. The voltage across the load is 16V 2. Determine standing wave rat...
Please answer all parts. Thank you!
(25 points) A half wavelength long 50 Ohm transmission line is terminated with a load of 100 Ohm. The voltage across the load is 16V 2. Determine standing wave ratio on the transmission line. Determine the incident voltage and reflected voltage at the load. Determine the incident current and reflected current a quarter wavelength away from the load. Determine the wave impedance a quarter wavelength away from the load. Design a matching network to...
+12V 0. RI 34 kn a) Determine the feedback topology of the feedback amplifier shown above...
+12V 0. RI 34 kn a) Determine the feedback topology of the feedback amplifier shown above if the o t is taken from the collector node of Qs You must justifylexplain your answer below for full credit. [3 pts.) b) Determine the feedback topology of the feedback amplifier shown above if the output is taken from the emitter node of You must justify/explain your answer below for full credit. [3 pts.] CT For the circuit described in part (b), draw...
answer all Q pls 8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direct...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
Question 4 to 11 plz Dr? Standing Waves on a String Physics Topics If necessary, review...
Question 4 to 11 plz Dr?
Standing Waves on a String Physics Topics If necessary, review the following topics and relevant textbook sections from Serway / Jewett "Physics for Scientists and Engineers", 9th Ed. • Mathematics of Traveling Waves (Serway 17.2) • Speed of Waves on a String (Serway 17.3) • Superposition of Waves (Serway 18.1) • Standing Waves on a string (Serway 18.2, 18.3) Introduction Imagine two sinusoidal traveling waves with equal amplitudes and frequencies moving in opposite directions....
please give me the answer to all of them thank you 8. -0 points My Notes...
please give me the answer
to all of them
thank you
8. -0 points My Notes Ask Your Teacher A particle with a mass of 0.340 kg is attached to a horizontal spring with a force constant of 3.0ō N m At the moment t moving to the left. (Assume that the positive direction is to the right.) 0 the partice has s maximum speed of 75ms and s (a) Determine the particle's equation of motion, specifying its position as...
please answer all questions A proton and an electron enter a uniform magnetic field. The velocity...
please answer all questions
A proton and an electron enter a uniform magnetic field. The velocity vector of each particle is perpendicular to the magnetic field. If their circular orbits have the same radii, what is the ratio of their speeds (Velectron/ proton)? O 5.5E-4 O 0.5 O 1.0 04.0 1800 A horizontal length of current-carrying wire is suspended from two identical flexible leads that are under tension due to the weight of the wire. The wire is oriented at...
question 4-7 4. Travelling Waves and Their Characteristics A rope wave travels in the positive x -direction. You are also told that the speed of the wave is 1000 cm/s, its frequency is 200 H...
question 4-7
4. Travelling Waves and Their Characteristics A rope wave travels in the positive x -direction. You are also told that the speed of the wave is 1000 cm/s, its frequency is 200 Hz, and that the wave is subject to the following initial conditions: at x 0 and t = 0: y =-1 cm, and, at x = 0 and t : ar = +20 cm/s (this is the velocity of the point on the rope at horizontal...
please give me answers to all the questions and i would really appreciate that thank you...
please give me answers to all the questions and i would really
appreciate that
thank you
6. -0 points My Notes O Ask Your Teache A 10.1 kg object oscillates at the end of a vertical spring that has a spring constant of 2.20 x 104 N/m. The effect of air resistance is represented by the damping coefficient b = 3.00 N-s/m (a) Calculate the frequency of the dampened oscillation. H2 (b) By what percentage does the amplitude of the...
PLEASE ANSWER ALL OF THE QUESTIONS Question 1 1 pts Each of three objects has a...
PLEASE ANSWER ALL OF THE QUESTIONS
Question 1 1 pts Each of three objects has a net charge. Objects A and B repel each other. Objects B and C attract each other. Which one of the following table entries is a possible combination of the signs of the net charges on these three objects? A B с (1) + + - + (2) + + (3) (4) - (5) + - 0 1) 3) 0 (3) and (5) O (1)...
1. The magnetic field of a wave propagating through a certain nonmagnetic material is given by H-x30cos(10%-0. Sy) (mA/m) Find the following: (a) The direction of wave propagation. (b) The phase velocity (c) The wavelength in the material. (d) The relative permittivity of the material (e) The electric field phasor 2. A 60-MHz plane wave traveling in the -x-direction in dry soil with relative permittivity &4 has an electric field polarized along the z-direction. Assuming dry soil to be approximately...
Please answer all parts. Thank you!
(25 points) A half wavelength long 50 Ohm transmission line is terminated with a load of 100 Ohm. The voltage across the load is 16V 2. Determine standing wave ratio on the transmission line. Determine the incident voltage and reflected voltage at the load. Determine the incident current and reflected current a quarter wavelength away from the load. Determine the wave impedance a quarter wavelength away from the load. Design a matching network to...
+12V 0. RI 34 kn a) Determine the feedback topology of the feedback amplifier shown above if the o t is taken from the collector node of Qs You must justifylexplain your answer below for full credit. [3 pts.) b) Determine the feedback topology of the feedback amplifier shown above if the output is taken from the emitter node of You must justify/explain your answer below for full credit. [3 pts.] CT For the circuit described in part (b), draw...
answer all Q pls
8. A bar magnet is dropped through a loop of copper wire as shown. Recall that ou magnet, magnetic field lines point away from a north pole and toward a south p positive direction of the induced current I in the loop is as shown by the arrows on the loop, the variation of I with time as the bar magnet falls through th by which of the following graphs (the time when the midpoint of...
Question 4 to 11 plz Dr?
Standing Waves on a String Physics Topics If necessary, review the following topics and relevant textbook sections from Serway / Jewett "Physics for Scientists and Engineers", 9th Ed. • Mathematics of Traveling Waves (Serway 17.2) • Speed of Waves on a String (Serway 17.3) • Superposition of Waves (Serway 18.1) • Standing Waves on a string (Serway 18.2, 18.3) Introduction Imagine two sinusoidal traveling waves with equal amplitudes and frequencies moving in opposite directions....
please give me the answer
to all of them
thank you
8. -0 points My Notes Ask Your Teacher A particle with a mass of 0.340 kg is attached to a horizontal spring with a force constant of 3.0ō N m At the moment t moving to the left. (Assume that the positive direction is to the right.) 0 the partice has s maximum speed of 75ms and s (a) Determine the particle's equation of motion, specifying its position as...
please answer all questions
A proton and an electron enter a uniform magnetic field. The velocity vector of each particle is perpendicular to the magnetic field. If their circular orbits have the same radii, what is the ratio of their speeds (Velectron/ proton)? O 5.5E-4 O 0.5 O 1.0 04.0 1800 A horizontal length of current-carrying wire is suspended from two identical flexible leads that are under tension due to the weight of the wire. The wire is oriented at...
question 4-7
4. Travelling Waves and Their Characteristics A rope wave travels in the positive x -direction. You are also told that the speed of the wave is 1000 cm/s, its frequency is 200 Hz, and that the wave is subject to the following initial conditions: at x 0 and t = 0: y =-1 cm, and, at x = 0 and t : ar = +20 cm/s (this is the velocity of the point on the rope at horizontal...
please give me answers to all the questions and i would really
appreciate that
thank you
6. -0 points My Notes O Ask Your Teache A 10.1 kg object oscillates at the end of a vertical spring that has a spring constant of 2.20 x 104 N/m. The effect of air resistance is represented by the damping coefficient b = 3.00 N-s/m (a) Calculate the frequency of the dampened oscillation. H2 (b) By what percentage does the amplitude of the...
PLEASE ANSWER ALL OF THE QUESTIONS
Question 1 1 pts Each of three objects has a net charge. Objects A and B repel each other. Objects B and C attract each other. Which one of the following table entries is a possible combination of the signs of the net charges on these three objects? A B с (1) + + - + (2) + + (3) (4) - (5) + - 0 1) 3) 0 (3) and (5) O (1)...
