Homework Answers
Add Answer to:

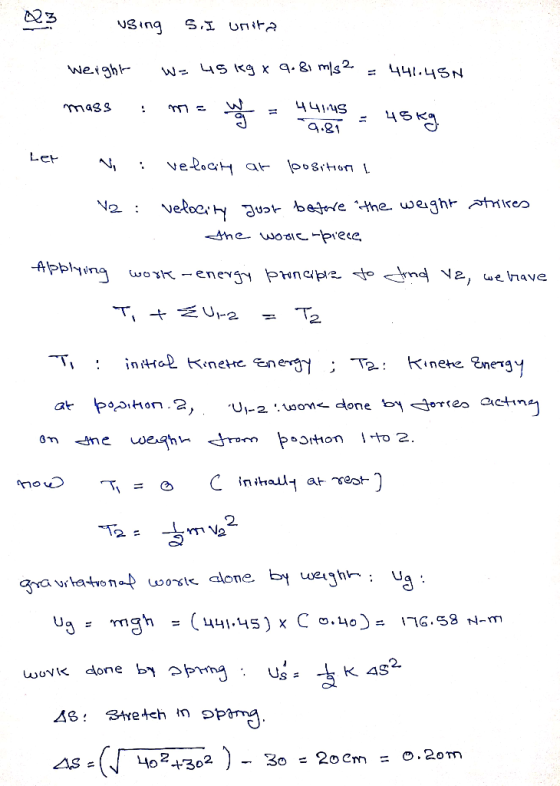

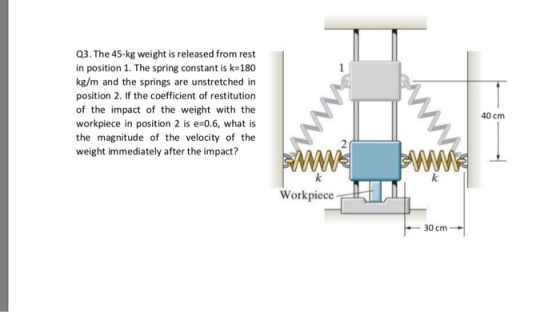

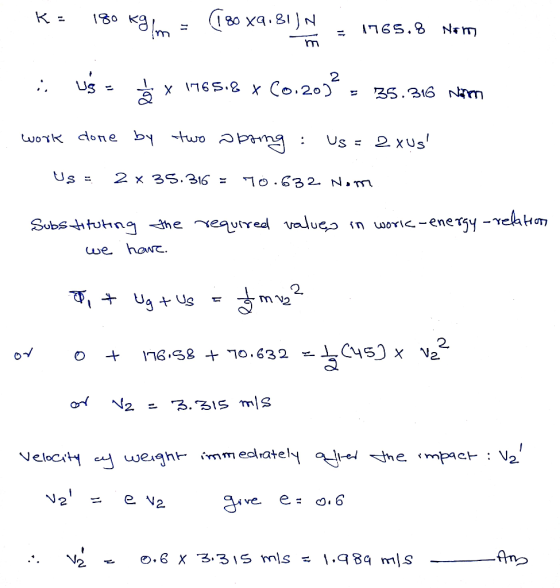

Q3. The 45-kg weight is released from rest in position 1. The spring constant is k-180...
•19–53. The 150-kg bell is at rest in the vertical position before it is struck by...
•19–53. The 150-kg bell is at rest in the vertical position before it is struck by a 37.5-kg wooden post suspended from two equal-length ropes. If the post is released from rest at 0 = 45°, determine the angular velocity of the bell and the velocity of the post immediately after the impact. The coefficient of restitution between the bell and the post is e=0.6. The center of gravity of the bell is located at point G and its radius...
1. (30 points) A 2-kg block A is pushed up against a spring compressing it a distance r-0.1 m (i.e., the spring is unattached to the block). The block is then released from rest and slides down t...
1. (30 points) A 2-kg block A is pushed up against a spring compressing it a distance r-0.1 m (i.e., the spring is unattached to the block). The block is then released from rest and slides down the 20° incline u it strikes a 1-kg sphere B that is suspended from a 1-m inextensible rope. The spring constant 800 N/m, the coefficient of friction between A and the ground i length of the spring d-1.5, and the coefficient of restitution...
(30 Pints) The 10-kg bar is released from the horizontal position when it is rested. The...
(30 Pints) The 10-kg bar is released from the horizontal position when it is rested. The coefficient of restitution between the bar and bumper B is 0.5, and the duration of the impact is 5 ms. Determine the maximum angle of inclination of the bar subsequent to the impact and the average force exerted by the bumper during the impact. (you can assume that g 10 m/s?) 12 m 1.6m (20 Points) The bar AD is 5 kg and 2...
3. A 10 kg block A is released from rest 2 m above the 5 kg...
3. A 10 kg block A is released from rest 2 m above the 5 kg plate P, which can slide freely along the smooth vertical guides BC and DE. The coefficient of restitution between the block and the plate is e 0.75. Determine the veloc 2 ity of the block and the plate just after impact. What is impact? The spring has an unstretched length of 600 m450 mm Ans: A 2.61 m/s, p 7.31 m/s and d 0.32...
a 2 kg block A is pushed up against a spring compressing it a distance x=0.107...
a 2 kg block A is pushed up against a spring compressing it a
distance x=0.107 m. The block is then released from rest and slides
down the 20° incline until it strikes a 1-kg sphere B that is
suspended from a 1 m inextensible rope. The spring constant k=800
N/m, the coefficienct of friction between A and the ground is 0.2,
the distance A slides from the unstretched length of the string is
d=1.5, and the coefficient of restitution...
The 1.5 kg ball A is released from rest from a height. As it descend hits a...
The 1.5 kg ball A is released from rest from
a height. As it
descend hits a solid wall. If the coefficient of restitution is
0.85 determine : rebound height after
the impact and angular velocity for a 30° angle respect the release
position (the horizontal)
Wall
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in...
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
A rod of length 1.5 m is attached to a spring of spring constant, k as...
A rod of length 1.5 m is attached to a spring of spring constant, k as shown in Fig. II-1. The rod is released from rest when 0 = 0°. While reaching the position 0 = 90°, the angular velocity of the rod was 2.32 rad/s. If the mass of the rod is m kg, determine the value of the spring constant, k. Assume that the spring is unstretched when 0–0°. Take the mass of the rod (m) as 49kg...
A rod of length 1.5 m is attached to a spring of spring constant, k as...
A rod of length 1.5 m is attached to a spring of spring constant, k as shown in Fig. II-1. The rod is released from rest when 0 = 0°. While reaching the position 0 = 90°, the angular velocity of the rod was 2.32 rad/s. If the mass of the rod is m kg, determine the value of the spring constant, k. Assume that the spring is unstretched when 0–0°. Take the mass of the rod (m) as 49kg...
The weight W = 5 lb, the spring constant is k = 5 lb/ft, and the...
The weight W = 5 lb, the spring constant is k = 5 lb/ft, and the damping constant is c = 0.55 lb-s/fl The spring is unstretched when x = 0. The mass is displaced to the position x = 3 ft and released from rest. (a) What is the natural frequency and damping of the system? (b) If the damping is subcritical what is the frequency of the resulting damped vibrations?
•19–53. The 150-kg bell is at rest in the vertical position before it is struck by a 37.5-kg wooden post suspended from two equal-length ropes. If the post is released from rest at 0 = 45°, determine the angular velocity of the bell and the velocity of the post immediately after the impact. The coefficient of restitution between the bell and the post is e=0.6. The center of gravity of the bell is located at point G and its radius...
1. (30 points) A 2-kg block A is pushed up against a spring compressing it a distance r-0.1 m (i.e., the spring is unattached to the block). The block is then released from rest and slides down the 20° incline u it strikes a 1-kg sphere B that is suspended from a 1-m inextensible rope. The spring constant 800 N/m, the coefficient of friction between A and the ground i length of the spring d-1.5, and the coefficient of restitution...
(30 Pints) The 10-kg bar is released from the horizontal position when it is rested. The coefficient of restitution between the bar and bumper B is 0.5, and the duration of the impact is 5 ms. Determine the maximum angle of inclination of the bar subsequent to the impact and the average force exerted by the bumper during the impact. (you can assume that g 10 m/s?) 12 m 1.6m (20 Points) The bar AD is 5 kg and 2...
3. A 10 kg block A is released from rest 2 m above the 5 kg plate P, which can slide freely along the smooth vertical guides BC and DE. The coefficient of restitution between the block and the plate is e 0.75. Determine the veloc 2 ity of the block and the plate just after impact. What is impact? The spring has an unstretched length of 600 m450 mm Ans: A 2.61 m/s, p 7.31 m/s and d 0.32...
a 2 kg block A is pushed up against a spring compressing it a
distance x=0.107 m. The block is then released from rest and slides
down the 20° incline until it strikes a 1-kg sphere B that is
suspended from a 1 m inextensible rope. The spring constant k=800
N/m, the coefficienct of friction between A and the ground is 0.2,
the distance A slides from the unstretched length of the string is
d=1.5, and the coefficient of restitution...
The 1.5 kg ball A is released from rest from
a height. As it
descend hits a solid wall. If the coefficient of restitution is
0.85 determine : rebound height after
the impact and angular velocity for a 30° angle respect the release
position (the horizontal)
Wall
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
A rod of length 1.5 m is attached to a spring of spring constant, k as shown in Fig. II-1. The rod is released from rest when 0 = 0°. While reaching the position 0 = 90°, the angular velocity of the rod was 2.32 rad/s. If the mass of the rod is m kg, determine the value of the spring constant, k. Assume that the spring is unstretched when 0–0°. Take the mass of the rod (m) as 49kg...
A rod of length 1.5 m is attached to a spring of spring constant, k as shown in Fig. II-1. The rod is released from rest when 0 = 0°. While reaching the position 0 = 90°, the angular velocity of the rod was 2.32 rad/s. If the mass of the rod is m kg, determine the value of the spring constant, k. Assume that the spring is unstretched when 0–0°. Take the mass of the rod (m) as 49kg...
The weight W = 5 lb, the spring constant is k = 5 lb/ft, and the damping constant is c = 0.55 lb-s/fl The spring is unstretched when x = 0. The mass is displaced to the position x = 3 ft and released from rest. (a) What is the natural frequency and damping of the system? (b) If the damping is subcritical what is the frequency of the resulting damped vibrations?
