please solve it quickly and
clearly

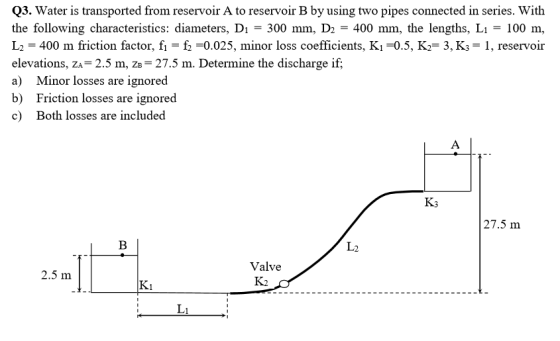

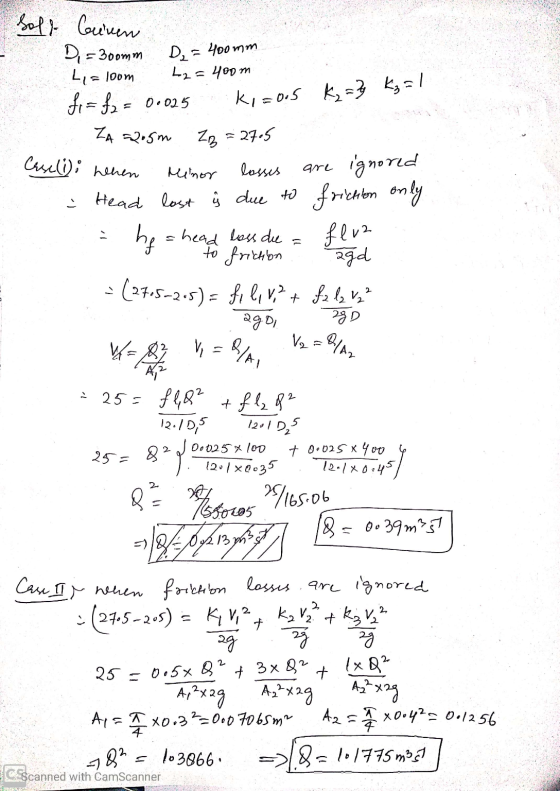

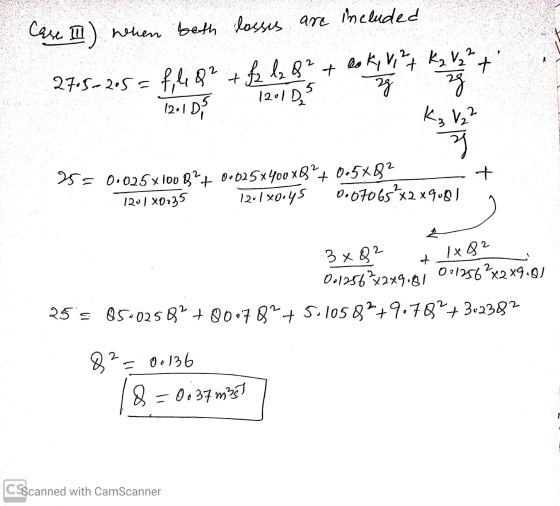

Q3. Water is transported from reservoir A to reservoir B...
A pipeline transfers water from Reservoir A to Reservoir B. The difference in water-surface elevations between...
A pipeline transfers water from Reservoir A to Reservoir B.
The difference in water-surface elevations between the two
reservoirs is 20 m.
The lengths of pipes 1, 2 and 3 are 1500 m, 2000 m, and 2800 m,
respectively.
The diameter of pipe 1 is 200 mm,
The diameter of pipe 2 is 500 mm, and The diameter of pipe pipe
3 is 250 mm.
The Darcy Weisbach friction coefficient of these pipes is
0.0045.
Minor loss coefficients for pipe...
Please post EEs code and handwork The multi-pipe system shown below aims to distribute water (p...
Please post EEs code and handwork
The multi-pipe system shown below aims to distribute water (p = 1000 kg/m3 and u = 0.00089 Pa.s) to three tanks at different elevations ZA ZB, and ZC of 101,30, and 55, respectively by means of gravity. All of the tanks are exposed to atmospheric pressure. Your task is to determine the elevation required in tank A (ZA) to deliver 1 m3/s (in pipe 1). In this project, the minor losses can be neglected...
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then thr...
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then through two pipes (b and c) in parallel. The lengths, diameters and friction factors of the pipes are listed in the table. The water level in Reservoir A is always higher than that in Reservoir B by 20 m. Calculate the total discharge between the reservoirs. Neglect all minor losses. (15 marks) (b) Which of pipes b and...
ME Fluid Mechanics Please Help! Problem 3 Water flows from a large reservoir filled to a...
ME Fluid Mechanics Please Help!
Problem 3 Water flows from a large reservoir filled to a height h into a pipe system that feeds a fountain, as shown in the figure. The pipe system consists of two pipes of radius a, friction factor f and lengths L1 and L2, respectively. The two pipes are connected with a valve that has a loss coefficient k, and a 90% bend that has a loss coefficient kb. Ignore entry losses from the reservoir...
Please show full working so I can understand how to do each step. Thank you in advance! Two reservoirs with their water...
Please show full working so I can understand how to do each
step. Thank you in advance!
Two reservoirs with their water levels 15m apart are connected with two pipes in series. The pipe that leaves the upper reservoir is 200mm diameter, 200m long and has a friction factor of 0.003. This pipe then connects to a 100mm diameter pipe that is 300m long with a friction factor of 0.00146. The fittings to consider are: Sudden entrance from tank to...
ENCE 4322/53222 2. Reservoir A delivers to reservoir B through two uniform pipelines AJ (3000 m...
ENCE 4322/53222 2. Reservoir A delivers to reservoir B through two uniform pipelines AJ (3000 m long) and JB (4000 m long) of diameters 300 mm and 200 mm, respectively. The difference in elevation between the water level in the two reservoirs is 25 m. Just upstream of the change in section, which is assumed gradual (no minor losses), a controlled discharge of 30 L/s is taken off 3000 m 304 Assume kinematic viscosity - 1.14x10m/s, and a pipe effective...
(b) Figure Q3 shows a design of a plumbing system to be used in a new building. Water at 20°C is ...
(b) Figure Q3 shows a design of a plumbing system to be used in a new building. Water at 20°C is free to be pumped from reservoir A to another reservoir B at a higher elevation through two 30 m long pipes connected in parallel on a common elevation level. The difference between the water surface elevations is 10 m. The pipes are made of commercial brass and the diameters of the two pipes are 4 cm and 8 cm....
Water is slowly drained from a large reservoir using two horizontal plastic pipes connected in series....
Water is slowly drained from a large reservoir using two horizontal plastic pipes connected in series. The pipes are smooth and located at the bottom of the reservoir, as shown below. The first pipe has a diameter D1 = 10 cm and length L1 = 10 m, while the second pipe has a diameter D2 = 5 cm and a length L2 = 40 m (see schematic below). The water level in the reservoir is constant and equal to H...
1. Water is pumped from a low reservoir to a high reservoir that is 20 m...
1. Water is pumped from a low reservoir to a high reservoir that is 20 m higher in elevation. The water is flowing at 1.5 m/s through a 305 mm internal diameter piping system. The water is at 18 degrees C. There are 1,000 m of piping, six standard 45 degree bends, two standard 90 degree bends, a branch flow tee, three gate valves, a swing check valve, a square inlet and a square outlet. The piping and valves are...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
A pipeline transfers water from Reservoir A to Reservoir B.
The difference in water-surface elevations between the two
reservoirs is 20 m.
The lengths of pipes 1, 2 and 3 are 1500 m, 2000 m, and 2800 m,
respectively.
The diameter of pipe 1 is 200 mm,
The diameter of pipe 2 is 500 mm, and The diameter of pipe pipe
3 is 250 mm.
The Darcy Weisbach friction coefficient of these pipes is
0.0045.
Minor loss coefficients for pipe...
Please post EEs code and handwork
The multi-pipe system shown below aims to distribute water (p = 1000 kg/m3 and u = 0.00089 Pa.s) to three tanks at different elevations ZA ZB, and ZC of 101,30, and 55, respectively by means of gravity. All of the tanks are exposed to atmospheric pressure. Your task is to determine the elevation required in tank A (ZA) to deliver 1 m3/s (in pipe 1). In this project, the minor losses can be neglected...
39. (a) Water flows under gravity from Reservoir A to Reservoir B first through a 900-m long pipe (pipe a) and then through two pipes (b and c) in parallel. The lengths, diameters and friction factors of the pipes are listed in the table. The water level in Reservoir A is always higher than that in Reservoir B by 20 m. Calculate the total discharge between the reservoirs. Neglect all minor losses. (15 marks) (b) Which of pipes b and...
ME Fluid Mechanics Please Help!
Problem 3 Water flows from a large reservoir filled to a height h into a pipe system that feeds a fountain, as shown in the figure. The pipe system consists of two pipes of radius a, friction factor f and lengths L1 and L2, respectively. The two pipes are connected with a valve that has a loss coefficient k, and a 90% bend that has a loss coefficient kb. Ignore entry losses from the reservoir...
Please show full working so I can understand how to do each
step. Thank you in advance!
Two reservoirs with their water levels 15m apart are connected with two pipes in series. The pipe that leaves the upper reservoir is 200mm diameter, 200m long and has a friction factor of 0.003. This pipe then connects to a 100mm diameter pipe that is 300m long with a friction factor of 0.00146. The fittings to consider are: Sudden entrance from tank to...
ENCE 4322/53222 2. Reservoir A delivers to reservoir B through two uniform pipelines AJ (3000 m long) and JB (4000 m long) of diameters 300 mm and 200 mm, respectively. The difference in elevation between the water level in the two reservoirs is 25 m. Just upstream of the change in section, which is assumed gradual (no minor losses), a controlled discharge of 30 L/s is taken off 3000 m 304 Assume kinematic viscosity - 1.14x10m/s, and a pipe effective...
(b) Figure Q3 shows a design of a plumbing system to be used in a new building. Water at 20°C is free to be pumped from reservoir A to another reservoir B at a higher elevation through two 30 m long pipes connected in parallel on a common elevation level. The difference between the water surface elevations is 10 m. The pipes are made of commercial brass and the diameters of the two pipes are 4 cm and 8 cm....
Water is slowly drained from a large reservoir using two horizontal plastic pipes connected in series. The pipes are smooth and located at the bottom of the reservoir, as shown below. The first pipe has a diameter D1 = 10 cm and length L1 = 10 m, while the second pipe has a diameter D2 = 5 cm and a length L2 = 40 m (see schematic below). The water level in the reservoir is constant and equal to H...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
