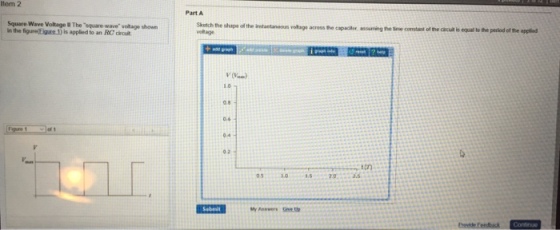

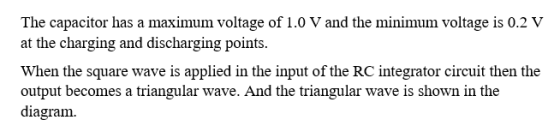

Square-Wave Voltage II The "square-wave" voltage shown in the figure (Figure 1) is applied to an...
Q1: Consider the RC circuit shown below, which is being driven by a function generator supplying a voltage of Vin(t), as shown in the figure next to the circuit Sketch the voltage that would be measured across the 10 microfarad capacitor. Assume that the period of the input square wave is several times longer than the time constant RC. 1 k 2 A voltage KAW function generator 10 MF time
12. A series RC circuit is driven by a periodic square wave voltage V(t) with a period T=0.3 sec. V(t) 0 for t<0. After t=0, the voltage alternates between 15 V and 0 V. Assume that R-40 , C 150 HF. We will call the voltage across the capacitor and the resistor Ve(t) and Vr(t) respectively (c) The capacitor above is now replaced by an inductor whose inductance is 0.24 H. We call the voltage across the inductor VL(t) Calculate...
12. A series RC circuit is driven by a periodic square wave voltage V(t) with a period T=0.3 sec. V(t)0 for t<0. After t=0, the voltage alternates between 15 V and 0 V. Assume that R-40 , C-150 HF. We will call the voltage across the capacitor and the resistor Ve(t and Vr(t) respectively (a) Calculate the current I(t) in the circuit, the voltage Vc(t), and the power delivered by the driving source as a function of time for the...
Objectives: To learn transient behavior of series RC circuits To observe of time constant and its effect on charging process of capacitor using pulse waveforms Equipment: Oscilloscope Function generator Resistors (1 k) Capacitors (1 uF) Breadboard Pre-Lab Questions A pulse is a voltage or current that changes from one level to the other and back again. If a waveform's high time equals its low time, it is called a square wave. The length of each cycle (one positive peak and...
1. Sketch a graph of voltage vs. frequency for what you expect to see for voltage magnitude across a capacitor for a sine wave of increasing frequency in a simple RC circuit. 2. Sketch a graph of voltage vs. frequency for what you expect to see for voltage magnitude across an inductor for a sine wave of increasing frequency in a simple RL circuit.
Question 2: (10 points) In the full rectifier circuit shown, the input is a sine wave with a frequency of 50 Hz and an amplitude of 6 V. 1 For this circuit, sketch on the figure below the output voltage across the resistor R assuming ideal diodes. Show the time scale on the figure. Sketch also on the same figure a typical output when a capacitor is placed in parallel with the resistor. vou TOU to ts. ti to 0.00...
5. [RC Circuits] Consider the circuit shown in Figure 5 attached. As shown, the switch is in position "A" for t < 0, and the circuit has been at rest for a long time. At time t = 0, the switch opens and the capacitor starts to drain across the resistor. (a) When the switch is closed and there is only a direct current (DC) source, the capacitor acts like an open circuit. Find the constant voltage across the capacitor...
Figure 3. Variable RC circuit A variable time constant circuit is shown above. The potentiometer (R2) can change its resistance from 0 Ohms to 750 Ohms. R1 has a fixed value of 70 Ohms. The capacitor has a capacitance of 35 pF. a) Use the supplied MATLAB™ code Calc RC and function RC_Circ to find the time variation of voltage across the Capacitor, Ve, and the fixed resistor R1 for a steady voltage V1 = 5 Volts which is turned...
instead of 36.8 please use 3.68mA
Find voltage on capacitor shown on Figure 3 as a function of time, if curent from Figure 3 is applied across its terminals. Initial voltage at time-0 is loV pt 1(E) lo t,sec Figure 3
Find voltage on capacitor shown on Figure 3 as a function of time, if curent from Figure 3 is applied across its terminals. Initial voltage at time-0 is loV pt 1(E) lo t,sec Figure 3
Problem 1. For a transient RC circuit: a) Write the equation that relates the voltage across the capacitor to the time for a charging capacitor. Sketch the graph b) Write the equation that relates the voltage across the capacitor to the time for a discharging capacitor. Sketch the graph
