Find reactions using virtual work method and draw BMD & SFD. Pin support at A, Roller...

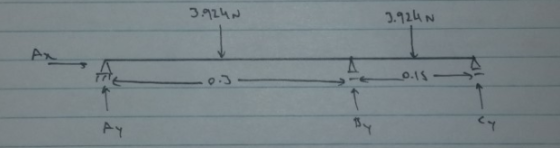

Find reactions using virtual work method and draw BMD & SFD.
Pin support at A, Roller supports at B & C.
Point loads are located in the middle of each member.
Units are in Newtons and Meters.

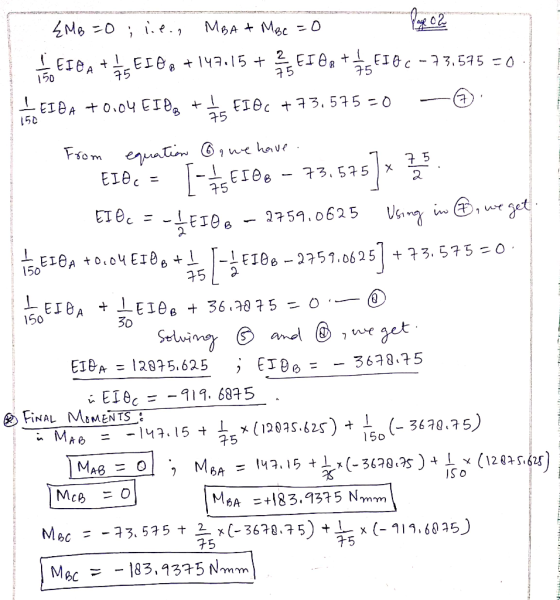

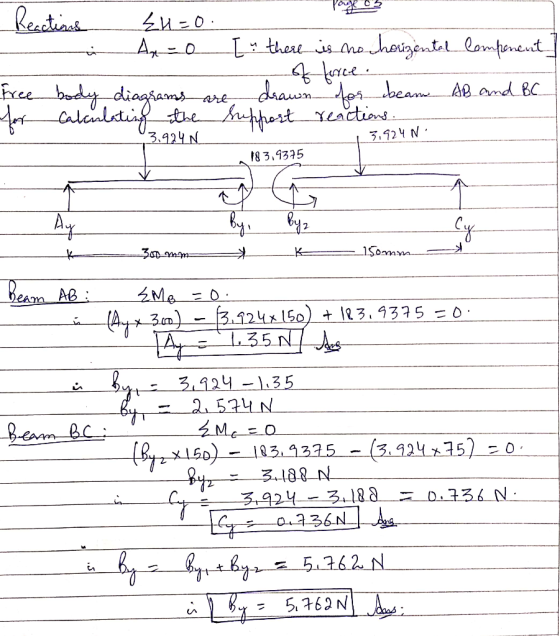

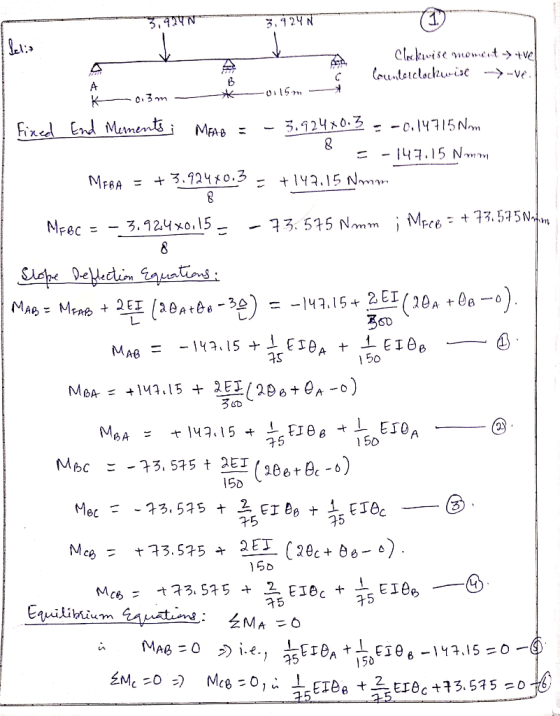

Homework Answers
Add Answer to:
Find reactions using virtual work method and draw BMD &
SFD.
Pin support at A, Roller...
