Design of LCMatching Network

Please show all your work

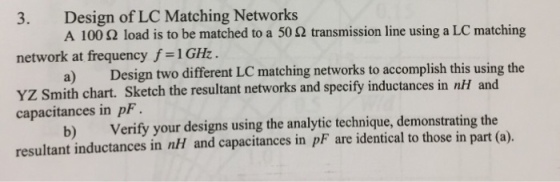

3. Design of LC Matching Networks network at frequency f 1GHz. YZ Smith chart. Sketch the resultant networks and specify inductances in nI and A 100 ? load is to be matched to a 50 ? transmission line using a LC matching a) Design two different LC matching networks to accomplish this using the b) Verify your designs using the analytic technique, demonstrating the capacitances in pF resultant inductances in nH and capacitances in pF are identical to those in part (a).
