Homework Answers
Add Answer to:

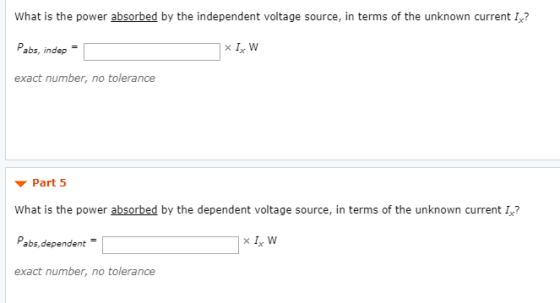

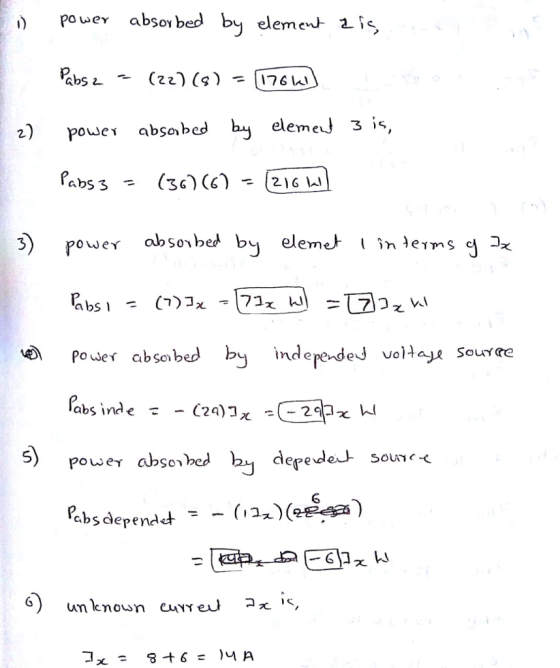

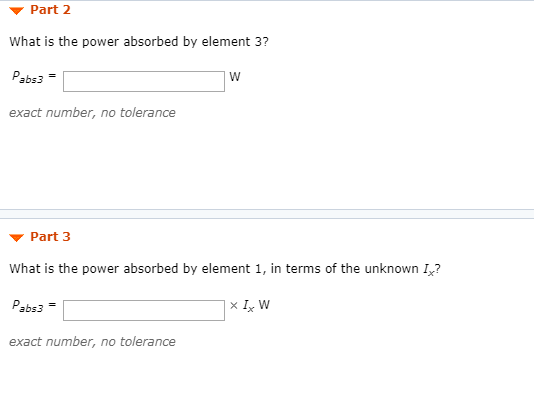

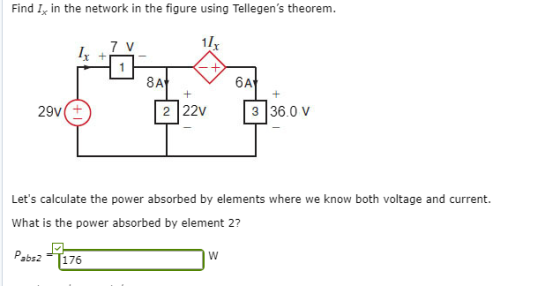

Find I in the network in the figure using Tellegen's theorem. 1I 8 A 6A 29V(t...
I need all the answers please. Thanks If a 15-V battery delivers 72.000 J in 6...
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
1.32 Find the power that is absorbed or supplied by the network elements in Fig. P1.32 8 V 2 A +21 12 V (+ 2 A 24 V...
1.32 Find the power that is absorbed or supplied by the network elements in Fig. P1.32 8 V 2 A +21 12 V (+ 2 A 24 V 20 V I 2 A 2 A 2 A 2 12 V 2 A Figure P1.32
1.32 Find the power that is absorbed or supplied by the network elements in Fig. P1.32 8 V 2 A +21 12 V (+ 2 A 24 V 20 V I 2 A 2 A 2...
1.19 Find I and the power absorbed by each element in the network of Fig. 1.30....
1.19 Find I and the power absorbed by each element in the network of Fig. 1.30. 8A9v 6 Figure 1.30 For Prob. 1.19. 1.20 Find V, and the power absorbed by each element in the circuit of Fig. 1.31. 1.- 2A 28 V 12 V TIA 28 V 30 V + 6A1 Figure 1.31 For Prob. 1.20.
Find V. in the network in the figure below using Thévenin's theorem. Break the network just...
Find V. in the network in the figure below using Thévenin's theorem. Break the network just to the right of the dependent source, i.e. separate the current source and two resistors on the right from the rest of the network. 2ko 5000 1x zko 6v 7 kg 2 mA 2ko V.
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting...
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting of a voltage source and a series resistor."This means that a circuit such as the one in Figure 1 can be replaced by a power supply and a series resistor, allowing for a quicker analysis of changes in load resistance,(RO) R3 Figure 1 Some of the advantages offered by this theorem are: • It allows the determination of any given voltage or current in...
(a) In the network in the accompanying figure, find i(t) for t > 0. (b) If...
(a) In the network in the accompanying figure,
find i(t) for t > 0.
(b) If
vC1(0–) = – 13 V, calculate
vC2(0–).
Please round all numbers to 3 significant digits.
(a) In the network in the accompanying figure, find i(t) fort > 0. (b) If Vc1(0-) = - 13 V, calculate vc2(0-). + °C (t) HE 0.8 F + 13e-5łu(t) v 0.2Fvc2(t) Please round all numbers to 3 significant digits. (a) i(t) = *e Edit A (b) Vc2(0-) =...
Chapter 5, Problem 5.036 Find Io in the network in the figure below using Thévenin's theorem....
Chapter 5, Problem 5.036 Find Io in the network in the figure below using Thévenin's theorem. Break the network at the 5k Ohm resistor containing Io. 7 KO 5 mA 8 kn +8 V 3 mA 5 kn Vth= V Rth = mA Click if you would like to Show Work for this question: Open Show Work
Chapter 5, Problem 5.036 Find Io in the network in the figure below using Thévenin's theorem. Break the network at the 5k Ohm...
Review | Constants The source voltages vgi and vg2 in the circuit in (Figure 1) are...
Review | Constants The source voltages vgi and vg2 in the circuit in (Figure 1) are 12 V and 8 V, respectively Figure 1 of 1 2i 81 8i +82 Find the total power absorbed in the circuit. Express your answer using three significant figures and include the appropriate units. View Available Hint(s) Hint 1. How to determine the power absorbed Determine the currents and voltage drops for all of the circuit elements, and calculate the power associated with each...
Find the power absorbed and energy absorbed for the circuit element in Figure 9.7 if: A...
Find the power absorbed and energy absorbed for the
circuit element in Figure 9.7 if:
A a / Circuit Element BO FIGURE 9.7 Voltage and current convention. We were unable to transcribe this image(b) 잇 N 성 °
Question 1 Given the network in the figure below, find (a) the power supplied by the...
Question 1 Given the network in the figure below, find (a) the power supplied by the source and the average power absorbed by each element (b) 9-2 resistor, (c) 2-2 resistor, (d) inductor, (e) capacitor. 4/30° A 3 0 -ji ? Find the power supplied at t 0 Click if you would like to Show Work for this question: Open Show Work
I need all the answers please. Thanks
If a 15-V battery delivers 72.000 J in 6 s, find (a) the amount of charge delivered and (b) the current produced. (a)TT4.8 (b)To.8 ori We were unable to transcribe this imageChapter 1, Problem 1.11 The charge entering the positive terminal of an element is given by the expression qt)20e5.00t mC. The power delivered to the element is p(t)-9.2e8t w. Compute the current in the element as a function of time, the voltage...
1.32 Find the power that is absorbed or supplied by the network elements in Fig. P1.32 8 V 2 A +21 12 V (+ 2 A 24 V 20 V I 2 A 2 A 2 A 2 12 V 2 A Figure P1.32
1.32 Find the power that is absorbed or supplied by the network elements in Fig. P1.32 8 V 2 A +21 12 V (+ 2 A 24 V 20 V I 2 A 2 A 2...
1.19 Find I and the power absorbed by each element in the network of Fig. 1.30. 8A9v 6 Figure 1.30 For Prob. 1.19. 1.20 Find V, and the power absorbed by each element in the circuit of Fig. 1.31. 1.- 2A 28 V 12 V TIA 28 V 30 V + 6A1 Figure 1.31 For Prob. 1.20.
Find V. in the network in the figure below using Thévenin's theorem. Break the network just to the right of the dependent source, i.e. separate the current source and two resistors on the right from the rest of the network. 2ko 5000 1x zko 6v 7 kg 2 mA 2ko V.
Thevenin's Theorem. "Any two-terminal, linear bilateral DC network can be replaced by an equivalent circuit consisting of a voltage source and a series resistor."This means that a circuit such as the one in Figure 1 can be replaced by a power supply and a series resistor, allowing for a quicker analysis of changes in load resistance,(RO) R3 Figure 1 Some of the advantages offered by this theorem are: • It allows the determination of any given voltage or current in...
(a) In the network in the accompanying figure,
find i(t) for t > 0.
(b) If
vC1(0–) = – 13 V, calculate
vC2(0–).
Please round all numbers to 3 significant digits.
(a) In the network in the accompanying figure, find i(t) fort > 0. (b) If Vc1(0-) = - 13 V, calculate vc2(0-). + °C (t) HE 0.8 F + 13e-5łu(t) v 0.2Fvc2(t) Please round all numbers to 3 significant digits. (a) i(t) = *e Edit A (b) Vc2(0-) =...
Chapter 5, Problem 5.036 Find Io in the network in the figure below using Thévenin's theorem. Break the network at the 5k Ohm resistor containing Io. 7 KO 5 mA 8 kn +8 V 3 mA 5 kn Vth= V Rth = mA Click if you would like to Show Work for this question: Open Show Work
Chapter 5, Problem 5.036 Find Io in the network in the figure below using Thévenin's theorem. Break the network at the 5k Ohm...
Review | Constants The source voltages vgi and vg2 in the circuit in (Figure 1) are 12 V and 8 V, respectively Figure 1 of 1 2i 81 8i +82 Find the total power absorbed in the circuit. Express your answer using three significant figures and include the appropriate units. View Available Hint(s) Hint 1. How to determine the power absorbed Determine the currents and voltage drops for all of the circuit elements, and calculate the power associated with each...
Find the power absorbed and energy absorbed for the
circuit element in Figure 9.7 if:
A a / Circuit Element BO FIGURE 9.7 Voltage and current convention. We were unable to transcribe this image(b) 잇 N 성 °
Question 1 Given the network in the figure below, find (a) the power supplied by the source and the average power absorbed by each element (b) 9-2 resistor, (c) 2-2 resistor, (d) inductor, (e) capacitor. 4/30° A 3 0 -ji ? Find the power supplied at t 0 Click if you would like to Show Work for this question: Open Show Work
