Register-file . Register-file is used as fast temporary storage Write select WA RF RA WE RE...
Register-file . Register-file is used as fast temporary storage Write select WA RF RA WE RE 2"X m Output D Q Input...

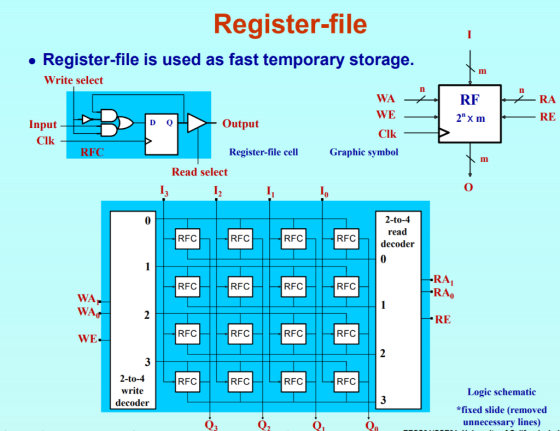

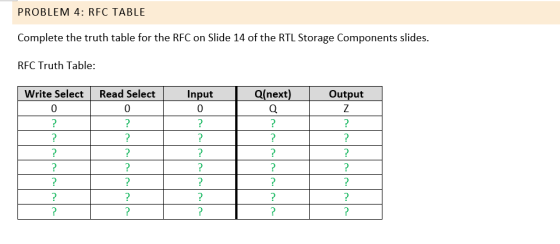

Register-file . Register-file is used as fast temporary storage Write select WA RF RA WE RE 2"X m Output D Q Input Clk Clk RF Register-ile cell Graphic symbol Read select 2-to-4 read RFC RFC RFC RFC decoder RA RFC RFC RFC RFC RA WA WA RE RFC RFC RFC RFC WE 2-to-4 RFC RFC RFC RFC write Logic schematic decode *fixed slide (removed nnecessary lines) PROBLEM 4: RFC TABLE Complete the truth table for the RFC on Slide 14...

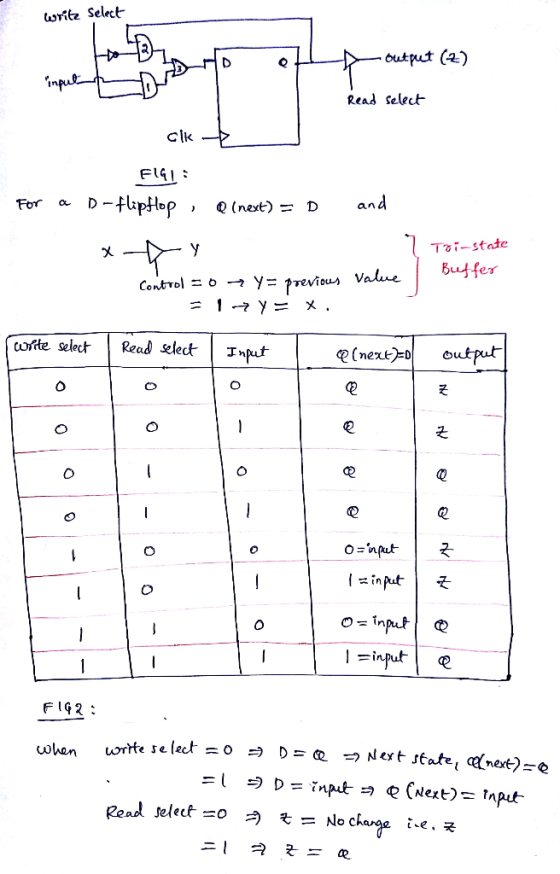

Register File Consider the following register file, that provide one write port and two read ports....
Register File Consider the following register file, that provide one write port and two read ports. A register is updated on the positive edge on the clock if dw=1. Data is written to rd. The two read ports are: rn and rm. typedef logic [15:0] reg16_t; typedef logic [2:0] reg_sel_t; module reg_file( output reg16_t rn, rm, input reg16_t rd, input reg_sel_t n, m, d, input logic dw, reset, clk ); Use behavioural Verilog to implement reg_file. module reg_file( output reg16_t...
Objective: Creating a register file (memory) using Verilog. The register file is made up of four registers and each...
Objective: Creating a register file (memory) using Verilog. The register file is made up of four registers and each register holds one nibble (half a byte, i.e., four bits) 3. Create a D flip-flop AD flip-flop holds 1 bit of data, and it only changes its data when the clock changes. We want a positive edge triggered flip-flop. Design your Verilog D flip-flop, so we will create them now. Enter the 2 to 4 line decoder. We will need two...
In this lab, you will design a finite state machine to control the tail lights of...
In this lab, you will design a finite state machine to control the tail lights of an unsual car. There are three lights on each side that operate in sequence to indicate thedirection of a turn. Figure ! shows the tail lights and Figure 2 shows the flashing sequence for (a) left turns and (b) right rums. ZOTTAS Figure 28:8: BCECECece BCECECECes BCECECECB BCECECBCB 8888 Figure 2 Part 1 - FSM Design Start with designing the state transition diagram for...
Edit a C program based on the surface code(which is after the question's instruction.) that will...
Edit a C program based on the surface code(which is after the question's instruction.) that will implement a customer waiting list that might be used by a restaurant. Use the base code to finish the project. When people want to be seated in the restaurant, they give their name and group size to the host/hostess and then wait until those in front of them have been seated. The program must use a linked list to implement the queue-like data structure....
Register-file . Register-file is used as fast temporary storage Write select WA RF RA WE RE 2"X m Output D Q Input Clk Clk RF Register-ile cell Graphic symbol Read select 2-to-4 read RFC RFC RFC RFC decoder RA RFC RFC RFC RFC RA WA WA RE RFC RFC RFC RFC WE 2-to-4 RFC RFC RFC RFC write Logic schematic decode *fixed slide (removed nnecessary lines) PROBLEM 4: RFC TABLE Complete the truth table for the RFC on Slide 14...
Objective: Creating a register file (memory) using Verilog. The register file is made up of four registers and each register holds one nibble (half a byte, i.e., four bits) 3. Create a D flip-flop AD flip-flop holds 1 bit of data, and it only changes its data when the clock changes. We want a positive edge triggered flip-flop. Design your Verilog D flip-flop, so we will create them now. Enter the 2 to 4 line decoder. We will need two...
In this lab, you will design a finite state machine to control the tail lights of an unsual car. There are three lights on each side that operate in sequence to indicate thedirection of a turn. Figure ! shows the tail lights and Figure 2 shows the flashing sequence for (a) left turns and (b) right rums. ZOTTAS Figure 28:8: BCECECece BCECECECes BCECECECB BCECECBCB 8888 Figure 2 Part 1 - FSM Design Start with designing the state transition diagram for...
