Question

The following array is not a heap.

22,15,16,14,11,13,7,10,18,2,9,8,4

After calling MAX-HEAPIFY to correct that violation, the resulting array will be a heap. Show it in array form:

Answer 1

A Binary Heap is a complete binary tree which is either Min Heap or Max Heap. In a Max Binary Heap, the key at the root must be maximum among all keys present in Binary Heap. This property must be recursively true for all nodes in Binary Tree.

{22,15,16,14,11,13,7,10,18,2,9,8,4} this given array is not a heap,so when we calling MAX-HEAPIFY function that will make given array to max-heap.

There are many possible max heap for {22,15,16,14,11,13,7,10,18,2,9,8,4}
some are:-
{22, 18, 16, 15, 11, 13, 7, 10, 14, 2, 9, 8, 4}
{22, 18, 16, 15, 14, 11, 13, 7, 10, 2, 9, 8, 4 }

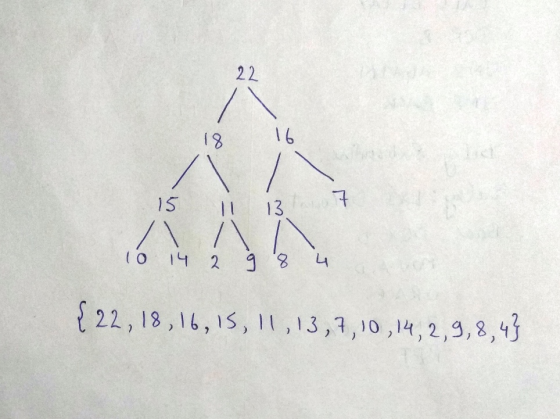

22 18 \Ь 15 11 13 + // To 19 2 93 { 22 , 18, 10, 15, 1, 13, 1, 10, 11, 2, 3, 8,43

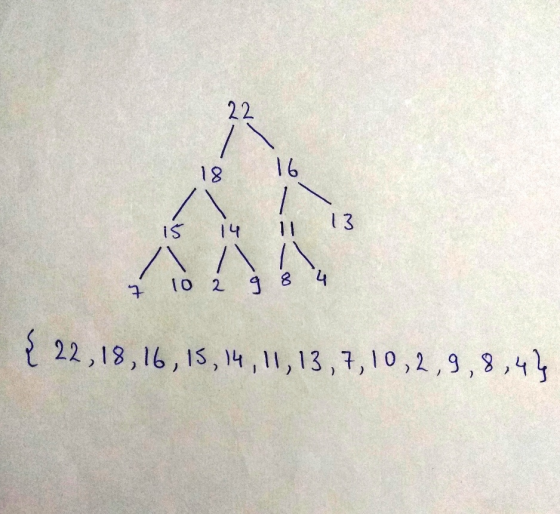

22 18 16 . 13 15 11 3 14 7 10 2 ġ 8 4 { 22,18,16,15,14,11,13,7,10,2,9,8,45
