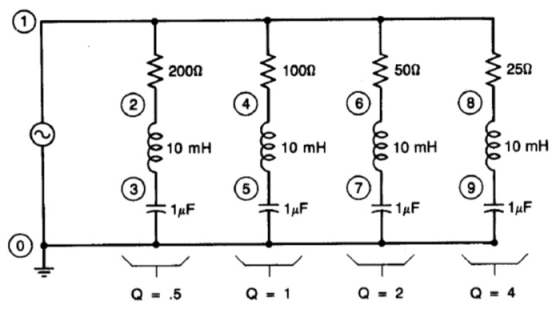

write netlist script of this circuit (any spice program)
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

V1 1 0 value v (here value will be replace by given input voltage )

R1 1 2 200 ohm

L1 2 3 10 mH

C1 3 0 1 uF

R2 1 4 100 ohm

L2 4 5 10 mH

C2 5 0 1 uF

R3 1 6 50 ohm

L3 6 7 10 mH

C3 7 0 1 uF

R4 1 8 50 ohm

L4 8 9 10 mH

C4 9 0 1 uF

.AC lin 1 Freq Freq ( put the value of given freq at place of Freq)
