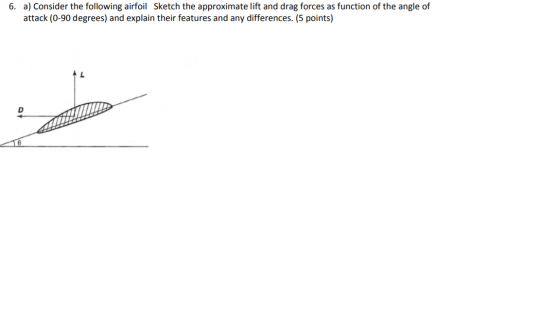

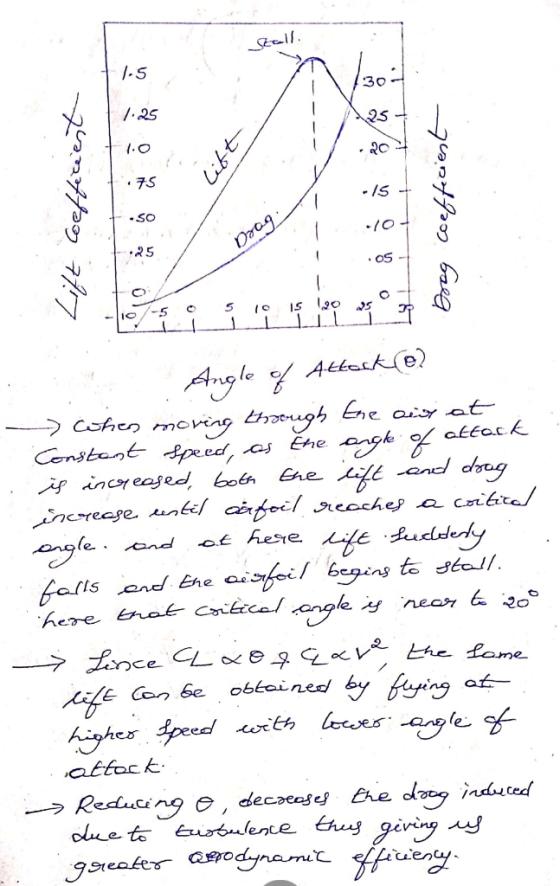

6. a) Consider the following airfoil Sketch the approximate lift and drag forces as function of...
Problem 2 (20 points) The measured lift slope for a new airfoil is 0.0975 degree, with...
Problem 2 (20 points) The measured lift slope for a new airfoil is 0.0975 degree, with ac o =-1.15º. Consider a finite wing using this airfoil, with AR of 10 and taper ratio of 0.6. Calculate the lift and induced drag coefficients for this wing at a geometric angle of attack of 9º. Also, find the span efficiency factor. Hint: See Eq. (5.70) and Fig. 5.20. Are the values of lift and induced drag coefficients reasonable? Use 8 =1.
The measured lift slope for a new airfoil is 0.0975 degree-1, with al=0 =-1.15º. Consider a...
The measured lift slope for a new airfoil is 0.0975 degree-1, with al=0 =-1.15º. Consider a finite wing using this airfoil, with AR of 10 and taper ratio of 0.6. Calculate the lift and induced drag coefficients for this wing at a geometric angle of attack of 9º. Also, find the span efficiency factor. Hint: See Eq. (5.70) and Fig. 5.20. Are the values of lift and induced drag coefficients reasonable? do a = (5.70) 1 + (ao/A AR)(1 +...
Question 3-Concept Questions (10 points) a) What is the reason for having surface dimples (roughness) on a golf ball? Explain in 2-3 sentences. b) Draw the variation of lift and drag coefficients...
Question 3-Concept Questions (10 points) a) What is the reason for having surface dimples (roughness) on a golf ball? Explain in 2-3 sentences. b) Draw the variation of lift and drag coefficients for a subsonic airfoil (at high Re number) over a Mach number range of 0.1-1.1. Explain the reason for trends Specify the primary drag mechanism for the following shapes in airstream at different Mach c) numbers. a. Symmetrical airfoil at an angle of attack of 4 degrees at...
Q1. Draw the Lift coefficient vs. angle of attack for the following airfoils. Q2. Explain the fun...
Q1. Draw the Lift coefficient vs. angle of attack for the following airfoils. Q2. Explain the fundamental difference(s) between a 2D wing and a finite length wing. Q3. An experimental thin airfoil has the following characteristics: ic) zero-lift at -2 degrees angle of attack. stall angle 13 degrees angle of attack. What is the lift at an angle of attack of zero degrees? . What is the maximum lift coefficient?
Q1. Draw the Lift coefficient vs. angle of attack for...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
use matlab to solve 4. The following formulas are commonly used by engineers to predict the...
use
matlab to solve
4. The following formulas are commonly used by engineers to predict the lift and drag of an airfoil: L 30,8V2, 3PCSV? D where L and D are the lift and drag forces, V is the airspeed, S is the wing span, p is the air density, and C & Co are the lift and drag coefficients, which are polynomial expressions that depend on the attack angle, a. A wind tunnel experiment for a particular airfoil has...
use a Reynolds number of 2.6x10^5 to find using graphs 2. Consider an NACA 23015 airfoil...
use a Reynolds number of 2.6x10^5 to find using
graphs
2. Consider an NACA 23015 airfoil (Fig 5.2a and 5.2b in text) with a chord of 0.64 m in an airstream 1000m above sea level conditions. The freestream velocity is 70 m/s. The lift per unit span is 1200 N/m. Calculate the angle of attack and the drag per unit span. (See example 4.1) CHAPTER S incompressible Flow over Finite Wings Section lift coefficient - Moment coefficient, -20 -32 -24...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow just outside the boundary layer if the freestream speed Vo = 120 m/s? • What is the local Mach number at this point if the altitude is 12 km? • What is the approximate value of C, for these conditions? Ans: V = 204.35 m/s, M = 0.693, CL ~ 1.15. -1.00 .. .... -0.50 .... ..... 0 0.1 0.2 0.3 0.4 0.5 0.6...
Sketch the graph of the function f(x) - (2-6)(x+3) 9(2+2) A sketch need not be exact...
Sketch the graph of the function f(x) - (2-6)(x+3) 9(2+2) A sketch need not be exact or to scale! A sketch does need to show important points and features of the graph: intervals on which the function is increasing/decreasing, concavity, points at which local and absolute max, and min. values occur, inflection points, intercepts, vertical and horizontal asymptotes, and any other features particular to the particular function,
Problem 2 (20 points) The measured lift slope for a new airfoil is 0.0975 degree, with ac o =-1.15º. Consider a finite wing using this airfoil, with AR of 10 and taper ratio of 0.6. Calculate the lift and induced drag coefficients for this wing at a geometric angle of attack of 9º. Also, find the span efficiency factor. Hint: See Eq. (5.70) and Fig. 5.20. Are the values of lift and induced drag coefficients reasonable? Use 8 =1.
The measured lift slope for a new airfoil is 0.0975 degree-1, with al=0 =-1.15º. Consider a finite wing using this airfoil, with AR of 10 and taper ratio of 0.6. Calculate the lift and induced drag coefficients for this wing at a geometric angle of attack of 9º. Also, find the span efficiency factor. Hint: See Eq. (5.70) and Fig. 5.20. Are the values of lift and induced drag coefficients reasonable? do a = (5.70) 1 + (ao/A AR)(1 +...
Question 3-Concept Questions (10 points) a) What is the reason for having surface dimples (roughness) on a golf ball? Explain in 2-3 sentences. b) Draw the variation of lift and drag coefficients for a subsonic airfoil (at high Re number) over a Mach number range of 0.1-1.1. Explain the reason for trends Specify the primary drag mechanism for the following shapes in airstream at different Mach c) numbers. a. Symmetrical airfoil at an angle of attack of 4 degrees at...
Q1. Draw the Lift coefficient vs. angle of attack for the following airfoils. Q2. Explain the fundamental difference(s) between a 2D wing and a finite length wing. Q3. An experimental thin airfoil has the following characteristics: ic) zero-lift at -2 degrees angle of attack. stall angle 13 degrees angle of attack. What is the lift at an angle of attack of zero degrees? . What is the maximum lift coefficient?
Q1. Draw the Lift coefficient vs. angle of attack for...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
use
matlab to solve
4. The following formulas are commonly used by engineers to predict the lift and drag of an airfoil: L 30,8V2, 3PCSV? D where L and D are the lift and drag forces, V is the airspeed, S is the wing span, p is the air density, and C & Co are the lift and drag coefficients, which are polynomial expressions that depend on the attack angle, a. A wind tunnel experiment for a particular airfoil has...
use a Reynolds number of 2.6x10^5 to find using
graphs
2. Consider an NACA 23015 airfoil (Fig 5.2a and 5.2b in text) with a chord of 0.64 m in an airstream 1000m above sea level conditions. The freestream velocity is 70 m/s. The lift per unit span is 1200 N/m. Calculate the angle of attack and the drag per unit span. (See example 4.1) CHAPTER S incompressible Flow over Finite Wings Section lift coefficient - Moment coefficient, -20 -32 -24...
1. For the airfoil Cp data shown below; • What is the maximum airspeed in flow just outside the boundary layer if the freestream speed Vo = 120 m/s? • What is the local Mach number at this point if the altitude is 12 km? • What is the approximate value of C, for these conditions? Ans: V = 204.35 m/s, M = 0.693, CL ~ 1.15. -1.00 .. .... -0.50 .... ..... 0 0.1 0.2 0.3 0.4 0.5 0.6...
Sketch the graph of the function f(x) - (2-6)(x+3) 9(2+2) A sketch need not be exact or to scale! A sketch does need to show important points and features of the graph: intervals on which the function is increasing/decreasing, concavity, points at which local and absolute max, and min. values occur, inflection points, intercepts, vertical and horizontal asymptotes, and any other features particular to the particular function,
