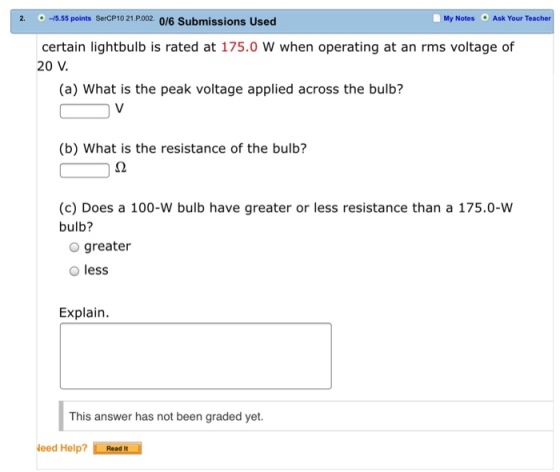

Certain lightbulb is rated at 175.0 W when operating at an rms voltage of 20 V....

Question

Question

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

An incandescent lightbulb is rated at 100 Watts when plugged into a 110 V-rms household outlet....

An incandescent lightbulb is rated at 100 Watts when plugged into a 110 V-rms household outlet. Calculate the resistance of the filament and the rms current. a. 12.2 Ohm, 0.9A (rms) b. 10 Ohm, 1A (rms) c. 110 Ohm, 1A (rms) d. 122 Ohm, 0.9 A (rms) e. 11 Ohm, 1.1 A (rms)
A "120-watt" lightbulb uses an average power of 120 W when connected to an rms voltage...

A "120-watt" lightbulb uses an average power of 120 W when connected to an rms voltage of 120 V. What is the resistance of the lightbulb? What is the maximum current in the bulb? What is the maximum power used by the bulb at any given instant of time?
Lightbulb A is rated at 120 V and 100 W for household applications. Lightbulb B is...

Lightbulb A is rated at 120 V and 100 W for household applications. Lightbulb B is rated at 12 V and 100 W for automotive applications. Part A What is the current through each bulb? Express your answer using two significant figures. Enter your answers numerically separated by a comma. IVO AXO ? IA, IB = A Submit Request Answer Submit Part B What is the resistance of each bulb? Express your answer using two significant figures. Enter your answers...

Lightbulb A is marked "10.0 W 120 v," and lightbulb B is marked 100 W 120...

Lightbulb A is marked "10.0 W 120 v," and lightbulb B is marked 100 W 120 V." These labels mean that each lightbulb has its respective power delivered to it when it is connected to a constant 120-V source. (a) Find the resistance of each lightbulb. (b) During what time interval does 2.00 C pass into lightbulb A? (c) Is this charge different upon its exit versus its entry into the lightbulb? Yes O No Explain. This answer has not...
A typical lightbulb in your residence is rated 75 W, which means that the bulb dissipates...

A typical lightbulb in your residence is rated 75 W, which means that the bulb dissipates 75 W when connected to a DC voltage of 110 V. (a) What is the current? A (b) If the voltage is reduced to 74 V, what is the dissipated power? Assume the resistance does not change when the voltage is reduced. W
What is the resistance of a lightbulb that uses an average power of 70.0 W when...

What is the resistance of a lightbulb that uses an average power of 70.0 W when connected to a 60.0 Hz power source having a maximum voltage of 150 V? ohm (b) what is the resistance of a 90 w bulb? ohm

A typical lightbulb in your house is rated 150 W, which means that the bulb dissipates...

A typical lightbulb in your house is rated 150 W, which means that the bulb dissipates 150 W when connected to a DC voltage of 115 V. (a) What is the current through the lightbulb? (b) If the voltage is reduced to 40 V, what is the dissipated power?
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 5.4 uF capacitor and a 351 ohm resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...
An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.400 H inductor, a 5.30 ?F capacitor and a 251 ohm resistor. A.) What is the impedance of the circuit? B.) What is the rms current through the resistor? C.) What is the average power dissipated in the circuit? D.) What is the peak current through the resistor? E.) What is the peak voltage across the inductor F.) What is...

A 60-W lightbulb connected to a 120-V source experiences a voltage surge that produces 136 V...

A 60-W lightbulb connected to a 120-V source experiences a voltage surge that produces 136 V for a moment. By what percentage does its power output increase? Assume its resistance does not change Need Help?ReadIt
