Question

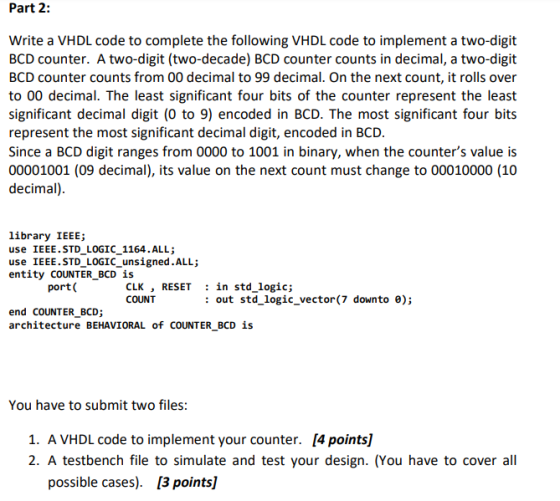

Part 2: Write a VHDL code to complete the following VHDL code to implement a two-digit BCD counter. A two-digit (two-decade) BCD counter counts in decimal, a two-digit BCD counter counts from 00 decimal to 99 decimal. On the next count, it rolls over to 00 decimal. The least significant four bits of the counter represent the least significant decimal digit (0 to 9) encoded in BCD. The most significant four bits represent the most significant decimal digit, encoded in BCD. Since a BCD digit ranges from 0000 to 1001 in binary, when the counter's value is 00001001 (09 decimal), its value on the next count must change to 00010000 (10 decimal). library IEEE; use IEEE. STD_LOGIC_1164.ALL; use IEEE. STD_LOGIC_unsigned. ALL; entity COUNTER_BCD is port CLK, RESET : in std_logic; COUNT : out std_logic_vector (7 downto 0); end COUNTER_BCD; architecture BEHAVIORAL of COUNTER_BCD is You have to submit two files: 1. A VHDL code to implement your counter. [4 points] 2. A testbench file to simulate and test your design. (You have to cover all possible cases). [3 points]

Please Solve As soon as
Solve quickly I get you thumbs up directly
Thank's
Abdul-Rahim Taysir

Answer 1

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
ENTITY Counter_BCD IS
port( clk: in std_logic;
--data_in : in std_logic_vector(3 downto 0);
reset: in std_logic;
---load: in std_logic;
count: out std_logic_vector(3 downto 0)
);
end Counter_BCD;

architecture logic of Counter_BCD is
COMPONENT BCD_1_digit IS
port( clk: in std_logic;
--data_in : in std_logic_vector(3 downto 0);
clear: in std_logic;
---load: in std_logic;
data_out: out std_logic_vector(3 downto 0)
);
END COMPONENT;


signal D : std_logic;
signal data1,data2: std_logic_vector(3 downto 0);

BEGIN

-- Instantiate the Unit Under Test (UUT)
uut: BCD_1_digit PORT MAP (
clk => clk,
clear => reset,
data_out => data1
);
uut1: BCD_1_digit PORT MAP (
clk => D,
clear => reset,
data_out => data2
);
process(clk,reset)
begin
if data1 = "1001" then
D<='1';
else
D<='0';
end if;

count <= data2 & data1;
end process;
end logic;
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
--library ieee;
--use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
ENTITY BCD_1_digit IS
port( clk: in std_logic;
--data_in : in std_logic_vector(3 downto 0);
clear: in std_logic;
---load: in std_logic;
data_out: out std_logic_vector(3 downto 0)
);
end BCD_1_digit;

architecture logic of BCD_1_digit is
begin
process(clk)
variable reg: std_logic_vector(3 downto 0):="0000";
begin
if (clk'event and clk = '1') then -- otherwise update the states
if (clear = '1') then -- go to state zero if reset
reg:="0000";
else
if(reg = "1010") then
reg:="0000";
else
reg:=reg+1;
end if;
reg:=reg;
end if;
else
null;
end if;
data_out<=reg;
end process;
end logic;

-- testbench:

LIBRARY ieee;
USE ieee.std_logic_1164.ALL;

ENTITY tb_counter IS
END tb_counter;

ARCHITECTURE behavior1 OF tb_counter IS

-- Component Declaration for the Unit Under Test (UUT)

COMPONENT Counter_BCD IS
port( clk: in std_logic;
--data_in : in std_logic_vector(3 downto 0);
reset: in std_logic;
---load: in std_logic;
count: out std_logic_vector(3 downto 0)
);
END COMPONENT;

--Inputs
signal clk : std_logic ;
signal reset : std_logic ;

--Outputs
signal count : std_logic_vector(7 downto 0);

BEGIN

-- Instantiate the Unit Under Test (UUT)
uut: Counter_BCD PORT MAP (
clk => clk,
reset => reset,
count => count
);

-- Stimulus process
stim_proc: process
begin
clk <='0';reset<='0';
wait for 10ns;
clk<='1'; reset<='1';
wait for 10ns;
reset<='0';
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
wait for 10ns;
clk<='1';
wait for 10ns;
clk<='0';
end process;
end behavior1;
