Question

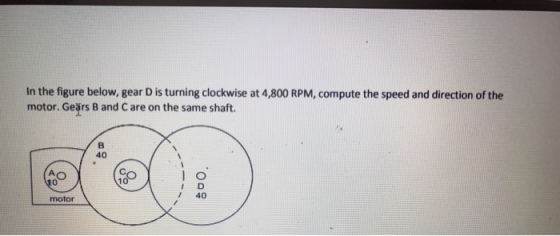

In the figure below, gear D is turning clockwise at 4,800 RPM, compute the speed and direction of the motor. Gears B and Care on the same shaft. 40 0 I D 40 motor Can someone please give a through explanation of the steps. I have a solution but don't understand the steps. The final answer should be 76,800 RPM, clockwise. Thank you!
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

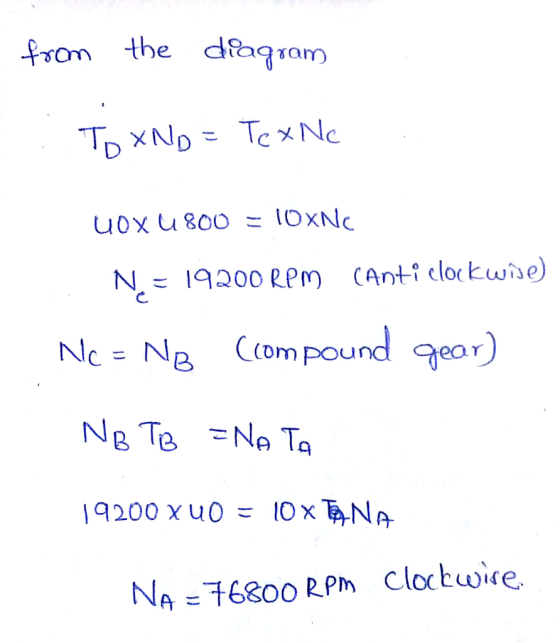

fsom the diam aasanm NPm CAnti clortwre Nc= NB Compound 9eor)

0 0
Add a comment
