Consider an arbitrary periodic signal with a period of 2 seconds.
Give the equation for the infinite Fourier Series (Trigonometric Form) for this signal.
where, the fundamental period/frequency is:
=2
sec and
=12 Hz
a)List the frequencies present in the analog (continuous-time) signal.
b)Assume that the analog signal is sampled at 2 Hz. List the digital frequencies present in the resulting digital signal.
c)What are the magnitudes of the sine and cosine terms associated with each of these digital frequencies?
d)Give the resulting digital signal.
e)Reconstruct an analog signal assuming a sampling frequency of 2 Hz

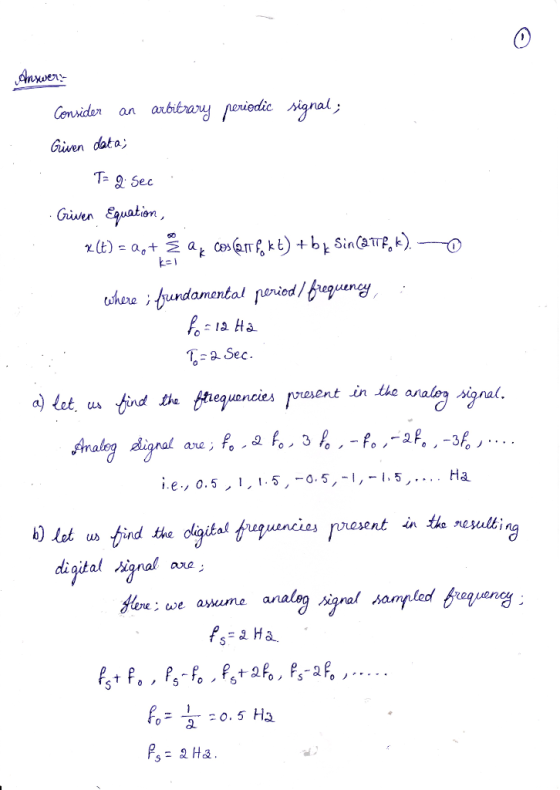

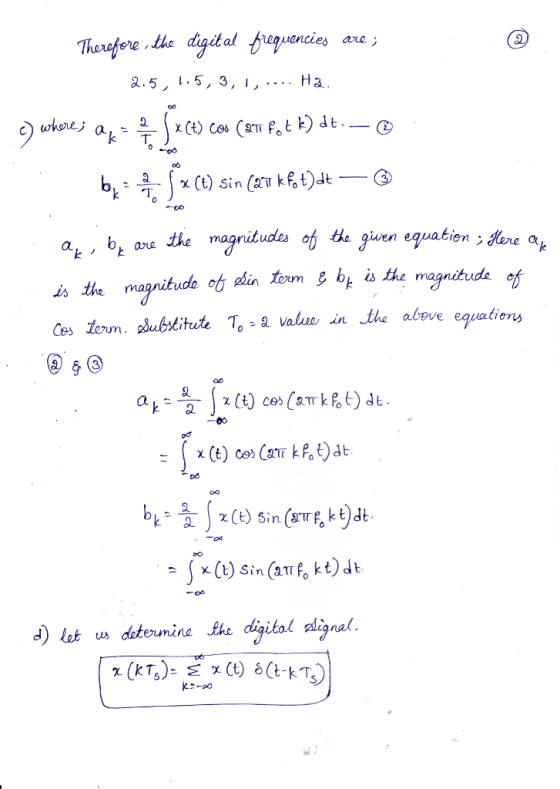

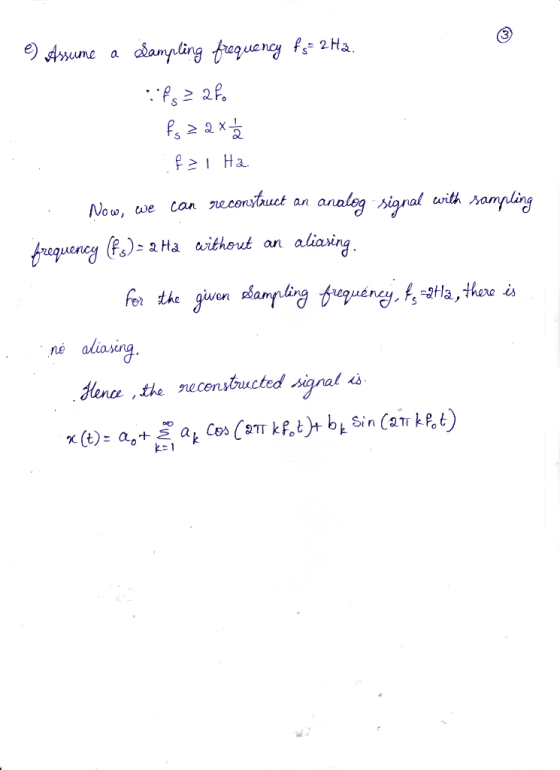

Homework Answers
Add Answer to:
Consider an arbitrary periodic signal with a period of 2
seconds.
Give the equation for the...
Consider an arbitrary periodic signal with a period of 2 seconds. Give the equation for the...
Consider an arbitrary periodic signal with a period of 2 seconds. Give the equation for the infinite Fourier Series (Trigonometric Form) for this signal. k-1 where, the fundamental period/frequency is: TO = 2 sec and fo a) List the frequencies present in the analog (continuous-time) signal b) Assume that the analog sig alissa pled at 2 H List the dig a f equences present in the resulting digital signal. c) What are the magnitudes of the sine and cosine terms...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sa...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sampled at the rate of fs400 Hz, show the resulting spectrum of the ideally sampled signal. (b) If we attempt to reconstruct gi (t) from the samples in Part (a), what will be the recovered analog signal in both time and frequency domains? (c) Determine another analog signal G2(f) in frequency domain such that its samples at = 400 Hz will lead to the same...
Given the periodic signal ?(?)=H0,−1<?<0 2−2?,0<?<1 with a signal period of 2 sec. Obtain the Fourier...
Given the periodic signal ?(?)=H0,−1<?<0 2−2?,0<?<1 with a signal period of 2 sec. Obtain the Fourier series coefficients using the Fourier sine and Fourier cosine series expansions.
2. A continuous-time periodic signal with Fourier series coefficients c^ = and period T, 0.1sec pass...
2. A continuous-time periodic signal with Fourier series coefficients c^ = and period T, 0.1sec pass through an ideal lowpass filter with cut off frequency =102.5Hz. The resulting signal y, (t) is sampled periodically with T 0.005 sec determine the spectrum of the sequence y(n) = ya(nT)
Q. 2 A continuous time signal x(t) has the Continuous Time Fourier Transform shown in Fig...
Q. 2 A continuous time signal x(t) has the Continuous Time Fourier Transform shown in Fig 2. Xc() -80007 0 80001 2 (rad/s) Fig 2 According to the sampling theorem, find the maximum allowable sampling period T for this signal. Also plot the Fourier Transforms of the sampled signal X:(j) and X(elo). Label the resulting signals appropriately (both in frequency and amplitude axis). Assuming that the sampling period is increased 1.2 times, what is the new sampling frequency 2? What...
Problem (3) a) A periodic square wave signal x(t) is shown below, it is required to answer the below questions: x(t) 1. What is the period and the duration of such a signal? 2. Determine the fund...
Problem (3) a) A periodic square wave signal x(t) is shown below, it is required to answer the below questions: x(t) 1. What is the period and the duration of such a signal? 2. Determine the fundamental frequency. 3. Calculate the Trigonometric Fourier Series and sketch the amplitude spectrum and phase spectrum of the signal x(t) for the first 5 harmonics. b) Find the Continuous Time Fourier Series (CTFS) and Continuous Time Fourier Transform (CTFT) of the following periodic signals...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π . 5500t) sampled at a rate of 10,000 Hz, a. Sketch the spectrum of the sampled signal up to 20 kHz; b. Sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal ; c. Determine the frequency/frequencies of aliasing noise . Q2)...
Let x(t) a periodic signal with period To such that x(t)-sin(coot) for。st for To/2 s t...
Let x(t) a periodic signal with period To such that x(t)-sin(coot) for。st for To/2 s t s To. To2 and x(t)-0 a) Plot x(t) b) Expand x(t) in trigonometric Fourier series (sine/cosine). c) Calculate the average power of x().
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind...
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies. Suppose we impulse-train sample o(t) at the rate of 500 samples/second. FOURIER TRANSFORM 200 600 800 1000 400 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude spectrum and the phase spectrum. If the signal is going to be sampled, what should be the minimum sampling frequency so that the aliasing error is less than 0.1 % of the maximum original magnitude at half the sampling frequency. 11. A signal x(t) = 5cos(2nt + 1/6) is sampled at every 0.2 seconds. Find the sequence obtained over the interval 0 st 3...
Consider an arbitrary periodic signal with a period of 2 seconds. Give the equation for the infinite Fourier Series (Trigonometric Form) for this signal. k-1 where, the fundamental period/frequency is: TO = 2 sec and fo a) List the frequencies present in the analog (continuous-time) signal b) Assume that the analog sig alissa pled at 2 H List the dig a f equences present in the resulting digital signal. c) What are the magnitudes of the sine and cosine terms...
5.1-7 Consider a bandlimited signal g1(C) whose Fourier transform is (a) If g1(t) is uniformly sampled at the rate of fs400 Hz, show the resulting spectrum of the ideally sampled signal. (b) If we attempt to reconstruct gi (t) from the samples in Part (a), what will be the recovered analog signal in both time and frequency domains? (c) Determine another analog signal G2(f) in frequency domain such that its samples at = 400 Hz will lead to the same...
2. A continuous-time periodic signal with Fourier series coefficients c^ = and period T, 0.1sec pass through an ideal lowpass filter with cut off frequency =102.5Hz. The resulting signal y, (t) is sampled periodically with T 0.005 sec determine the spectrum of the sequence y(n) = ya(nT)
Q. 2 A continuous time signal x(t) has the Continuous Time Fourier Transform shown in Fig 2. Xc() -80007 0 80001 2 (rad/s) Fig 2 According to the sampling theorem, find the maximum allowable sampling period T for this signal. Also plot the Fourier Transforms of the sampled signal X:(j) and X(elo). Label the resulting signals appropriately (both in frequency and amplitude axis). Assuming that the sampling period is increased 1.2 times, what is the new sampling frequency 2? What...
Problem (3) a) A periodic square wave signal x(t) is shown below, it is required to answer the below questions: x(t) 1. What is the period and the duration of such a signal? 2. Determine the fundamental frequency. 3. Calculate the Trigonometric Fourier Series and sketch the amplitude spectrum and phase spectrum of the signal x(t) for the first 5 harmonics. b) Find the Continuous Time Fourier Series (CTFS) and Continuous Time Fourier Transform (CTFT) of the following periodic signals...
Let x(t) a periodic signal with period To such that x(t)-sin(coot) for。st for To/2 s t s To. To2 and x(t)-0 a) Plot x(t) b) Expand x(t) in trigonometric Fourier series (sine/cosine). c) Calculate the average power of x().
Consider the complex-valued signal c(t) with Fourier transform as shown in the figure. Keep in mind that there are no symmetry properties this signal satisfies in the fre- quency domain. In particular, the Fourier transform is zero for negative frequencies. Suppose we impulse-train sample o(t) at the rate of 500 samples/second. FOURIER TRANSFORM 200 600 800 1000 400 FREQUENCY (Hz.) (a) Sketch the Fourier transform of the impulse-train sampled signal in the range of frequencies from -1000 Hz. to 1000...
10. Find the Fourier transform of a continuous-time signal x(t) = 10e Su(t). Plot the magnitude spectrum and the phase spectrum. If the signal is going to be sampled, what should be the minimum sampling frequency so that the aliasing error is less than 0.1 % of the maximum original magnitude at half the sampling frequency. 11. A signal x(t) = 5cos(2nt + 1/6) is sampled at every 0.2 seconds. Find the sequence obtained over the interval 0 st 3...
