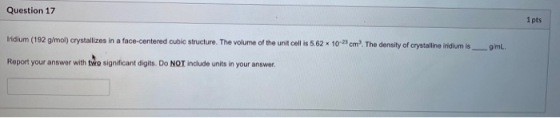

Question 17 1 pts Iridium (192 g/mol) crystallizes in a face-centered cubic structure. The volume of...

Question

Question

science chemistry

Answer 1

Answer #1

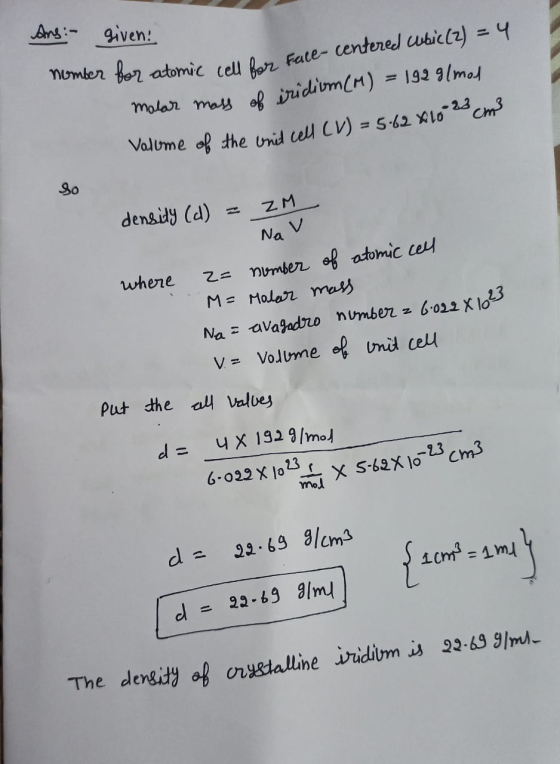

Valume of the unit cell (V) = 5.62 4102 cm3 Ans:- given! nomber for atomic cell for face- centered whic(z) = 4 malar mass of

Answer 2

Similar Homework Help Questions

Iridium crystallizes in a face-centered cubic unit cell that has an edge length of 3.833 Å....

Iridium crystallizes in a face-centered cubic unit cell that has an edge length of 3.833 Å. The atom in the center of the face is in contact with the corner atoms, as shown in the drawing. Part A Calculate the atomic radius of an iridium atom. Express your answer using four significant figures. Part B Calculate the density of iridium metal. (Figure 1) Express your answer using four significant figures.
Palladium crystallizes with a face-centered cubic structure. It has a density of 12.0 g/cm3, a radius...

Palladium crystallizes with a face-centered cubic structure. It has a density of 12.0 g/cm3, a radius of 1.38, and a molar mass of 106.42 g/mol. Use these data to calculate Avogadro’s number.
Strontium has density of 2.64 g/cm3 and crystallizes with the face-centered cubic unit cell. Calculate the...

Strontium has density of 2.64 g/cm3 and crystallizes with the face-centered cubic unit cell. Calculate the radius of a strontium atom in units of picometers. Enter your answer numerically, to three significant figures, and in terms of pm.

Metal x crystallizes in a face-centered cubic (close-packed) structure. The edge length of the unit cell...

Metal x crystallizes in a face-centered cubic (close-packed) structure. The edge length of the unit cell was found by x-ray diffraction to be 383.9 pm. The density of x is 20.95 . Calculate the mass of an x atom, and use Avogadro’s number to calculate the molar weight of Metal X crystallizes in a face-centered cubic (close-packed) structure. The edge length of the unit cell was found by x-ray diffraction to be 383.9 pm. The density of X is 20.95...
Aluminum crystallizes with a face-centered-cubic unit cell. The radius of an Al atom is 143 pm....

Aluminum crystallizes with a face-centered-cubic unit cell. The radius of an Al atom is 143 pm. Calculate the density of solid crystalline Al in g/cm3.
has a density of 12.41 g/cm and crystallizes with the face-centered cubic unit ly show all...

has a density of 12.41 g/cm and crystallizes with the face-centered cubic unit ly show all work, including equations mass and volume of the Rb unit cell. Write answer for volume, with units, in the box. V- Calculate the length of the Rh unit cell and the radius (in pm) of an Rh atom. with units, in the box Write answer for radius, b)

The element copper crystallizes in face centered cubic structure with a density of 8.89 g/cm3. Calculate...

The element copper crystallizes in face centered cubic structure with a density of 8.89 g/cm3. Calculate the distance between two nearest copper atoms.
A hypothetical metal crystallizes with the face-centered cubic unit cell. The radius of the metal atom...

A hypothetical metal crystallizes with the face-centered cubic unit cell. The radius of the metal atom is 160 picometers and its molar mass is 195.08 g/mol. Calculate the density of the metal in g/cm3. Enter your answer numerically and in terms of g/cm3.
Aluminum (Al) has a density (d) of 2.70 g/cm3and crystallizes in a face-centered cubic (fcc) structure....

Aluminum (Al) has a density (d) of 2.70 g/cm3and crystallizes in a face-centered cubic (fcc) structure. What is the unit cell edge length? Select one: a. 2.47 × 10-3pm. b. 40.0 pm. c. 405 pm. d. 321 pm. e. 255 pm.

A metallic element, Mk, with molar mass 40 crystallizes in a face-centered cubic structure, but can...

A metallic element, Mk, with molar mass 40 crystallizes in a face-centered cubic structure, but can transform to hexagonal close-packed and body-centered cubic polymorphs at high temperature. The FCC structure has a density of 1.523 g/cm-3. 1. For the BCC phase, draw the packing of spheres one of the 2D layers (>10 atoms). Indicate with a * the positions of the spheres in the layer below.
