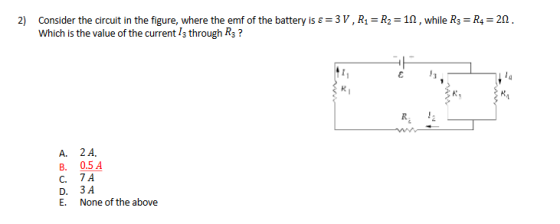

Consider the circuit in the figure, where the emf...
Consider the circuit shown in the figure(Figure 1). Suppose thefour resistors in this circuit have...
Consider the circuit shown in the figure(Figure 1). Suppose the
four resistors in this circuit have the values R1 = 10 Ω , R2 = 6.6
Ω , R3 = 6.1 Ω , and R4 = 14 Ω , and that the emf of the battery is
E = 18 V .Find the current through each resistor using the rules for
series and parallel resistors.Find the current through each resistor using Kirchhoff's
rules.
Consider the electric circuit shown in the figure. Assume that the voltage of the battery is...
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have...
Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R1 = 12 12, R2 = 7.0 N, R3 = 7.9 2 , and R4 = 12 12, and that the emf of the battery is € = 18 V You may want to review (Pages 748 - 751) Part A Find the current through each resistor using the rules for series and parallel resistors. Express vour answers using two significant figures...
In the above figure, consider the circuit sketched. The battery has emf epsilon = 80 volts...
In the above figure, consider the circuit sketched. The battery has emf epsilon = 80 volts and negligible internal resistance. The four resistors have resistances of R1 = 14 ohm, R2 = 21 ohm, R3 = 21 ohm, and R4 = 14 ohm. What is the equivalent resistance in the circuit shown in the figure? Calculate the rate at which heat (power) is being generated in the resistor R4
Urg urgent,! please help, thank you Question 1 2 pts In the circuit shown below, the...
Urg
urgent,! please help, thank you
Question 1 2 pts In the circuit shown below, the emf of the battery E=20 volts, and the resistors have values R1 = 17422, R2 = 1252, R3 = 189 and R4 = 1762. What is the current supplied by the battery to this circuit? (Hint: first find the equivalent resistance of the circuit.) Answer in milliamps to the nearest milliamp, where 1000 milliamps = 1 amp. R R R3 w RA
for the circuit in the following figure, both meters are idealized.please break it down the circuit,...
for the circuit in the following figure, both meters are
idealized.please break it down the circuit, and answer questions a
and b.
For the circuit shown in the following figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.37 A. (Let R1-52.0 Ω, R2-27.0 Ω, and R3-R4-17 Ω·) (a) What does the voltmeter read? (b) what is the emf ε of the battery? R3 Ri R4 10.012 35.0 Ω a. 256 V b.465...
A circuit consisting of 5 resistors is shown in the graph
A circuit consisting of 5 resistors is shown in the graph. Their resistances are R1 = 18 Ω, R2 = 75 Ω, R3=98Ω,R4 = 27 Ω, and R5 = 36 Ω, and the emf of the battery is ε=5.5 V. Suppose the internal resistance of the battery is zero. Part (a) Express the equivalent resistance of the combination of R2, R3, and R4. Part (b) Express the total resistance of the circuit R in terms of R1, R2, R3,R4. and R5. Part (c)...
Please answer all questions (a-d) . thank you . (9%) Problem 5: In the circuit pictured,...
Please answer all questions (a-d) . thank you .
(9%) Problem 5: In the circuit pictured, the resistors have values of R, = 1952, R2 = 572, and R3 = 146 2, and the battery has an emf ε = 241 V. Riž R, >> A 25% Part (a) Write an expression for the current through the battery. ibatt Grade Summar Deductions Potential a B h m R2 d j P R3 ( 7 8 4 5 * 1 2...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R-10 Ω , R 7.2 S2, R3 6.42, and R4 12 2, and that the emf of the battery is E = 18 V . Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas. I1, I2,I3, I4- Submit Request Answer Figure 1 of...
Consider the circuit shown where V=30 Volts and R1 = R2 = R3 = R4 =...
Consider the circuit shown where V=30 Volts and R1 = R2 = R3 = R4 = R5 = R6 = 5.2. Riş V R2 W-WWW R4 N WW-WW RO R3 A) Find the equivalent resistance of the circuit. Req Ω B) Find the current through the battery. I = A
Consider the circuit shown in the figure(Figure 1). Suppose the
four resistors in this circuit have the values R1 = 10 Ω , R2 = 6.6
Ω , R3 = 6.1 Ω , and R4 = 14 Ω , and that the emf of the battery is
E = 18 V .Find the current through each resistor using the rules for
series and parallel resistors.Find the current through each resistor using Kirchhoff's
rules.
Consider the electric circuit shown in the figure. Assume that
the voltage of the battery is V = 23.5 V, and the resistors are
R1 = R2 = R3 = R4 =
R5 = 2.00 Ω.
What is the equivalent resistance of the circuit?
What is the electric current flowing through resistor
R3?
Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R1 = 12 12, R2 = 7.0 N, R3 = 7.9 2 , and R4 = 12 12, and that the emf of the battery is € = 18 V You may want to review (Pages 748 - 751) Part A Find the current through each resistor using the rules for series and parallel resistors. Express vour answers using two significant figures...
In the above figure, consider the circuit sketched. The battery has emf epsilon = 80 volts and negligible internal resistance. The four resistors have resistances of R1 = 14 ohm, R2 = 21 ohm, R3 = 21 ohm, and R4 = 14 ohm. What is the equivalent resistance in the circuit shown in the figure? Calculate the rate at which heat (power) is being generated in the resistor R4
Urg
urgent,! please help, thank you
Question 1 2 pts In the circuit shown below, the emf of the battery E=20 volts, and the resistors have values R1 = 17422, R2 = 1252, R3 = 189 and R4 = 1762. What is the current supplied by the battery to this circuit? (Hint: first find the equivalent resistance of the circuit.) Answer in milliamps to the nearest milliamp, where 1000 milliamps = 1 amp. R R R3 w RA
for the circuit in the following figure, both meters are
idealized.please break it down the circuit, and answer questions a
and b.
For the circuit shown in the following figure both meters are idealized, the battery has no appreciable internal resistance, and the ammeter reads 1.37 A. (Let R1-52.0 Ω, R2-27.0 Ω, and R3-R4-17 Ω·) (a) What does the voltmeter read? (b) what is the emf ε of the battery? R3 Ri R4 10.012 35.0 Ω a. 256 V b.465...
Please answer all questions (a-d) . thank you .
(9%) Problem 5: In the circuit pictured, the resistors have values of R, = 1952, R2 = 572, and R3 = 146 2, and the battery has an emf ε = 241 V. Riž R, >> A 25% Part (a) Write an expression for the current through the battery. ibatt Grade Summar Deductions Potential a B h m R2 d j P R3 ( 7 8 4 5 * 1 2...
Problem 21.61 Review PartA Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R-10 Ω , R 7.2 S2, R3 6.42, and R4 12 2, and that the emf of the battery is E = 18 V . Find the current through each resistor using the rules for series and parallel resistors. Express your answers using two significant figures separated by commas. I1, I2,I3, I4- Submit Request Answer Figure 1 of...
Consider the circuit shown where V=30 Volts and R1 = R2 = R3 = R4 = R5 = R6 = 5.2. Riş V R2 W-WWW R4 N WW-WW RO R3 A) Find the equivalent resistance of the circuit. Req Ω B) Find the current through the battery. I = A
