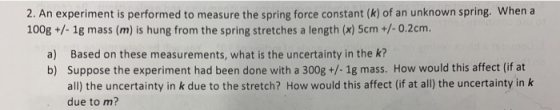

2. An experiment is performed to measure the spring force constant (k) of an unknown spring....

Question

Question

science physics

Answer 1

Answer #1

O) g80 - 16o0

Answer 2

Similar Homework Help Questions

Now measure the distance, x, for two more masses and enter your measurements in the table...

Now measure the distance, x, for two more masses and enter your measurements in the table below. Try to estimate to the nearest 0.5 mm. Find the spring constant by solving mg = kx for k. The spring constant is a property of the spring so you should get nearly the same result each time. Part 1: Spring Constant Background: A spring scale works because it obeys Hooke's Law: F=-kx. When you hang a weight, the spring stretches until the...
Question 4 2 pts A spring of spring constant k 12.5 N/m is hung vertically. A...

Question 4 2 pts A spring of spring constant k 12.5 N/m is hung vertically. A 0.500 kg mass is then suspended from the spring. What is the displacement of the end of the spring due to the weight of the 0.500 kg mass? O 0.692 m O 0.039 m O 0.2 m O 0.392 nm
I would like your feedback on my experiment. I am Investigating how different springs extend when...

I would like your feedback on my experiment. I am Investigating how different springs extend when I add different weights to it. I want to check if the methodology of my experiment is good. Could you give me a feedback? Methodology: I have 3 springs of the same material but with different diameters/lenghts and 5 different weigths. 1. I will measure the initial length of the spring using a ruler, I will hang the weight under the spring. When the...

Question 8 The nylon rope from which a mountain climber is suspended has a force constant...

Question 8 The nylon rope from which a mountain climber is suspended has a force constant of 1.40 x 104 N/m. How much would this rope stretch to break the climber's fall if he free-falls 2.16 m before the rope runs out of slack, given his mass plus and the mass of his equipment are 91.6 kg? Hint: Use conservation of energy. You can assume the amount the rope stretches is small compared to the distance of his fall. Select...
A light spring with a spring constant k = 316 N/m is attached to a vertical...

A light spring with a spring constant k = 316 N/m is attached to a vertical wall at one end and a block with a mass m = 0.462 kg at the other end. The block rests on a horizontal frictionless surface and is initially at the equilibrium length of the spring. The block is then displaced from the equilibrium position of the spring in such a manner as to stretch the spring by an amount A = 0.190 m...
A spring with a force constant k = 2.2x10^2 N/m is stretched by a person. The...

A spring with a force constant k = 2.2x10^2 N/m is stretched by a person. The person pulls on the spring with a final applied force of F_app = 44 N at equilibrium (no motion). How much work was done by the person in the process? A spring with a force constant k = 2.2x10^2 N/m is stretched by a person. The person pulls on the spring with a final applied force of F_app = 44 N at equilibrium (no...

Problem 12: (10 points) PS 7-71: A spring with spring constant k is stretched a distance...

Problem 12: (10 points) PS 7-71: A spring with spring constant k is stretched a distance x and hooked onto a block of wood of mass m, which sits on a lab table. Then you release the block. The kinetic friction force between the block and the lab table is F equilibrium length? (VS) length? (Vs) initial stretch of x 65 cm, and a constant friction force Fi 2.4 N. (a) What is the initial elastic potential energy stored in...
A block of mass m=2.00 kg is attached to a spring of force constant k=500. N/m...

A block of mass m=2.00 kg is attached to a spring of force constant k=500. N/m that lies on a horizontal frictionless surface. The block is pulled back 5.00cm and released. a) How much work was required to stretch the spring? b) What is the speed of the block when it is 2.50cm from the equilibrium point? c) What is the speed of the block at the equilibrium point?
A massless spring of a spring gun has a force constant k=800 N/m. A ball of...

A massless spring of a spring gun has a force constant k=800 N/m. A ball of mass 0.5 kg is resting on top of the spring. The ball compresses the spring by d as shown in the right figure. When the gun is fired vertically, the ball reached a maximum height of 5 m from the top of the spring as it returns to its natural length. Calculate how much the spring was initially compressed (d). (a) 12 cm; (b)...

1.A spring-loaded dart gun with a spring constant K= 2000 N/m is used to shoot a...

1.A spring-loaded dart gun with a spring constant K= 2000 N/m is used to shoot a dart with a mass .20kg straight up into the air, and the dart reaches a maximum height of 10 meters. How far did the spring need to be compressed? 2. If i wanted to measure the amount of potential energy in the spring inside my nerf gun, with some nerf darts, what is an easy way i could do it? Explain the steps you...
