A sphere’s volume is 75,000 gallons at ambient temperature Fluid is liquid nitrogen; assume the density...
A sphere’s volume is 75,000 gallons at ambient temperature
Fluid is liquid nitrogen; assume the density is at atmospheric
pressure
Tank bottom would just be the tank liquid head pressure + the tank
ullage pressure
Write an equation to determine the volume in the tank given the
delta-P of the tank, which is just: (tank bottom pressure) – (tank
ullage pressure).

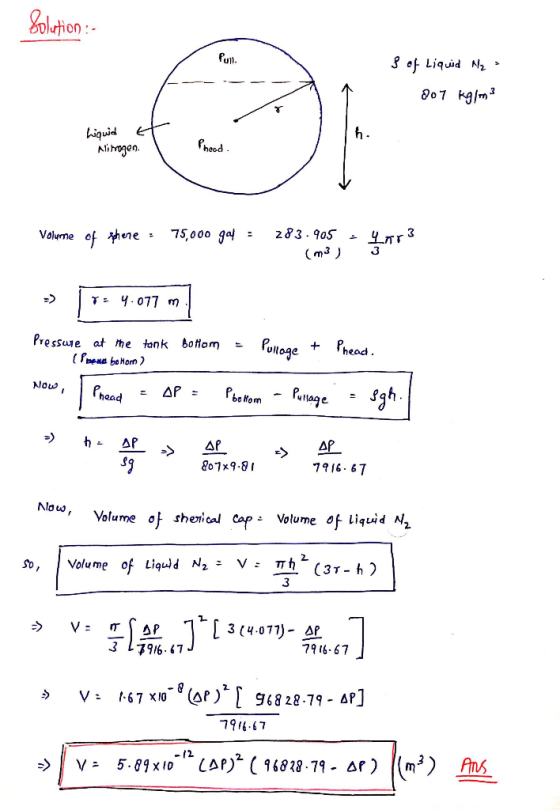

Homework Answers
note: vale of delta-p should be in pascals. please rate and
comment if you have any query.
