Question

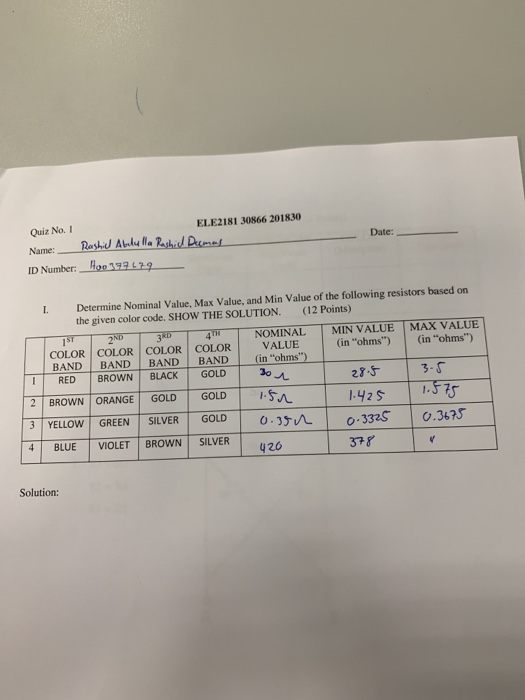

ELE2181 30866 201830 Quiz No. Date: ID Number: Hoo 3179 L Determine Nominal Value, Max Value, and Min Value of the following resistors based on the given color code. SHOW THE SOLUTION. (12 Points) NOMINAL | MIN VALUE | MAXVALUE (in "ohms") (in "ohms") COLOR COLOR COLOR COLOR VALUE BAND | BAND | BAND | BAND (in-hms.) RED | BROWN | BLACK | GOLD 30人 2BROWN ORANGEGLD 1.42$ 3 YELLOW GREEN SILVER GOLD 3O332S .375 BLUE | VIOLET | BROWN | SILVER 378 426 Solution:

Answer 1

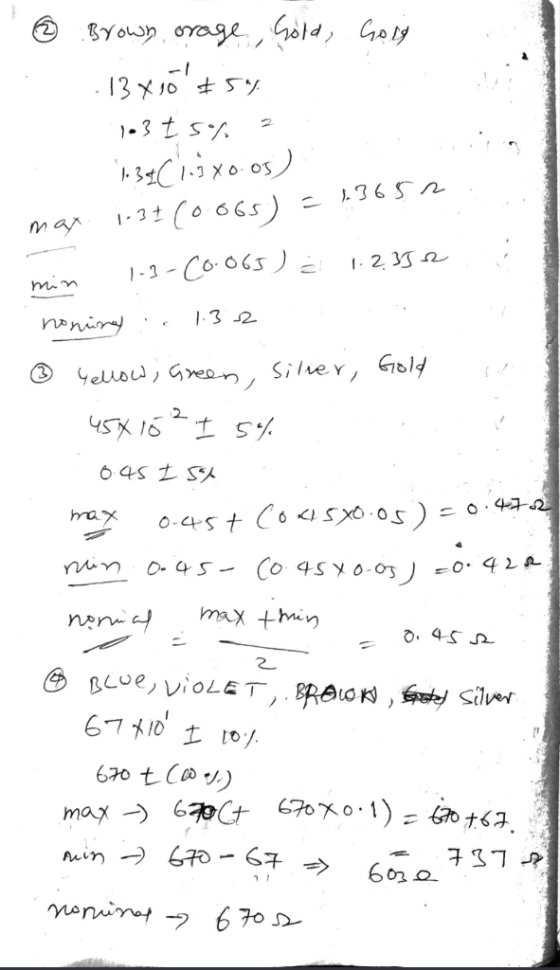

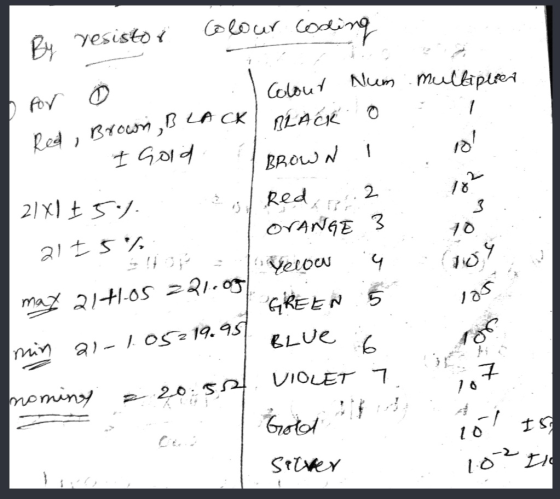

Brown range Gold, 13 times 10^-1 notequalto 5 % 1.3 plusminus 5 % = 1.3 plusminus (1.3 times 0.05) max 1.3 plusminus (0.065) = 1.365 Ohm min 1.3 - (0.065) = 1.235 Ohm nominal 13 Ohm yellow Green silver Gold 45 times 10^-2 plusminus 5 % 0.45 plusminus 5 % max 0,45 + (0.45 times 0.05) = 0.47 Ohm min 0.45 - (0.45 times 0.05) = 0.42 Ohm nominal = max + min = 0.45 Ohm Blue violet Brown silver 67 times 10^1 plusminus 10 % 670 plusminus (10 %) max rightarrow 670 (670 times 0.1) = 670 + 67 = 737 min rightarrow 670 - 67 rightarrow 603 Ohm nominal rightarrow 670 Ohm
