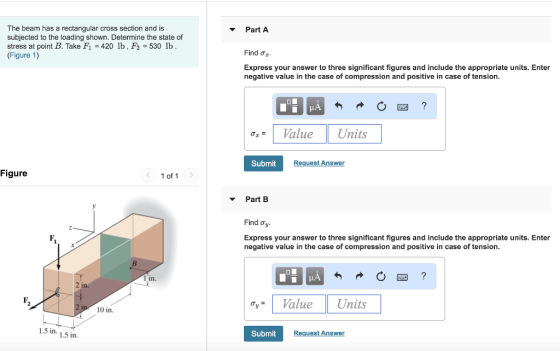

The beam has a rectangular cross section and is subjected to the loading shown. Determine the...
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figur...
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figure 1) Express your answer three significant figures and include the appropriate units. Enter negative value the case of compression and positive value in the case of tension. FAB=474 lb Previous Answers Submit Correct Part B Determine the force in member BC, and state if the member is in tension or compression. Expre value in the case...
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the m...
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. kN AB Previous Answers Request Answer Figure XIncorrect; Try Again; 2 attempts remaining Part B Determine the force in member AF, and state if...
Problem 6.4 1 of 5> Determine the force in member BI, and state if the member...
Problem 6.4 1 of 5> Determine the force in member BI, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Suppose that B = 1.3 kip and Pe = 2.4 kip·(Figure ド111 =1 Value Units Submit Request Answer Figure く 1of1 Part E 3 kip Determine the force in member CD,...
Each bar of the truss shown in the figure below has a diameter of 20 mm...
Each bar of the truss shown in the figure below has a diameter of 20 mm Suppose that P = 36 kN (Figure 1) Part A Determine the average normal stress in bar BC of the truss. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. σ1e* Value Units Submit Request Answer Part B Determine the average normal stress in the...
PartA Consider the truss shown in (Figure 1). Suppose that F 13 kN Determine the force in member CD and state if this member is in tension or compression. Express your answer to three significant fig...
PartA Consider the truss shown in (Figure 1). Suppose that F 13 kN Determine the force in member CD and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FcValue Units CD = Submit Request Answer Figure 1 of 1 Part B Determine the force in member CJ and state if this...
The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-se...
The composite shaft, consisting of aluminum, copper, and steel
sections, is subjected to the loading shown. The cross-sectional
areas of sections AB, BC , and CD are
AAB = 0.08 in2 , ABC = 0.15
in2 , and ACD = 0.05 in2 ,
respectively. The modulus of elasticity for each section are shown
in the figure. Neglect the size of the collars at B and C.
(Figure 1)
Part A
Determine the normal stress in section AB.
Express your answer...
Problem 4.3 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the...
Problem 4.3 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-sectional areas of sections AB, BC and CD are A AB = 0.10 in?. ABC = 0.14 in?, and Acp = 0.06 in?, respectively. The modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. (Figure 1) Figure 1 of 1 Aluminum El = 10(10) ksi Copper E = 18(10)...
Determine the state of stress at point A on the cross section of the pipe assembly...
Determine the state of stress at point A on the cross section of the pipe assembly at section a-a. Take Fi = 1480 N. F2 = 1090 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in the case of tension. НА ? Figure < 1 of 1 Value Units Submit Request Answer 400 mm Part B 200 mm Fi Find (Tay) Express your...
<Truss Analysis Problem 6.12 ♡ 3 of 6 > Review Suppose that P = 440 lb....
<Truss Analysis Problem 6.12 ♡ 3 of 6 > Review Suppose that P = 440 lb. PP -3ft +3ft +-3 ft OLOL BOR -9 ft Part A Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. MÅ Value FAB Units Submit Previous Answers Request Answer...
Consider the truss shown in (Figure 1). Suppose that F-4 kN and Fa = 9 kN 1 of 1 Figure 4 m 4 m ▼ Part A Determine the force in member BE and state if the member is in tension or compression E...
Consider the truss shown in (Figure 1). Suppose that F-4 kN and Fa = 9 kN 1 of 1 Figure 4 m 4 m ▼ Part A Determine the force in member BE and state if the member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Part B Determine the force in member EF and...
Determine the force in member AB, and state if the member is in tension or compression Suppose that P = 460 lb , (Figure 1) Express your answer three significant figures and include the appropriate units. Enter negative value the case of compression and positive value in the case of tension. FAB=474 lb Previous Answers Submit Correct Part B Determine the force in member BC, and state if the member is in tension or compression. Expre value in the case...
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. kN AB Previous Answers Request Answer Figure XIncorrect; Try Again; 2 attempts remaining Part B Determine the force in member AF, and state if...
Problem 6.4 1 of 5> Determine the force in member BI, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Suppose that B = 1.3 kip and Pe = 2.4 kip·(Figure ド111 =1 Value Units Submit Request Answer Figure く 1of1 Part E 3 kip Determine the force in member CD,...
Each bar of the truss shown in the figure below has a diameter of 20 mm Suppose that P = 36 kN (Figure 1) Part A Determine the average normal stress in bar BC of the truss. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. σ1e* Value Units Submit Request Answer Part B Determine the average normal stress in the...
PartA Consider the truss shown in (Figure 1). Suppose that F 13 kN Determine the force in member CD and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. FcValue Units CD = Submit Request Answer Figure 1 of 1 Part B Determine the force in member CJ and state if this...
The composite shaft, consisting of aluminum, copper, and steel
sections, is subjected to the loading shown. The cross-sectional
areas of sections AB, BC , and CD are
AAB = 0.08 in2 , ABC = 0.15
in2 , and ACD = 0.05 in2 ,
respectively. The modulus of elasticity for each section are shown
in the figure. Neglect the size of the collars at B and C.
(Figure 1)
Part A
Determine the normal stress in section AB.
Express your answer...
Problem 4.3 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-sectional areas of sections AB, BC and CD are A AB = 0.10 in?. ABC = 0.14 in?, and Acp = 0.06 in?, respectively. The modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. (Figure 1) Figure 1 of 1 Aluminum El = 10(10) ksi Copper E = 18(10)...
Determine the state of stress at point A on the cross section of the pipe assembly at section a-a. Take Fi = 1480 N. F2 = 1090 N (Figure 1) Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in the case of tension. НА ? Figure < 1 of 1 Value Units Submit Request Answer 400 mm Part B 200 mm Fi Find (Tay) Express your...
<Truss Analysis Problem 6.12 ♡ 3 of 6 > Review Suppose that P = 440 lb. PP -3ft +3ft +-3 ft OLOL BOR -9 ft Part A Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. MÅ Value FAB Units Submit Previous Answers Request Answer...
Consider the truss shown in (Figure 1). Suppose that F-4 kN and Fa = 9 kN 1 of 1 Figure 4 m 4 m ▼ Part A Determine the force in member BE and state if the member is in tension or compression Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. Part B Determine the force in member EF and...
