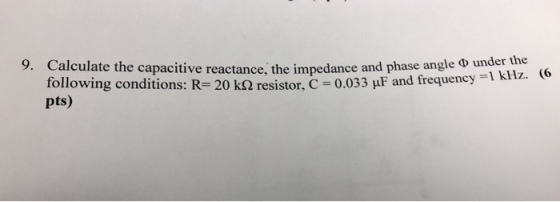

Calculate the capacitive reactance, the impedance and phase angle Φ unde following conditions: R= 20 kS2...

Question

Question

science physics

Answer 1

Answer #1

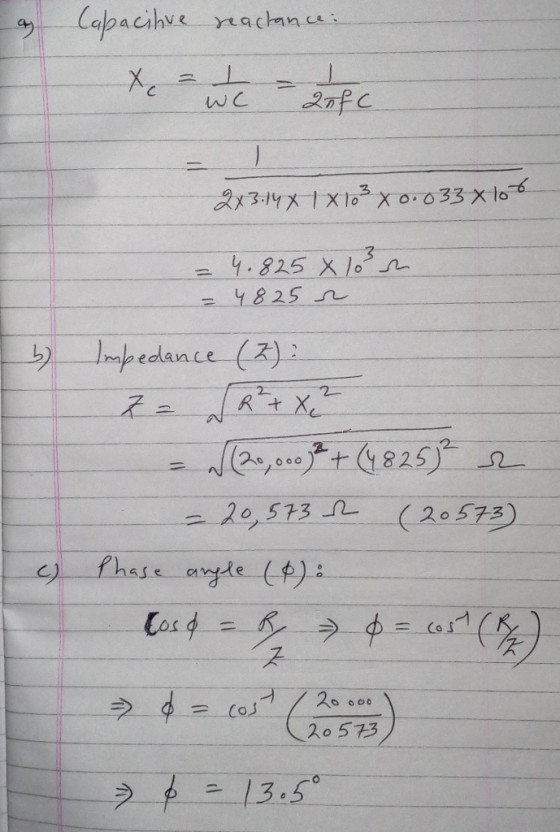

スメ-3 .lyx-/X 103 XO ,0 33X10-... - 2 20, 573 2o 573 2o573

Answer 2

Similar Homework Help Questions

Calculate the capacitive reactance, the impedance, and the phase angle, phi, for a series RC circuit...

Calculate the capacitive reactance, the impedance, and the phase angle, phi, for a series RC circuit having a frequency, f of 1.00e+05 Hz, resistance, R of 2.00e+02 ohms, and capacitance, C of 3.30e-01 uF (microfarads).
Calculate the capacitive reactance, the impedance, and the phase angle, phi, for a series RC circuit...

Calculate the capacitive reactance, the impedance, and the phase angle, phi, for a series RC circuit having a frequency, f of 1.00e+05 Hz, resistance, R of 2.00e+03 ohms, and capacitance, C of 3.30e-03 uF (microfarads)
Consider an RLC circuit where a resistor (R = 35.0 Ω), capacitor (C = 15.5 μF),...

Consider an RLC circuit where a resistor (R = 35.0 Ω), capacitor (C = 15.5 μF), and inductor (L = 0.0940 H) are connected in series with an AC source that has a frequency of 80.0 Hz. a. Determine the capacitive reactance at this frequency. b. Determine the inductive reactance at this frequency. c. Determine the total impedance. d. Determine the phase angle. e. Determine the circuit’s resonant frequency.

The capacitive reactance in an RLC circuit is determined to be 50 Ω when the inductive...

The capacitive reactance in an RLC circuit is determined to be 50 Ω when the inductive reactance is 60 Ω. Part A Is the generator frequency ω higher or lower than the natural frequency ω0? Part B Is the phase angle ϕ positive or negative? Part C Calculate the phase angle ϕ if R=33Ω.
electromagnetic 19) RLC Circuit Resonance Frequency: (12 pts) (a) Identify the relation between the capacitive reactance...

electromagnetic 19) RLC Circuit Resonance Frequency: (12 pts) (a) Identify the relation between the capacitive reactance (Xc) and inductive reactance (XL) that will minimize the total impedance (Z) of an RLC circuit. (b) Using this condition, derive the resonance frequency () of an RLC circuit. (c) Calculate the resonance frequency for an RLC circuit with: R=102 L=4H C=IF
Which of the following materials has the highest dielectric constant? A. Polypropylene B. Glass C. Mica...

Which of the following materials has the highest dielectric constant? A. Polypropylene B. Glass C. Mica D. Paper If the frequency to the circuit decreases, the capacitive reactance A. remains constant but the phase angle changes. B. remains constant as does the phase angle. C. will increase. D. will also decrease. Which of the following materials has the lowest dielectric constant? A. Mica B. Glass C. Polystyrene If a 0.05 μF capacitor and a 0.025 μF capacitor are placed in...

Show that the phase angle (argument) of the impedance between A and B in the following...

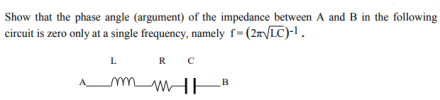

Show that the phase angle (argument) of the impedance between A and B in the following circuit is zero only at a single frequency, namely f (27LC)-1 L R. C A
In an R-L-C series circuit, the magnitude of the phase angle is 40.0o, with the source...

In an R-L-C series circuit, the magnitude of the phase angle is 40.0o, with the source voltage behind the current. The reactance of the capacitor is 300 ohms, and the resistor resistance is 150 ohms. The average power delivered by the source is 120 W. a. What is the reactance of the inductor? b. What is the impedance of the circuit? c. What is the rms current in the circuit? d. What is rms voltage of the source?
Suppose you setup an RLC circuit with the following values: R=4 ohms, L=3×10^-3H, C=8×10^-4F, and this...

Suppose you setup an RLC circuit with the following values: R=4 ohms, L=3×10^-3H, C=8×10^-4F, and this circuit is connected across an AC power supply with a peak voltage of .1v and a frequency of 200hz. A. Calculate the capacitive reactance and the inductive reactance. B. Draw a phase diagram for this circuit. C. What is the impedance and the maximum current through the power supply? D. When the current is maximal through the power supply, what is the voltage across...

Consider an RLC series circuit with R = 600 Ω, L = 3 H, C =...

Consider an RLC series circuit with R = 600 Ω, L = 3 H, C = 4μF, generator voltage V = 20 v, frequency= 60 hz. Find a) the inductive impedance XL, b) capacitive impedance Xc , c) Total impedance Z, d) Line current I , e) Voltage drops VR , VL, ,Vc f) combination voltage VRL , and VLc , g) phase angle φ , h) resonant frequency f0 , i) Power dissipated by circuit.
