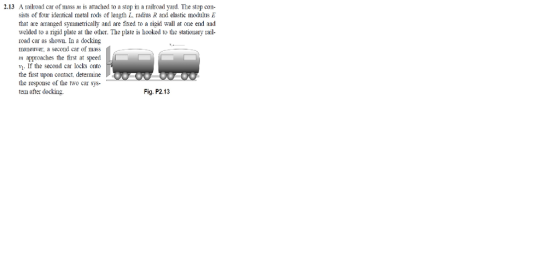

2.13 A railroad car of mass m is attached to a stop in a railroad yard....

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

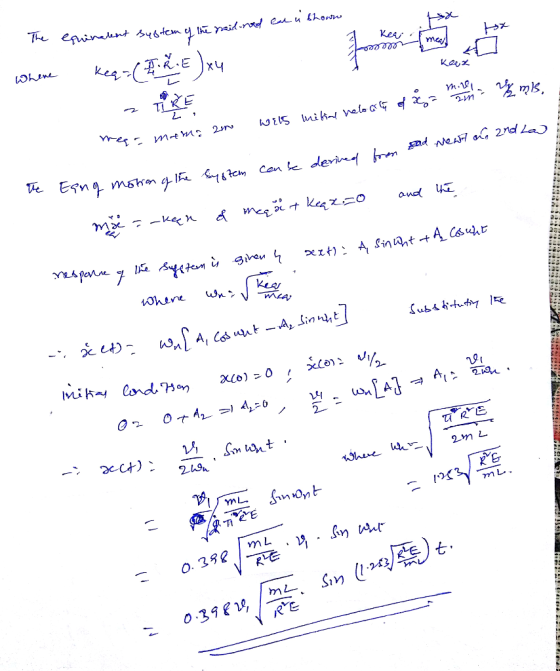

1,9ん and h sti mレ.. 尺LE 0.39819, I Y)

Answer 2

Similar Homework Help Questions

If the second car locks onto the first upon contact, determine the re sponse of the two car system after docking.

A railroad car of mass m is attached to a stop in a railroad yard. The stop consists of four identical metal rods of length L, radius R and elastic modulus E that are arranged symmetrically and are fixed to a rigid wall at one end and welded to a rigid plate at the other. The plate is hooked to the stationary railroad car as shown. In a docking maneuver, a second car of mass m approaches the first at...
Required information In the railroad freight yard, an empty freight car of mass m rolls along...

Required information In the railroad freight yard, an empty freight car of mass m rolls along a straight level track at 1.20 m/s and collides with an initially stationary, fully loaded boxcar of mass 5.70m. The two cars couple together on collision. What is the speed of the two cars after the collision? m/s
In the railroad freight yard, an empty freight car of mass m rolls along a straight...

In the railroad freight yard, an empty freight car of mass m rolls along a straight level track at 1.20 m/s and collides with an initially stationary, fully loaded boxcar of mass 5.20m. The two cars couple together on collision. A). What is the speed of the two cars after the collision? B). Suppose instead that the two cars are at rest after the collision. With what speed was the loaded boxcar moving before the collision if the empty one...
