Question

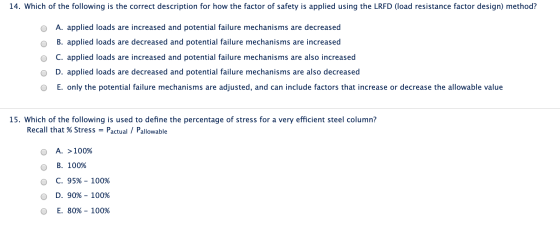

14. Which of the following is the correct description for how the factor of safety is applied using the LRFD (load resistance

0 0
Add a comment Improve this question Transcribed image text
Answer #1

14. Option C is correct i.e. both applied loads and potential failure mechanisms are increased in LFRD method. Loads are increased by applying factor of safety and potential mechanism failures are considered by combinations of various type of loads and individual loads alone.

15. Option D is correct. Percenatge stress of 90- 100% represents a very efficient steel column

Add a comment
