Air is contained in a 100 liter rigid tank and is initially at 40 oC and...

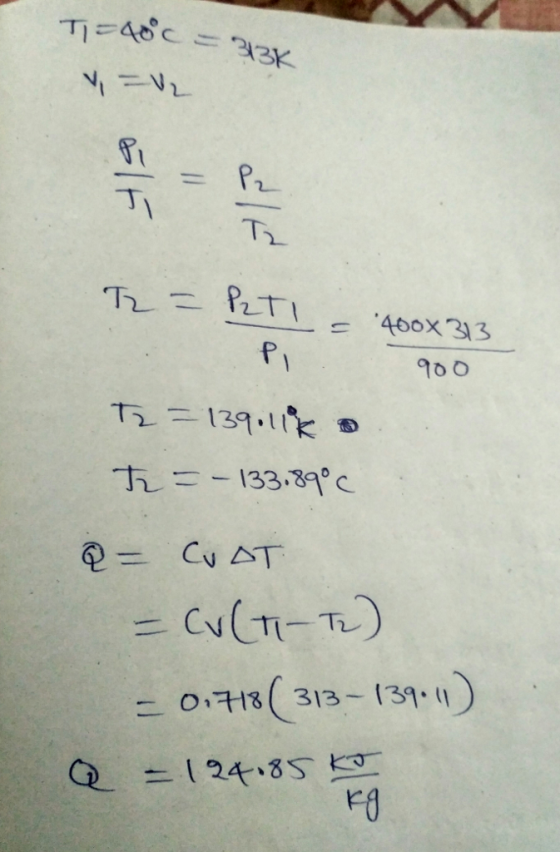

Air is contained in a 100 liter rigid tank and is initially at 40 oC and 900 kPa. The air is cooled until the pressure drops to 400 kPa. Find the final temperature and the amount of heat transfer during the process. Consider air as ideal gas with constant specific heat.
Homework Answers
Add Answer to:
Air is contained in a 100 liter rigid tank and is initially at
40 oC and...
Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 oC....
Initially 38 kg of Methane is contained in a 200 liter rigid tank at -50 oC. The Methane start to leak slowly in an isothermal process until half of the initial mass has escaped. What is the amount of pressure drop during the process? *Note*: only assume ideal gas if it specifically says to do so, otherwise use compressibility chart.
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of 4.2 m3, is heated to a final pressure of 9.4 bar. Assuming the ideal gas model with k = 1.6 for the argon, determine the heat transfer, in kJ. 2.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 223°C from a pressure of 5.4 bar to a pressure of 1.9 bar. Evaluate the work, in kJ/kg. 3.A mass of 4 kilograms...
1. A) Argon contained in a closed, rigid tank, initially at 36.3°C, 2.8 bar, and a...
1. A) Argon contained in a closed, rigid tank, initially at 36.3°C, 2.8 bar, and a volume of 1.4 m3, is heated to a final pressure of 9.9 bar. Assuming the ideal gas model with k = 1.53 for the argon, determine the heat transfer, in kJ. B) Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 6 bar and 435 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.5 =...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature 25°C There. It is applied to the tank feed line by a valve. Pressure of air flowing through the supply line 600 kPa and temperature is 25°C. By opening the valve, the pressure of the air in the tank is air entering the tank until it is equal to the pressure of the air It is closed. A thermometer placed in the tank lasts...
Problem 6.028 SI Air contained in a rigid, insulated tank fitted with a paddle wheel, initially...
Problem 6.028 SI Air contained in a rigid, insulated tank fitted with a paddle wheel, initially at 300 K, 2 bar, and a volume of 2 m, is stirred until its temperature is 600 K. Assuming the ideal gas model for the air, and ignoring kinetic and potential energy, determine (a) the final pressure, in bar (b) the work, in kJ (c) the amount of entropy produced, kJ/K Solve using: (1) data from Table A-22. (2) constant cy read from...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600 K. Now...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600
K. Now O2 is gradually cooled under constant volume until its
temperature reaches 455 K. (18 Points) (a) Calculate the pressure
of O2 at final state. (4 points) (b) Determine the boundary work.
(6 points) (b) Calculate the heat transfer during this process. (8
Points)
let me know if u want the property table
MAE 320 - Thermodynamics + > e ecampus.wvu.edu/bbcswebdav/pid-6846897-dt-content-rid-82617141 1/courses/star50314.202005/MAE320-2020-Summer-HW04.pdf Q4 to Q6...
Using Energy Concepts and the Ideal Gas ModelArgon contained in a closed, rigid tank, initially at...
Using Energy Concepts and the Ideal Gas ModelArgon contained in a closed, rigid tank, initially at 50°C, 2 bar, and a volume of 2 m3, is heated to a final pressure of 8 bar. Assuming the ideal gas model with k = 1.67 for the argon, determine the final temperature, in °C, and the heat transfer, in kJ.
1. A) Argon contained in a closed, rigid tank, initially at 32.7°C, 1.5 bar, and a...
1. A) Argon contained in a closed, rigid tank, initially at 32.7°C, 1.5 bar, and a volume of 0.9 m3, is heated to a final pressure of 9.2 bar. Assuming the ideal gas model with k = 1.53 for the argon, determine the heat transfer, in kJ. B) Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 8.6 bar and 422 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.4 =...
1. .A 3-m rigid tank contains hydrogen at 250 kPa and 550 K. The gas is...
1. .A 3-m rigid tank contains hydrogen at 250 kPa and 550 K. The gas is now cooled until its temperature drops to 350 K. Determine (a) the final pressure in the tank and (b) the amount of heat transfer.
Two rigid tanks are connected by a valve. Initially, one tank contains 10 mº of helium...
Two rigid tanks are connected by a valve. Initially, one tank contains 10 mº of helium (He) gas at 220 kPa, 40°C? The other tank initially contains 4.0 R of neon (Ne) gas at 150 kPa, sot. Now the valve is opened, allowing the two gases to mix with each other. Heat transfer occurs during the mixing process. The final equilibrium temperature is 44'C. The specific heats of monatomic gases are independent of temperature. Determine: (a) the final volume of...
4) Volume 2.5 m^3 air in a rigid tank with initial pressure 100 kPa and temperature 25°C There. It is applied to the tank feed line by a valve. Pressure of air flowing through the supply line 600 kPa and temperature is 25°C. By opening the valve, the pressure of the air in the tank is air entering the tank until it is equal to the pressure of the air It is closed. A thermometer placed in the tank lasts...
Problem 6.028 SI Air contained in a rigid, insulated tank fitted with a paddle wheel, initially at 300 K, 2 bar, and a volume of 2 m, is stirred until its temperature is 600 K. Assuming the ideal gas model for the air, and ignoring kinetic and potential energy, determine (a) the final pressure, in bar (b) the work, in kJ (c) the amount of entropy produced, kJ/K Solve using: (1) data from Table A-22. (2) constant cy read from...
5. A rigid tank initially contains 10 kg O2 at 200 kPa and 600
K. Now O2 is gradually cooled under constant volume until its
temperature reaches 455 K. (18 Points) (a) Calculate the pressure
of O2 at final state. (4 points) (b) Determine the boundary work.
(6 points) (b) Calculate the heat transfer during this process. (8
Points)
let me know if u want the property table
MAE 320 - Thermodynamics + > e ecampus.wvu.edu/bbcswebdav/pid-6846897-dt-content-rid-82617141 1/courses/star50314.202005/MAE320-2020-Summer-HW04.pdf Q4 to Q6...
1. .A 3-m rigid tank contains hydrogen at 250 kPa and 550 K. The gas is now cooled until its temperature drops to 350 K. Determine (a) the final pressure in the tank and (b) the amount of heat transfer.
Two rigid tanks are connected by a valve. Initially, one tank contains 10 mº of helium (He) gas at 220 kPa, 40°C? The other tank initially contains 4.0 R of neon (Ne) gas at 150 kPa, sot. Now the valve is opened, allowing the two gases to mix with each other. Heat transfer occurs during the mixing process. The final equilibrium temperature is 44'C. The specific heats of monatomic gases are independent of temperature. Determine: (a) the final volume of...
