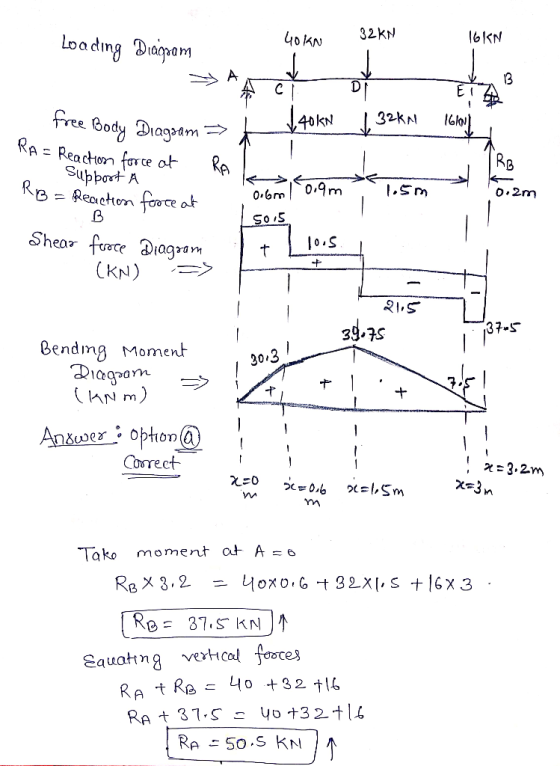

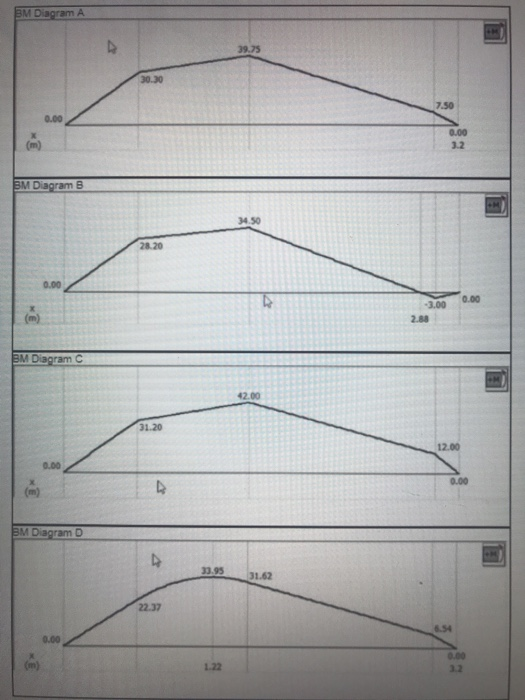

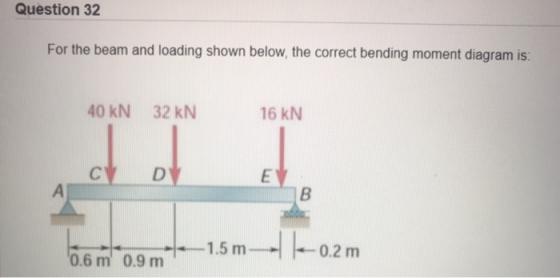

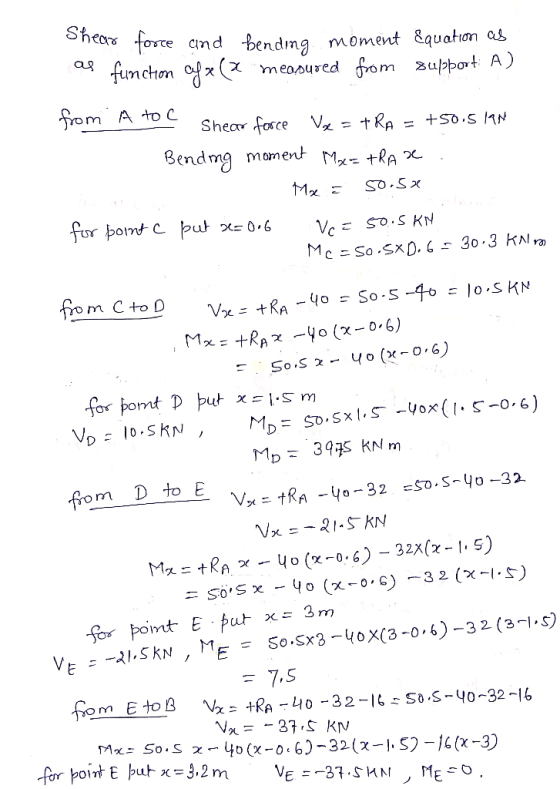

Question 32 For the beam and loading shown below, the correct bending moment diagram is 16...
elpSave & Exit Su Consider the given beam and loading. 32 kN 40 kN 16 kN...
elpSave & Exit Su Consider the given beam and loading. 32 kN 40 kN 16 kN 1.5 m0.2 nm 0.6 m 0.9 m Draw the shear and bending-moment diagrams for the beam and loading shown. (You must provide an answer before moving on to the next part.)
For the beam and loading shown, draw the shear and bending moment diagrams, and determine the...
For the beam and loading shown, draw the shear and bending moment diagrams, and determine the magnitude and location of the maximum shear and bending moment. 2 kN/m AC D 6 NT 3kN/m lm-- 1.2 m 0.6 m
4. Use the Beam Loading Diagrams. Draw the Shear Diagram and Bending Moment Diagram. Indicate the...
4. Use the Beam Loading Diagrams. Draw the Shear Diagram and Bending Moment Diagram. Indicate the factored Reactions, the maximum Mf (kNm) and the maximum Vf (kN) wf-15kN/m 10m Rf= Rf- /2 Vf 13 Shear Diagram (kN) Mf 13 Bending Moment Diagram (kNm)
32 For the beam and loading shown, (a) draW -moment diagrams, (b) bending moment. determine the...
32 For the beam and loading shown, (a) draW -moment diagrams, (b) bending moment. determine the maximum absolute 2 Fig. P7.32 beam and loading shown, (a) draw the shear and
4. For the beam and loading shown, draw the shear force and bending moment diagrams and...
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
For the beam and loading shown draw a shear and moment diagram then determine the minimum...
For the beam and loading shown draw a shear and moment diagram
then determine the minimum required width b, knowing that for the
grade of timber used, the maximum allowable normal stress is 12 MPa
and the maximum allowable shear stress is 822 kPa. The dimensions
are the following: a = 148 mm, LAB = 0.9 m,
LBC = 1.1 m, LCE = 1.1 m, LED =
0.5 m, and the loading is PB = 2.3 kN, PC =
4.7...
d 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine...
d 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. 160 KN 80 kN/m Hinge MB10 X 60 2.4 m m 1.0 D
S4. For the beam with loading shown in Figure 4.0, a. Draw the shear and bending-moment...
S4. For the beam with loading shown in Figure 4.0, a. Draw the shear and bending-moment diagrams for the beamA b. Deternine the maximum normal stress due to bending and shearing stress of the beams 45 kN m 16 kN m 250 mm A 75 mm 2.4 m 1.2 m Figure 4.0
For the beam and loading shown, (a) draw thr shear and bending-moment diagram, (b) determine the...
For the beam and loading shown, (a) draw thr shear and
bending-moment diagram, (b) determine the maximum absolute value of
the bending moment.
Fig. P7.31
For the beam shown below, determine (1) magnitude of the bending moment at the pin support...
For the beam shown below, determine (1) magnitude of the bending
moment at the pin support A; and (2)the magnitude of shear force at
the immediate right side of the pin support A.
For the beam shown below, determine (1) magnitude of the bending moment at the pin support A; and (2) the magnitude of shear force at the immediate right side of the pin support A. 2 kN/m 1.5 kN 30° 1.2 m 0.6 1.2 m 1.8 m 1.2...
elpSave & Exit Su Consider the given beam and loading. 32 kN 40 kN 16 kN 1.5 m0.2 nm 0.6 m 0.9 m Draw the shear and bending-moment diagrams for the beam and loading shown. (You must provide an answer before moving on to the next part.)
For the beam and loading shown, draw the shear and bending moment diagrams, and determine the magnitude and location of the maximum shear and bending moment. 2 kN/m AC D 6 NT 3kN/m lm-- 1.2 m 0.6 m
4. Use the Beam Loading Diagrams. Draw the Shear Diagram and Bending Moment Diagram. Indicate the factored Reactions, the maximum Mf (kNm) and the maximum Vf (kN) wf-15kN/m 10m Rf= Rf- /2 Vf 13 Shear Diagram (kN) Mf 13 Bending Moment Diagram (kNm)
32 For the beam and loading shown, (a) draW -moment diagrams, (b) bending moment. determine the maximum absolute 2 Fig. P7.32 beam and loading shown, (a) draw the shear and
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
For the beam and loading shown draw a shear and moment diagram
then determine the minimum required width b, knowing that for the
grade of timber used, the maximum allowable normal stress is 12 MPa
and the maximum allowable shear stress is 822 kPa. The dimensions
are the following: a = 148 mm, LAB = 0.9 m,
LBC = 1.1 m, LCE = 1.1 m, LED =
0.5 m, and the loading is PB = 2.3 kN, PC =
4.7...
d 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. 160 KN 80 kN/m Hinge MB10 X 60 2.4 m m 1.0 D
S4. For the beam with loading shown in Figure 4.0, a. Draw the shear and bending-moment diagrams for the beamA b. Deternine the maximum normal stress due to bending and shearing stress of the beams 45 kN m 16 kN m 250 mm A 75 mm 2.4 m 1.2 m Figure 4.0
For the beam and loading shown, (a) draw thr shear and
bending-moment diagram, (b) determine the maximum absolute value of
the bending moment.
Fig. P7.31
For the beam shown below, determine (1) magnitude of the bending
moment at the pin support A; and (2)the magnitude of shear force at
the immediate right side of the pin support A.
For the beam shown below, determine (1) magnitude of the bending moment at the pin support A; and (2) the magnitude of shear force at the immediate right side of the pin support A. 2 kN/m 1.5 kN 30° 1.2 m 0.6 1.2 m 1.8 m 1.2...
