Homework Answers
Here

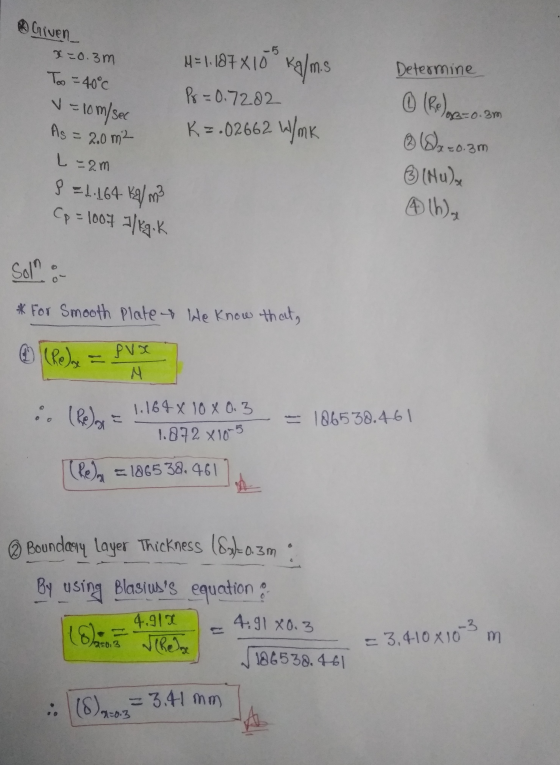

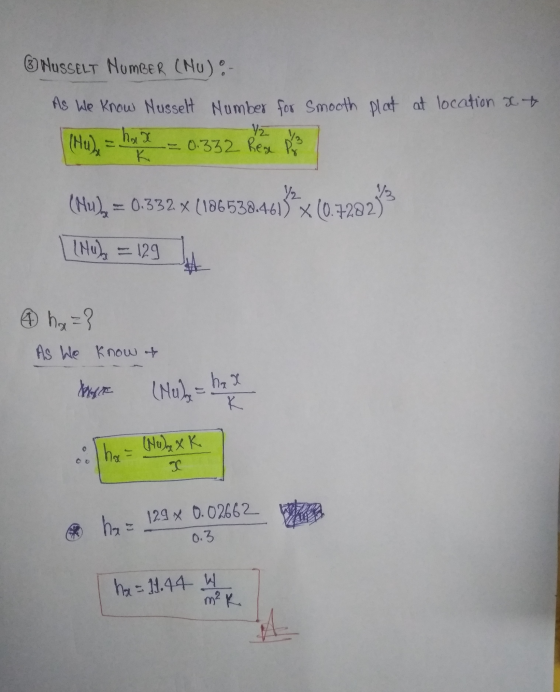

is complete details about your question in problem number 2 it may
be using other equation but here i am using Blasius equation so it
is correct answer may be vary something but process is correct. I
hope you will be happy to see solution plz like ??????? and give
positive feedback.
Thanks
Add Answer to:

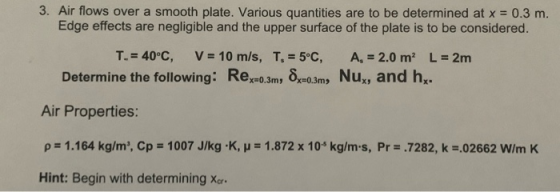

3. Air flows over a smooth plate. Various quantities are to be determined at x =...
Air at T=25°C and pressure P=1 bar flows over a square plate with a velocity V=1...
Air at T=25°C and pressure P=1 bar flows over a square plate with a velocity V=1 m/s. This plate has a length L= 1 m and it is heated over its entire length; the plate temperature is constant Tp=100°C. The following data are given. For air: dynamic viscosity: mu = 1.9*10–5 kg/(m.s); density: rho = 1.05 kg/m3; conductivity k = 0.03 W/(m K); Specific heat Cp = 1.007 kJ/(kg K); Prandtl number Pr = 0.7 For laminar flow over a...
Air flows at 30 ° C at a uniform speed of 23 m / s along...
Air flows at 30 ° C at a uniform speed of 23 m / s along a smooth flat plate. Calculate the approximate location x along the plate where the boundary layer is likely to be completely turbulent. Air density and viscosity at T = 30 °C are 1.164 kg / m3 and 1.872 x 10-5 kg / m, respectively. The critical Reynolds number is 100,000 and the turbulent flow begins at 30 times the critical Reynolds number. 20:19 small...
Air flows with a velocity of 20 m/s over a flat plate of length 2 m....
Air flows with a velocity of 20 m/s over a flat plate of length 2 m. The air properties are k = 0.030 W/mK, V = 20.92 x 10-6 m/s, Pr=0.700. a. What type(s) of flow (laminar/turbulent) exist on this plate? b. If the following relations are given for the laminar and turbulent local convection coefficients over the plate, haminar (x) = 20 houwbudemo (x) = .52 where x is the distance from the plate leading edge. Find the average...
4) Air at 101 kPa and 360 K flows at 15 m/s over a flat plate...
4) Air at 101 kPa and 360 K flows at 15 m/s over a flat plate maintained at 300 K Assume that the transition Reynolds number is 5x10 (0.332R 12Pr1/3 Re < 5 x 105 0.029Repr0:43 5 x 105 < Re <3 x 107 Assume that k-0.03 W/( mK), 20x10* m?ls, Pr-0.7.p=1.16 kg/m a) If the plate is 2 m long, sketch the local heat transfer coefficient over the plate. Specify the functional form of h with respect tox b)...
Air at 25 °C and 1 atm is flowing over a long flat plate with a...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
Consider air flows with velocity of U?=U= 10 m/s over a semi-finite smooth flat plate with...
Consider air flows with velocity of U?=U= 10 m/s over a
semi-finite smooth flat plate with L=97 cm long. Calculate the
followings by assuming ? = 1.568 x 10-5 m2/s and ?=1.177
kg/m3.
Figure 1 : Boundary layer over a flat plate
Consider air flows with velocity of U?=U=10 m/s over a
semi-finite smooth flat plate with L=97 cm long. Calculate the
followings by assuming ? = 1.568 x 10-5 m2/s and ?=1.177
kg/m3.
b) Under some flow and boundary...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
8) Air flows over a flat plate at a velocity of 20 m/s and a temperature...
8) Air flows over a flat plate at a velocity of 20 m/s and a temperature of 20C. The surface temperature of the plate is 134C, and the length of the plate in the direction of flow is 1.5 m. Properties of air may be taken as A-0.030 W/m-C, Pr-0.700, and a/p 2.092E-5 m/s (5% ) What is the location from the leading edge, X, where the flow becomes turbulent Re (20)15 a l Ve30s T20 T LaLS 523 m...
2. (25 pts) Engine oil flows with a velocity of 6 m/s over a flat plate...
2. (25 pts) Engine oil flows with a velocity of 6 m/s over a flat plate having 1m length and 1 m width. The oil has a free stream temperature To= 80 °C and the plate surface temperature is maintained at Ts = 0 °C. a. Determine whether the flow over the plate transitions to turbulent regime. b. Calculate the average friction factor and the average heat transfer coefficient for the plate by using the appropriate correlations. c. Calculate the...
Air at a temperature of 300 K flows over one side of a flat plate of...
Air at a temperature of 300 K flows over one side of a flat plate of width 1 m at a velocity of 20 m/s. The plate has a constant surface temperature of 350 K. Assume Re(x,c)=5x10^5. a) What is the velocity boundary layer thickness at the end of the plate if L=0.25 m? What if L=1 m? b) Calculate the drag on the plate if L=0.25 m. What is the drag if L=1 m? c) Find the heat transfer...
Air flows at 30 ° C at a uniform speed of 23 m / s along a smooth flat plate. Calculate the approximate location x along the plate where the boundary layer is likely to be completely turbulent. Air density and viscosity at T = 30 °C are 1.164 kg / m3 and 1.872 x 10-5 kg / m, respectively. The critical Reynolds number is 100,000 and the turbulent flow begins at 30 times the critical Reynolds number. 20:19 small...
Air flows with a velocity of 20 m/s over a flat plate of length 2 m. The air properties are k = 0.030 W/mK, V = 20.92 x 10-6 m/s, Pr=0.700. a. What type(s) of flow (laminar/turbulent) exist on this plate? b. If the following relations are given for the laminar and turbulent local convection coefficients over the plate, haminar (x) = 20 houwbudemo (x) = .52 where x is the distance from the plate leading edge. Find the average...
4) Air at 101 kPa and 360 K flows at 15 m/s over a flat plate maintained at 300 K Assume that the transition Reynolds number is 5x10 (0.332R 12Pr1/3 Re < 5 x 105 0.029Repr0:43 5 x 105 < Re <3 x 107 Assume that k-0.03 W/( mK), 20x10* m?ls, Pr-0.7.p=1.16 kg/m a) If the plate is 2 m long, sketch the local heat transfer coefficient over the plate. Specify the functional form of h with respect tox b)...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
8) Air flows over a flat plate at a velocity of 20 m/s and a temperature of 20C. The surface temperature of the plate is 134C, and the length of the plate in the direction of flow is 1.5 m. Properties of air may be taken as A-0.030 W/m-C, Pr-0.700, and a/p 2.092E-5 m/s (5% ) What is the location from the leading edge, X, where the flow becomes turbulent Re (20)15 a l Ve30s T20 T LaLS 523 m...
2. (25 pts) Engine oil flows with a velocity of 6 m/s over a flat plate having 1m length and 1 m width. The oil has a free stream temperature To= 80 °C and the plate surface temperature is maintained at Ts = 0 °C. a. Determine whether the flow over the plate transitions to turbulent regime. b. Calculate the average friction factor and the average heat transfer coefficient for the plate by using the appropriate correlations. c. Calculate the...
