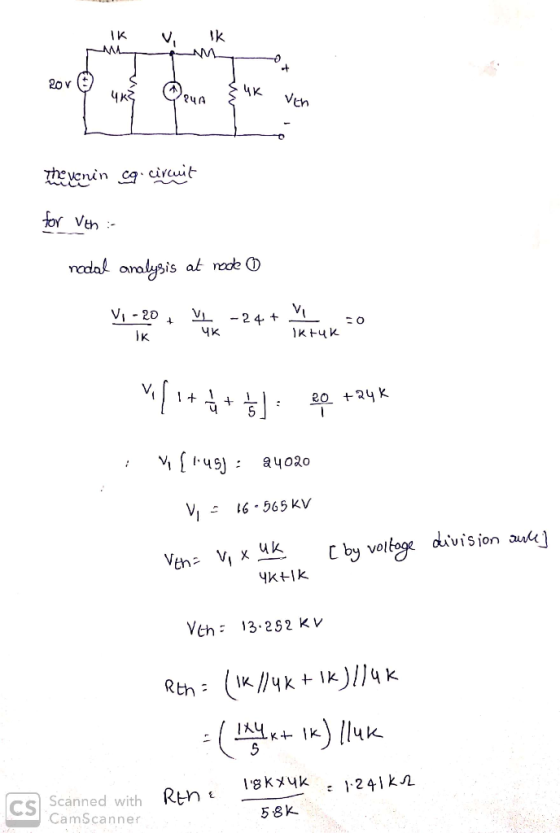

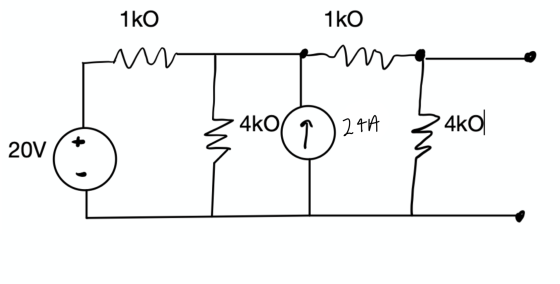

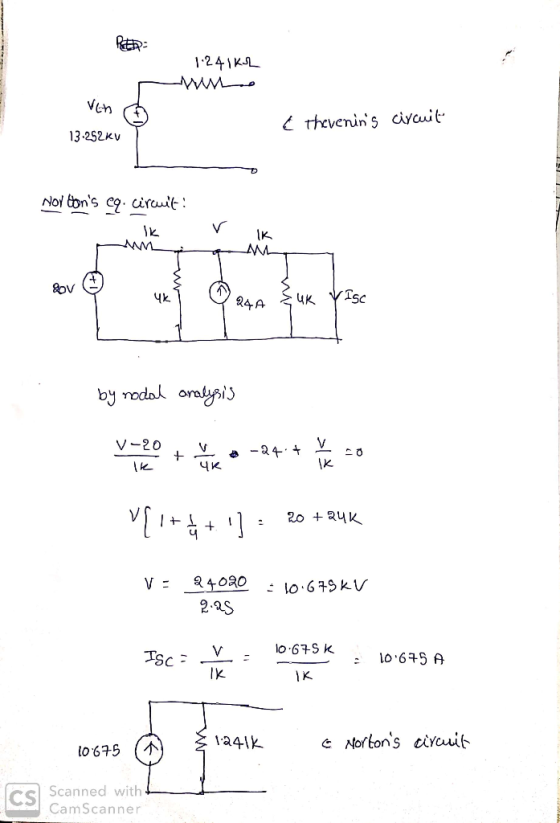

Find Thevenin Eq Circuit and Norton Eq Circuit. also solve for
Isc. The current source is 24A.
Homework Answers
Add Answer to:
Find Thevenin Eq Circuit and Norton Eq Circuit. also solve for
Isc. The current source is...
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc,...
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V, 24V 40 3A 80
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc,...
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V, D 24 V 3 A 80
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc,...
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V₃ D 24 V 40 3A 80
Find the Norton and thevenin eq curcuits (keep in mind of the 20u(t) (
find the Norton and thevenin eq curcuits (keep in mind
of the 20u(t)
(
3 OC- 0Je Doule nt4 nH
3 OC- 0Je Doule nt4 nH
Find the Thevenin and Norton equivalent circuit for the below circuit shown
Find the Thevenin and Norton equivalent circuit for the below circuit shown
5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN...
5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN and Norton equivalent parallel resistance RN with respect to load terminals a and b. Then use your Norton equivalent circuit in part (b) to find the load resistance R mas that would result in the maximum power transfer from the source, and calculate the maximum power. (120 pt, 60 pt) (a) RN IN P MAX (b) R LMAX 10n 30A S20n Ta 10A on...
Problem #1 Solve for the Thevenin Equivalent for circuit 1 and the Norton Equivalent for circuit...
Problem #1 Solve for the Thevenin Equivalent for circuit 1 and
the Norton Equivalent for circuit 2 with the following values for
X.
a) X = 9 Ω resistor
b) X = 1 H inductor
c) X = ¼ F capacitor Problem
#2 Place a 4 Ω resistor across the + and – connecters in Problem
#1 and solve for the value of voltage across and the current
through the 4 Ω resistor for each value used for X.
ਲਾਸ...
Fing the Thevenin and Norton Equivalent circuit. please explain with clear steps. Find: a) Thevenin equivalent...
Fing the Thevenin and Norton Equivalent circuit.
please explain with clear steps.
Find:
a) Thevenin equivalent
b) Norton equivalent
R, - 180 W R-112 -sv 3R, -4.7K9 3R, -2.269 SR.-5.6 kA
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...
Find the Thevenin and Norton equivalent circuit at
terminals a-b for the circuit shown below, where R =10 ohms. Please
report your answer so the magnitude is positive and all angles are
in the range of negative 180 degrees to positive 180 degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 10 . Please report your answer so the magnitude is positive and all angles are in the range of...
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...
Find the Thevenin and Norton equivalent circuit at terminals
a-b for the circuit shown below, where R
= 12 Ω. Please report your answer so the magnitude is positive and
all angles are in the range of negative 180 degrees to positive 180
degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V, 24V 40 3A 80
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V, D 24 V 3 A 80
1. Dependent Source and Thevenin Resistance Using open circuit voltage Voc and short circuit current Isc, determine the Thevenin equivalent resistance in () of the circuit shown with respect to the nodes and 2V₃ D 24 V 40 3A 80
find the Norton and thevenin eq curcuits (keep in mind
of the 20u(t)
(
3 OC- 0Je Doule nt4 nH
3 OC- 0Je Doule nt4 nH
5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN and Norton equivalent parallel resistance RN with respect to load terminals a and b. Then use your Norton equivalent circuit in part (b) to find the load resistance R mas that would result in the maximum power transfer from the source, and calculate the maximum power. (120 pt, 60 pt) (a) RN IN P MAX (b) R LMAX 10n 30A S20n Ta 10A on...
Problem #1 Solve for the Thevenin Equivalent for circuit 1 and
the Norton Equivalent for circuit 2 with the following values for
X.
a) X = 9 Ω resistor
b) X = 1 H inductor
c) X = ¼ F capacitor Problem
#2 Place a 4 Ω resistor across the + and – connecters in Problem
#1 and solve for the value of voltage across and the current
through the 4 Ω resistor for each value used for X.
ਲਾਸ...
Fing the Thevenin and Norton Equivalent circuit.
please explain with clear steps.
Find:
a) Thevenin equivalent
b) Norton equivalent
R, - 180 W R-112 -sv 3R, -4.7K9 3R, -2.269 SR.-5.6 kA
Find the Thevenin and Norton equivalent circuit at
terminals a-b for the circuit shown below, where R =10 ohms. Please
report your answer so the magnitude is positive and all angles are
in the range of negative 180 degrees to positive 180 degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 10 . Please report your answer so the magnitude is positive and all angles are in the range of...
Find the Thevenin and Norton equivalent circuit at terminals
a-b for the circuit shown below, where R
= 12 Ω. Please report your answer so the magnitude is positive and
all angles are in the range of negative 180 degrees to positive 180
degrees.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...
