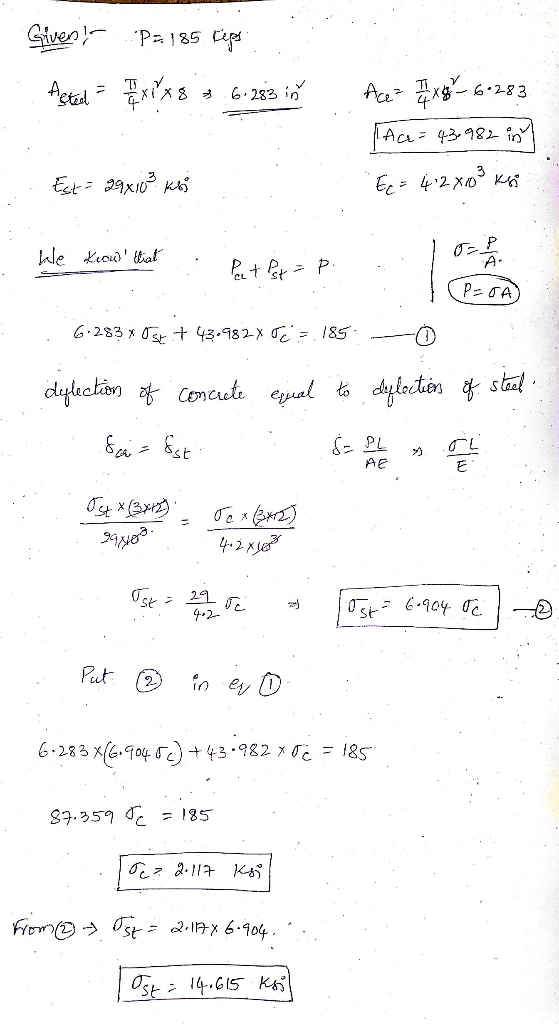

us Determine the average normal stress in the concrete and in each rod P=185 kip. Each...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The column is subjected to an axial force of P 190 kip Each rod has a diameter of 1 in. For A992 steel Et 29.0(103) ksi, and for high-strength concrete Ee 4.20(10) ksi (Figure 1) Determine the average normal stress in the concrete and in each rod Express your answer to three significant figures and include appropriate units o,o.-1 Value Units | Submit Part B...
Determine the average normal stress developed in rod AB if the load has a mass of...
Determine the average normal stress developed in rod AB if the load has a mass of 66 kg . The diameter of rod AB is 8 mm.
undamental Problem 1.9 Part A Determine the average normal stress Figure 1) Express your answer to...
undamental Problem 1.9 Part A Determine the average normal stress Figure 1) Express your answer to on the cross section Take P-21 kip ue Units Request Answer Provide Feedback I in. 4 in. 1 in. 4 in. l in.
help The yoke-and-rod connection is subjected to a tensile force of 5 kN. Determine the average normal stress in each...
help
The yoke-and-rod connection is subjected to a tensile force of 5 kN. Determine the average normal stress in each rod and the average shear stress in the pin A between the members.
The diameter of each segment is indicated in the figure below.
The diameter of each segment is indicated in the figure below. Take P1 = 1 kip , P2 = 6 kip , P3 = 9 kip , and P4 = 4 kip . (Figure 1)Part A Determine the average normal stress developed at point A. Part B Determine the average normal stress developed at point B. Part C Determine the average normal stress developed at point C.
ANSWER QUESTION 9 FOR 7.19. PLEASE AND THANK YOU. 9) Application of stress transformation. Determine normal...
ANSWER QUESTION 9 FOR 7.19. PLEASE AND
THANK YOU.
9) Application of stress transformation. Determine normal stress due to P and shear stress due to T. Understand the subscripts of these stress components. Apply the transformation equations to get the normal and shear stress on the weld (need figure out the angle first). PROBLEM 7.19 A steel pipe of 12-in. outer diameter is fabricated from 1-in-thick plate by welding along a helix that forms an angle of 22.50 with a...
Learning Goal: To determine the state of stress in a solid rod using the principle of...
Learning Goal: To determine the state of stress in a solid rod using the principle of superposition. A solid rod has a diameter of e = 55 mm and is subjected to the loading shown. Let a = 190 mm, b = 220 mm , c = 350 mm, d = 240 mm , and P = 4.0 kN. Take point A to be at the top of the circular cross-section. (Figure 1) Figure < 1 of 2 b В...
Each bar of the truss shown in the figure below has a diameter of 20 mm. Suppose that P = 33kN . Determine the avera...
Each bar of the truss shown in the figure below has a diameter
of 20 mm. Suppose that
P = 33kN
.
Determine the average normal stress in bar BC of the truss.
Determine the average normal stress in the bar AC of the truss.
Determine the average normal stress in the bar ABof the truss.
Each bar of the truss shown in the figure below has a diameter of 20 mm. Suppose that P = 33kN . Determine the...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
Please answer a, b, and c. P1.28 The solid rod shown in Figure P1.28 is of...
Please answer a, b, and c.
P1.28 The solid rod shown in Figure P1.28 is of diameter d= 15 mm and passes through a hole of diameter D = 20 mm in the support plate. When a load P is applied to the rod, the rod head rests on the plate, which has a thickness b= 12 mm. The rod head has a diameter a=30 mm and a thickness t = 10 mm. If the normal stress produced in the...
Part A The column is constructed from high-strength concrete and eight A992 steel reinforcing rods. The column is subjected to an axial force of P 190 kip Each rod has a diameter of 1 in. For A992 steel Et 29.0(103) ksi, and for high-strength concrete Ee 4.20(10) ksi (Figure 1) Determine the average normal stress in the concrete and in each rod Express your answer to three significant figures and include appropriate units o,o.-1 Value Units | Submit Part B...
Determine the average normal stress developed in rod AB if the load has a mass of 66 kg . The diameter of rod AB is 8 mm.
undamental Problem 1.9 Part A Determine the average normal stress Figure 1) Express your answer to on the cross section Take P-21 kip ue Units Request Answer Provide Feedback I in. 4 in. 1 in. 4 in. l in.
help
The yoke-and-rod connection is subjected to a tensile force of 5 kN. Determine the average normal stress in each rod and the average shear stress in the pin A between the members.
ANSWER QUESTION 9 FOR 7.19. PLEASE AND
THANK YOU.
9) Application of stress transformation. Determine normal stress due to P and shear stress due to T. Understand the subscripts of these stress components. Apply the transformation equations to get the normal and shear stress on the weld (need figure out the angle first). PROBLEM 7.19 A steel pipe of 12-in. outer diameter is fabricated from 1-in-thick plate by welding along a helix that forms an angle of 22.50 with a...
Learning Goal: To determine the state of stress in a solid rod using the principle of superposition. A solid rod has a diameter of e = 55 mm and is subjected to the loading shown. Let a = 190 mm, b = 220 mm , c = 350 mm, d = 240 mm , and P = 4.0 kN. Take point A to be at the top of the circular cross-section. (Figure 1) Figure < 1 of 2 b В...
Each bar of the truss shown in the figure below has a diameter
of 20 mm. Suppose that
P = 33kN
.
Determine the average normal stress in bar BC of the truss.
Determine the average normal stress in the bar AC of the truss.
Determine the average normal stress in the bar ABof the truss.
Each bar of the truss shown in the figure below has a diameter of 20 mm. Suppose that P = 33kN . Determine the...
326 СНАРТER 6 BENDING EXAMPLE 6.18 The reinforced concrete beam has the cross-sectional area shown in Fig. 6-39a. If it is subjected to a bending moment of M = 60 kip ft determine the normal stress in each of the steel reinforcing rods and the maximum normal stress in the concrete. Take Est = 29(10) ksi and Econc = 3.6(103) ksi SOLUTION Since the beam is made of concrete, in the following analysis we will neglect its strength in supporting...
Please answer a, b, and c.
P1.28 The solid rod shown in Figure P1.28 is of diameter d= 15 mm and passes through a hole of diameter D = 20 mm in the support plate. When a load P is applied to the rod, the rod head rests on the plate, which has a thickness b= 12 mm. The rod head has a diameter a=30 mm and a thickness t = 10 mm. If the normal stress produced in the...
