slope and deflection please
Consider the beam and loading shown. Assume that the flexural rigidity El...
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is...
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant. L/2 References eBook & Resources Section Break Difficulty Easy 4. value: 10.00 points Determine the deflection at mid span of span AB. (Round the final answer to four decimal places.) ↓ The deflection at mid span is
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant...

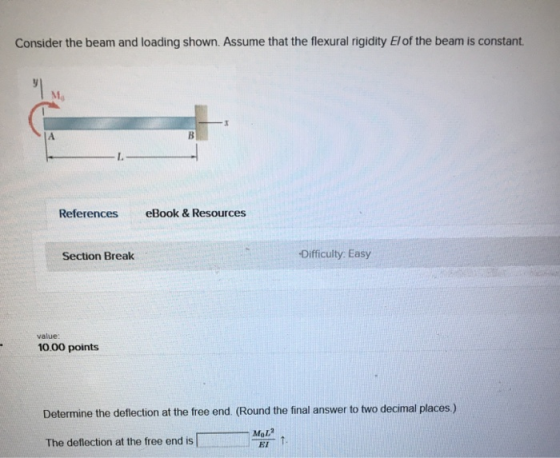

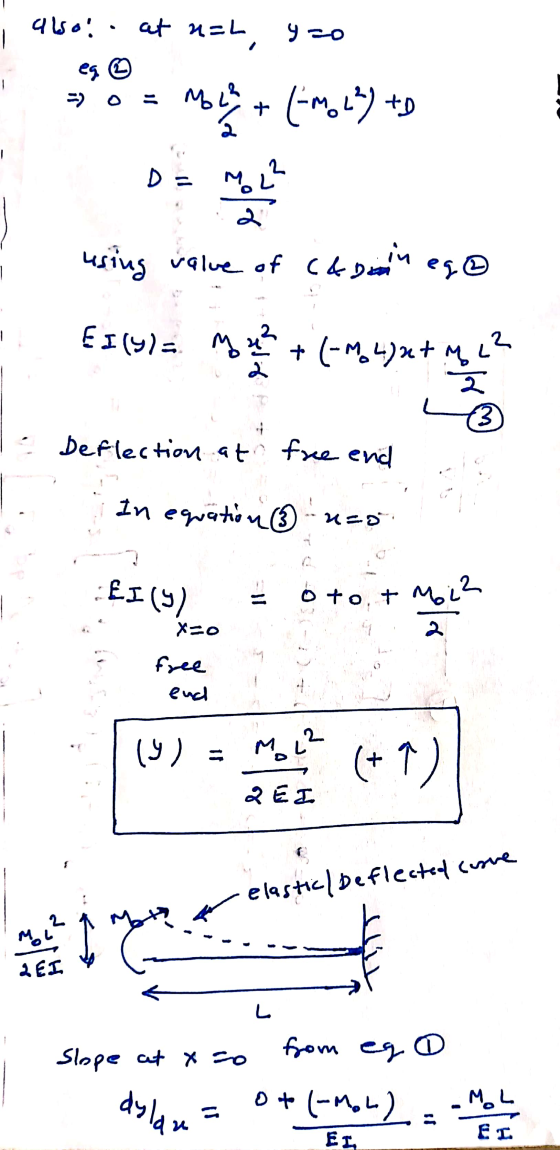

Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant Mo References eBook &Resources Section Break Difficulty. Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is EI
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is...
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant А Identify the equation of the elastic curve for the cantilever beam AB
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo...
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m...
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m LS m 0.6 m References eBook & Resources Section Break Difficulty: Easy alue 10.00 points From the figures given below, identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. (Round the final answer to two decimal places.) A : Figure 1 Figure Figure 3 Figure 4 The correct bending-moment diagram is Figure (Click to select) The maximum absolute...
Consider the given beam and loading 4 kips/ft В A С D -5 ft -- 2...
Consider the given beam and loading 4 kips/ft В A С D -5 ft -- 2 ft 8 kips 2 ft $ kips References eBook & Resources Difficulty: Medium Section Break Note: This question will not be automatically graded. It will be sent to your instructor for review 12. value 10.00 points Draw the shear and bending-moment diagrams for the beam and loading shown.
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of...
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of intensity p per unit length as shown Figure 2 below. Assume the deflection shape to be a polynomial in x, and is given by v (x) = a., + as+ a2 x, where ao, a.呙are constants to be determined. (a) State the boundary conditions for the deflection equation. Using the boundary conditions stated in (a) and the Rayleigh-Ritz method, determine (b) the constants a,...
3. 20 Determine the slope and deflection at point Dunder flexure using Moment-Area Method. Flexural rigidity...
3. 20 Determine the slope and deflection at point Dunder flexure using Moment-Area Method. Flexural rigidity of the beam is El and it is constant 5=5m Results table 0= A= 5 kN 3 kN/m A B S 1 m 2 m * 5m Figure 3.
Consider the given beam and loading where P- 275 lb. 100 lb 100 lb eBook &...
Consider the given beam and loading where P- 275 lb. 100 lb 100 lb eBook & Resources Section Break Difficulty: Easy 10.00 points From the figures given below, identify the correct shear diagrarm and deternine the maximurm absolute value of the shear. (Round the final answer to two decimal places. You must provide an answer before moving to the next part) Figure 1 Figure 2 Figure 3 Figure 4 The correct shear diagram is Figure 4 The max of the...
Consider the beam with the given loading where F2 460 Ib/ft tCo F2 7 ft References...
Consider the beam with the given loading where F2 460 Ib/ft tCo F2 7 ft References eBook& Resources Section Break Difficulty Medium 12. 1000 points Required information Determine the distributed load wo at the end A of the beam ABC for which the reaction at C is zero. (Round the final answer to the nearest whole number.) (You must provide an answer before moving to the next part.) The distributed load Wo at the end A of the beam ABC...
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant. L/2 References eBook & Resources Section Break Difficulty Easy 4. value: 10.00 points Determine the deflection at mid span of span AB. (Round the final answer to four decimal places.) ↓ The deflection at mid span is
Consider the beam and loading shown. Assume that the flexural rigidity Elof the beam is constant Mo References eBook &Resources Section Break Difficulty. Easy value: 10.00 points Determine the deflection at the free end. (Round the final answer to two decimal places.) The deflection at the free end is EI
Consider the beam and loading shown. Assume that the flexural rigidity El of the beam is constant А Identify the equation of the elastic curve for the cantilever beam AB
A simply supported uniform beam (with length L and flexural rigidity El) carries a moment Mo (clockwise) at a distance -21B away from the left end (x-0). Calculate the deflection () and slope (dv/de) at 21/3 by using the Rayleigh-Ritz Method. Assume a deflection curve of the form v-asin(rx/L), where a is to be determined
Consider the given beam and loading where P 31 kN/m. 40 kN 40 kN 0.6 m LS m 0.6 m References eBook & Resources Section Break Difficulty: Easy alue 10.00 points From the figures given below, identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. (Round the final answer to two decimal places.) A : Figure 1 Figure Figure 3 Figure 4 The correct bending-moment diagram is Figure (Click to select) The maximum absolute...
Consider the given beam and loading 4 kips/ft В A С D -5 ft -- 2 ft 8 kips 2 ft $ kips References eBook & Resources Difficulty: Medium Section Break Note: This question will not be automatically graded. It will be sent to your instructor for review 12. value 10.00 points Draw the shear and bending-moment diagrams for the beam and loading shown.
(2) A simply supported beam of flexural rigidity El carries a constant uniformly distributed load of intensity p per unit length as shown Figure 2 below. Assume the deflection shape to be a polynomial in x, and is given by v (x) = a., + as+ a2 x, where ao, a.呙are constants to be determined. (a) State the boundary conditions for the deflection equation. Using the boundary conditions stated in (a) and the Rayleigh-Ritz method, determine (b) the constants a,...
3. 20 Determine the slope and deflection at point Dunder flexure using Moment-Area Method. Flexural rigidity of the beam is El and it is constant 5=5m Results table 0= A= 5 kN 3 kN/m A B S 1 m 2 m * 5m Figure 3.
Consider the given beam and loading where P- 275 lb. 100 lb 100 lb eBook & Resources Section Break Difficulty: Easy 10.00 points From the figures given below, identify the correct shear diagrarm and deternine the maximurm absolute value of the shear. (Round the final answer to two decimal places. You must provide an answer before moving to the next part) Figure 1 Figure 2 Figure 3 Figure 4 The correct shear diagram is Figure 4 The max of the...
Consider the beam with the given loading where F2 460 Ib/ft tCo F2 7 ft References eBook& Resources Section Break Difficulty Medium 12. 1000 points Required information Determine the distributed load wo at the end A of the beam ABC for which the reaction at C is zero. (Round the final answer to the nearest whole number.) (You must provide an answer before moving to the next part.) The distributed load Wo at the end A of the beam ABC...
