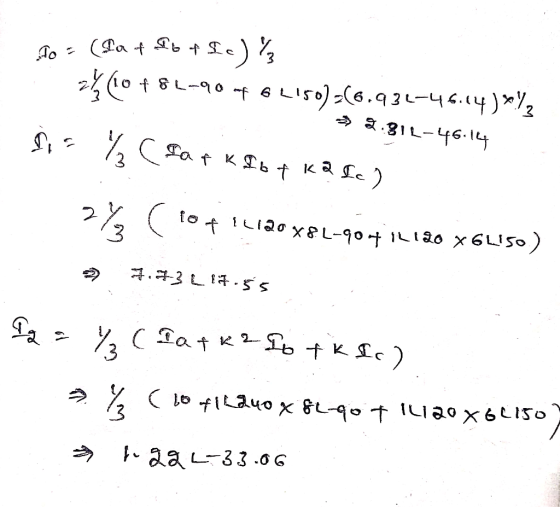

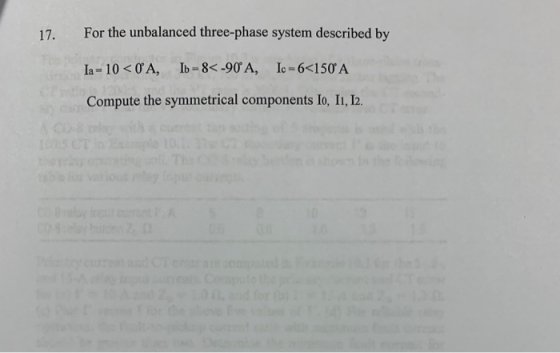

17. For the unbalanced three-phase system described by Compute the symmetrical components Io, I1, I2.
1. Determine three symmetrical components of Phase A's current given the three-phase currents of Ta =...
1. Determine three symmetrical components of Phase A's current given the three-phase currents of Ta = 1020A In = 102230° 1 = 102130A And also find out the current flowing through the ground.
Can the three-phase symmetrical components transformation be used to study single-phase operation (a fault condition) of...
Can the three-phase symmetrical components transformation be used to study single-phase operation (a fault condition) of a three-phase induction motor? Give your explanation.
Is there any application of three-phase symmetrical components transformation for the performance analysis of electric machines?...
Is there any application of three-phase symmetrical components transformation for the performance analysis of electric machines? Give your explanation.
A three-phase unbalanced source with the following phase to neutral voltages: 300-120 20090 10ol-30 1001-30 is applied to the circuit of balanced star. The star common point is connected to the i...
A three-phase unbalanced source with the following phase to neutral voltages: 300-120 20090 10ol-30 1001-30 is applied to the circuit of balanced star. The star common point is connected to the impedance of Z, -2j The load series impedance per phase is Z, -10+40j a) The load sequence impednace matrix Zo b) The symmetrical components of voltage. (magnitude and angle) ground through Determine
A three-phase unbalanced source with the following phase to neutral voltages: 300-120 20090 10ol-30 1001-30 is applied...
Power system OBLEM (4)- (14 marks) I). a) The three phase currents in a 3 phase...
Power system
OBLEM (4)- (14 marks) I). a) The three phase currents in a 3 phase system are I,- 100 A, I,- 10/230 A, 10 A, I, 101230° A, Le-101130° A. Determine the symmetrical components of the currents and current in the neutral line In b) The symmetrical components of voltages of a 3 phase system are given as: vao = 101 1 80° v , val-500"V , VO = 20130° find the voltages V,, V, V, and the neutral...
8.25 A three-phase balanced Y-connected load with series impedances of
8.25 A three-phase balanced \(Y\) -connected load with series impedances of \((8+j 24) \Omega\) per phase and mutual impedance between any two phases of \(j 4 \Omega\) is supplied by a three-phase unbalanced source with line-to-neutral voltages of \(V_{a n}=200 \angle 25^{\circ}, V_{b n}=100 \angle-155^{\circ}\), \(V_{c n}=80 \angle 100^{\circ} \mathrm{V}\). The load and source neutrals are both solidly grounded. Determine: (a) the load sequence impedance matrix, (b) the symmetrical components of the line-toneutral voltages, (c) the symmetrical components of the...
When using the method of symmetrical components, which of the following statements is most nearly correct?...
When using the method of symmetrical components, which of the following statements is most nearly correct? (A) The three zero-sequence current phasors are equal in magnitude and displaced by 120°. (B) The three positive-sequence and the three negative-sequence current phasors are all equal in magnitude, but have opposite phase rotations. (C) In a wye-connected synchronous generator, the voltage drop through the neutral grounding resistor, R, is equal to ю√3 IoR, where Io is the zero-sequence current. (D) Positive-sequence and negative-sequence...
For the system below compute the fault current and the branch contributions for a three phase...
For the system below compute the fault current and the
branch contributions for a three phase fault.
consider the unloaded system with a pre-fault voltage
of 1.1 pu.
Compute the fault current and the total current of
each branch. Show all calculations and tabulate the final
result.
For the system below compute the fault current and the branch contributions for a three-phase fault. Considerthe unloaded system with a pre-fault voltage 1.1 pu. Compute the fault current and the total current...
Consider a system consisting of three components as pictured. The system will continue to function as...
Consider a system consisting of three components as pictured. The system will continue to function as long as the first component functions and either component 2 or component 3 functions. Let X1, X2, and X3 denote the lifetimes of components 1, 2, and 3, respectively. Suppose the Xi's are independent of one another and each X, has an exponential distribution with parameter λ. (a) Let Y denote the system lifetime. Obtain the cumulative distribution function of Y and differentiate to...
Exercise 3 Consider a 2 generator 4 bus power system shown in Figure E3. The impedance data of the network in p.u. are given in Figure E3. A bolted symmetrical three phase fault occurs at bus 4. Assu...
Exercise 3 Consider a 2 generator 4 bus power system shown in Figure E3. The impedance data of the network in p.u. are given in Figure E3. A bolted symmetrical three phase fault occurs at bus 4. Assuming the prefault bus voltages as I p.u., calculate the fault current and the current delivered by the generators during the fault and the bus voltages during the fault. j0.12 0.05 0.16 j0.18 j0.12 0.15 0.05 j0.12 j0.1 j0.14 4 (2 Figure E3:...
1. Determine three symmetrical components of Phase A's current given the three-phase currents of Ta = 1020A In = 102230° 1 = 102130A And also find out the current flowing through the ground.
A three-phase unbalanced source with the following phase to neutral voltages: 300-120 20090 10ol-30 1001-30 is applied to the circuit of balanced star. The star common point is connected to the impedance of Z, -2j The load series impedance per phase is Z, -10+40j a) The load sequence impednace matrix Zo b) The symmetrical components of voltage. (magnitude and angle) ground through Determine
A three-phase unbalanced source with the following phase to neutral voltages: 300-120 20090 10ol-30 1001-30 is applied...
Power system
OBLEM (4)- (14 marks) I). a) The three phase currents in a 3 phase system are I,- 100 A, I,- 10/230 A, 10 A, I, 101230° A, Le-101130° A. Determine the symmetrical components of the currents and current in the neutral line In b) The symmetrical components of voltages of a 3 phase system are given as: vao = 101 1 80° v , val-500"V , VO = 20130° find the voltages V,, V, V, and the neutral...
For the system below compute the fault current and the
branch contributions for a three phase fault.
consider the unloaded system with a pre-fault voltage
of 1.1 pu.
Compute the fault current and the total current of
each branch. Show all calculations and tabulate the final
result.
For the system below compute the fault current and the branch contributions for a three-phase fault. Considerthe unloaded system with a pre-fault voltage 1.1 pu. Compute the fault current and the total current...
Consider a system consisting of three components as pictured. The system will continue to function as long as the first component functions and either component 2 or component 3 functions. Let X1, X2, and X3 denote the lifetimes of components 1, 2, and 3, respectively. Suppose the Xi's are independent of one another and each X, has an exponential distribution with parameter λ. (a) Let Y denote the system lifetime. Obtain the cumulative distribution function of Y and differentiate to...
Exercise 3 Consider a 2 generator 4 bus power system shown in Figure E3. The impedance data of the network in p.u. are given in Figure E3. A bolted symmetrical three phase fault occurs at bus 4. Assuming the prefault bus voltages as I p.u., calculate the fault current and the current delivered by the generators during the fault and the bus voltages during the fault. j0.12 0.05 0.16 j0.18 j0.12 0.15 0.05 j0.12 j0.1 j0.14 4 (2 Figure E3:...
