Here we need to check for there will be any interaction effect between length and humidity presence or not , for this we will use MINITAB software, and the anova table is
Two-way ANOVA: y versus Humidity, length
Source DF SS MS F P
Humidity 2 41834 20917.2 2.54 0.091
length 6 51462 8577.0 1.04 0.412
Interaction 12 102725 8560.4 1.04 0.432
Error 42 345419 8224.3
Total 62 541441
S = 90.69 R-Sq = 36.20% R-Sq(adj) = 5.82%
a) here interaction effect p-value =0.432
so we can say there will be no interaction effect with the huminity and length since p-vale>0.05
b) we can say that the humidity is not related with length so that there will be no joint effect of them
c) in that case we may can follow one way ANOVA for both the humidity and length for that also the conclusion will be same.

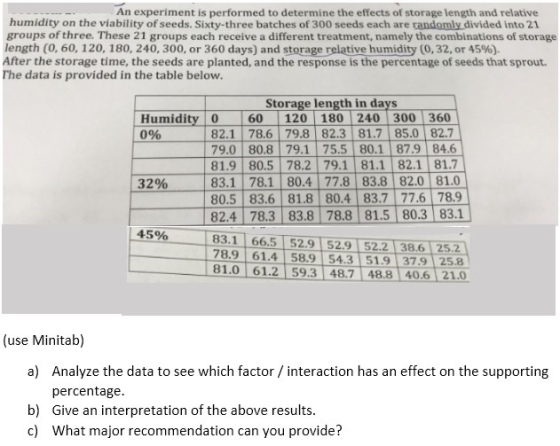

An experiment is performed to determine the effects of storage length and relative humidity on the...
