Homework Answers
Add Answer to:

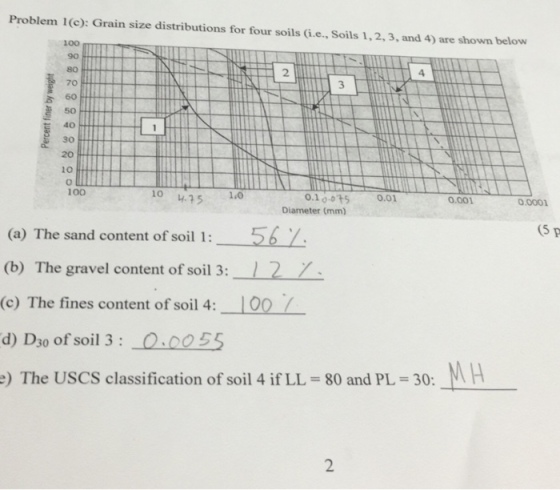

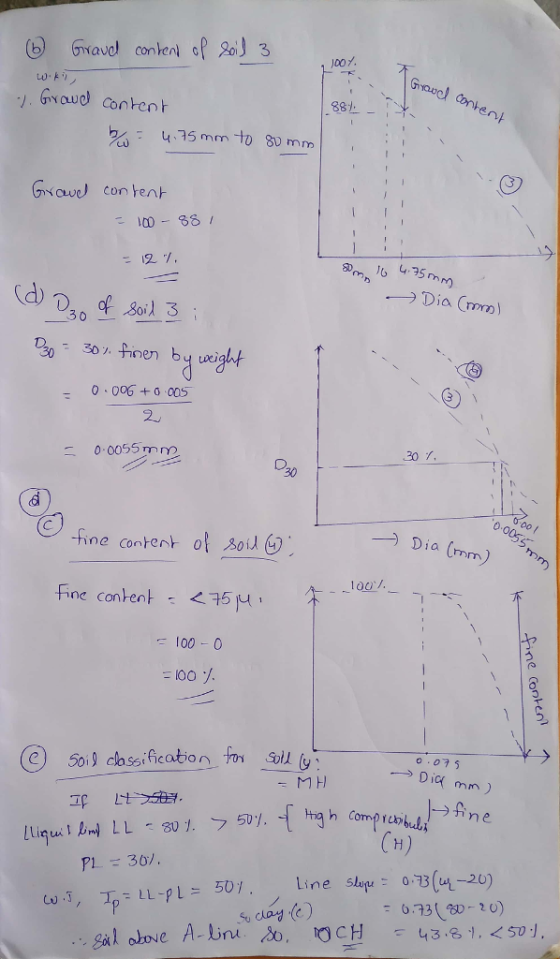

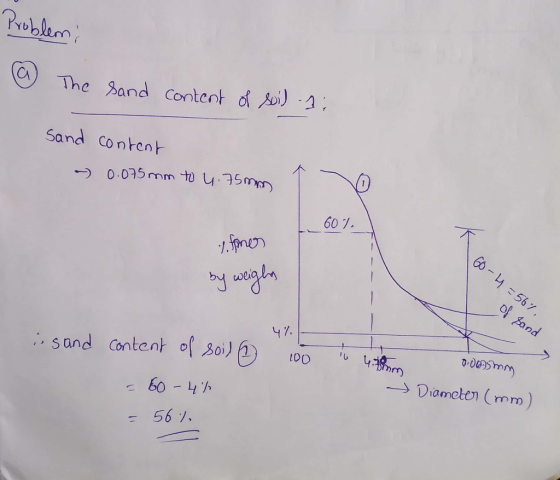

Problem 1(c): Grain size distributions for four soils (i.e., Soils 1,2, 3, and 4) are shown...
and Atterberg's limits (LL and PL.) for five soils are shewm atod answer the following questions Use uniñled s poit beow Assame all pods are inorganic RINES SAND Find MediumCoarse P #200 100 10 1...
and Atterberg's limits (LL and PL.) for five soils are shewm atod answer the following questions Use uniñled s poit beow Assame all pods are inorganic RINES SAND Find MediumCoarse P #200 100 10 10 0 0.001 0.1 0.01 Particle size (mm) Soil Liquid Plastic Limit Limit 80 50 30 NP 40 NP (a) Sand content of soil D: (b) Gravel content of soil E: (c) Fines content for soil B (d) Dso for soil C e) USCS classification of...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3,...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3, answer the following questions: (5 points) a. What is the perentage of gravel, sand, and fines? b. Classify the soil according to the ASTM/USCS (i.e, give both the Group Symbol and Group Name) (1) U.S. Standard sieve size in 3 in 100 No. 4 No. 10 No. 40 No. 200 90 80 70 60 50 40 30 20 10 0 100 10 1.0 0.1...
2. Grain size distribution curves are illustrated below for four different soils. For each soil sample...
2. Grain size distribution curves are illustrated below for four different soils. For each soil sample determine D10, D30, D50, D60, Cu, cc, %Gravel, %Sand, and %Fines. Also, if possible and appropriate, comment on the gradation characteristics of each sample (i.e. well, poor, uniform, etc.). Recall that you may not be able to determine D1o, D3o, and/or D6o for all of the samples. 100 -O- Soil 1 -- Soil 2 -Soil 3 Soil 4 90 0 80 0 70 60...
CIVL 311 Soil Mechanics Lab HWE2 Problem 2.1 The grain size distribution, liquid limit, and plastic...
CIVL 311 Soil Mechanics Lab HWE2 Problem 2.1 The grain size distribution, liquid limit, and plastic limit for several soils are shown below. • Determine the USCS group symbol and group name for soils through G. • Determine the AASHTO group classification and group index for soils through G. (The #10 sleve has an opening size of 2mm.) • Rank the four soils through G in order of best to worst highway subgrade. Which of the following USCS soils would...
How does Physical Weathering change the chemical composition of a rock material? It creates new, different...
How does Physical Weathering change the chemical composition of a rock material? It creates new, different minerals from the old minerals It doesn't change the chemical composition of a rock material It dissolves soluble minerals, moving ions into solutions It relies on chemical reactions to break down the minerals In the ASCE or USBR Rock Weathering Descriptors, the description of "Moderately Severe" says that all (minerals) except quartz are discolored or stained, and that all feldspars are dull, discolored and...
Problem 3. Classify the five soils below (all are inorganic). Clearly show all steps for soil cla...
Problem 3. Classify the five soils below (all are inorganic). Clearly show all steps for soil classification. US Standard seve numbers , 6 810141620 30405070 00140200 3 6 100 10 20 Soil 30 70 Soil 40 so a 50 60 40Soil LL PL Soil 120 15 2 NP 3 124 47 4 49 24 5 NP- 70 80 #0 10 001 0005 01 005 105 Grain size imm
Problem 3. Classify the five soils below (all are inorganic). Clearly show...
Problem 3 - Soil Classification (15 pts) For the following soils, classify each using the USCS...
Problem 3 - Soil Classification (15 pts) For the following soils, classify each using the USCS classification. Plasticity %passing #4 sieve %passing #200 sieve Group Symbol 100 95 Soil clay silt sand gravel Sample A 12 83 5 0 B 4 25 665 C 4 25 71 D5 59 360 E 18 49 303 95 29 Liquid Limit 66. 3 31.4 36 60. 9 49 19.9 6 7.6 23 100 29 1 100 97 64 67 |
The following table shows the lab results of a grain size analysis and Atterberg limits for...
The following table shows the lab results of a grain size analysis and Atterberg limits for an inorganic soil sample (initial total mass=1029) Assume you measured a liquid limit of 40% and plastic limit of 30% for the sample. Sieve Size/No. Equivalent Sieve Size (mm) Mass Retaining(s) Mass Passing (9) Percent Passing 3" 75 11 50 0 3 19 4.75 20 2 20 15 10 No. 60 5 4 4 4 0.003 2 2 2" 3/4" No. 4 No. 10...
100 Problem 3: The grain size distribution curves for three different sands (A, B, C) are...
100 Problem 3: The grain size distribution curves for three different sands (A, B, C) are shown in the 80 figure. Find the approximate values of coeficient of uniformity (Cu) and the coefficient of gradation (C) for each soil and identify if the soils are well graded or poorly graded. 6 points) 60- 40- 20- 0 100 10 0.1 0.01 Grain size (mm)
CE 366 Introduction to Soil Engineering Extra Credit Homework #3 Due 30 November 2018 1. Classify...
CE 366 Introduction to Soil Engineering Extra Credit Homework #3 Due 30 November 2018 1. Classify Soils A C, E using the Unied Soil Classification Systerm #200 0.075mm 3 in 76.2mm 4.75 mm 100 90 面70 50 40 30 20 10 0.001 0.01 0.1 10 100 Grain Size (mm) Soil A -Soil B -Sol C -Sol D -Sol E Soil A 13 Soil B 35 2. Laboratory compaction data is provided below for a soil with a specific gravity of...
and Atterberg's limits (LL and PL.) for five soils are shewm atod answer the following questions Use uniñled s poit beow Assame all pods are inorganic RINES SAND Find MediumCoarse P #200 100 10 10 0 0.001 0.1 0.01 Particle size (mm) Soil Liquid Plastic Limit Limit 80 50 30 NP 40 NP (a) Sand content of soil D: (b) Gravel content of soil E: (c) Fines content for soil B (d) Dso for soil C e) USCS classification of...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3, answer the following questions: (5 points) a. What is the perentage of gravel, sand, and fines? b. Classify the soil according to the ASTM/USCS (i.e, give both the Group Symbol and Group Name) (1) U.S. Standard sieve size in 3 in 100 No. 4 No. 10 No. 40 No. 200 90 80 70 60 50 40 30 20 10 0 100 10 1.0 0.1...
2. Grain size distribution curves are illustrated below for four different soils. For each soil sample determine D10, D30, D50, D60, Cu, cc, %Gravel, %Sand, and %Fines. Also, if possible and appropriate, comment on the gradation characteristics of each sample (i.e. well, poor, uniform, etc.). Recall that you may not be able to determine D1o, D3o, and/or D6o for all of the samples. 100 -O- Soil 1 -- Soil 2 -Soil 3 Soil 4 90 0 80 0 70 60...
CIVL 311 Soil Mechanics Lab HWE2 Problem 2.1 The grain size distribution, liquid limit, and plastic limit for several soils are shown below. • Determine the USCS group symbol and group name for soils through G. • Determine the AASHTO group classification and group index for soils through G. (The #10 sleve has an opening size of 2mm.) • Rank the four soils through G in order of best to worst highway subgrade. Which of the following USCS soils would...
How does Physical Weathering change the chemical composition of a rock material? It creates new, different minerals from the old minerals It doesn't change the chemical composition of a rock material It dissolves soluble minerals, moving ions into solutions It relies on chemical reactions to break down the minerals In the ASCE or USBR Rock Weathering Descriptors, the description of "Moderately Severe" says that all (minerals) except quartz are discolored or stained, and that all feldspars are dull, discolored and...
Problem 3. Classify the five soils below (all are inorganic). Clearly show all steps for soil classification. US Standard seve numbers , 6 810141620 30405070 00140200 3 6 100 10 20 Soil 30 70 Soil 40 so a 50 60 40Soil LL PL Soil 120 15 2 NP 3 124 47 4 49 24 5 NP- 70 80 #0 10 001 0005 01 005 105 Grain size imm
Problem 3. Classify the five soils below (all are inorganic). Clearly show...
Problem 3 - Soil Classification (15 pts) For the following soils, classify each using the USCS classification. Plasticity %passing #4 sieve %passing #200 sieve Group Symbol 100 95 Soil clay silt sand gravel Sample A 12 83 5 0 B 4 25 665 C 4 25 71 D5 59 360 E 18 49 303 95 29 Liquid Limit 66. 3 31.4 36 60. 9 49 19.9 6 7.6 23 100 29 1 100 97 64 67 |
The following table shows the lab results of a grain size analysis and Atterberg limits for an inorganic soil sample (initial total mass=1029) Assume you measured a liquid limit of 40% and plastic limit of 30% for the sample. Sieve Size/No. Equivalent Sieve Size (mm) Mass Retaining(s) Mass Passing (9) Percent Passing 3" 75 11 50 0 3 19 4.75 20 2 20 15 10 No. 60 5 4 4 4 0.003 2 2 2" 3/4" No. 4 No. 10...
100 Problem 3: The grain size distribution curves for three different sands (A, B, C) are shown in the 80 figure. Find the approximate values of coeficient of uniformity (Cu) and the coefficient of gradation (C) for each soil and identify if the soils are well graded or poorly graded. 6 points) 60- 40- 20- 0 100 10 0.1 0.01 Grain size (mm)
CE 366 Introduction to Soil Engineering Extra Credit Homework #3 Due 30 November 2018 1. Classify Soils A C, E using the Unied Soil Classification Systerm #200 0.075mm 3 in 76.2mm 4.75 mm 100 90 面70 50 40 30 20 10 0.001 0.01 0.1 10 100 Grain Size (mm) Soil A -Soil B -Sol C -Sol D -Sol E Soil A 13 Soil B 35 2. Laboratory compaction data is provided below for a soil with a specific gravity of...
