Any help please Thanks Draw the binary search tree that is created if the following numbers...

Question

Question

Draw the binary search tree that is created if the following numbers are inserted in the tree in the given order 12 15 3 35 21 42 14 13 66 41 2

Any help please
Thanks

engineering Computer-Science

Answer 1

Answer #1

The left subtree of a node contains only nodes with keys lesser than the node’s key.
The right subtree of a node contains only nodes with keys greater than the node’s key

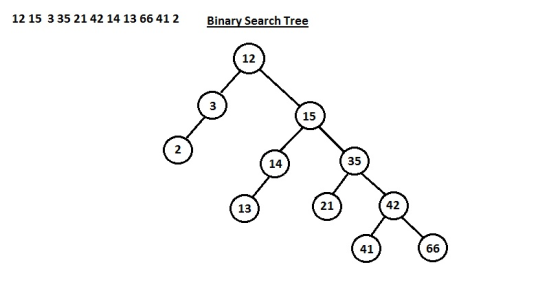

12 15 3 35 21 42 14 13 66412Binary Search Tree 12 3 15 2 35 14 21 42 13 41
