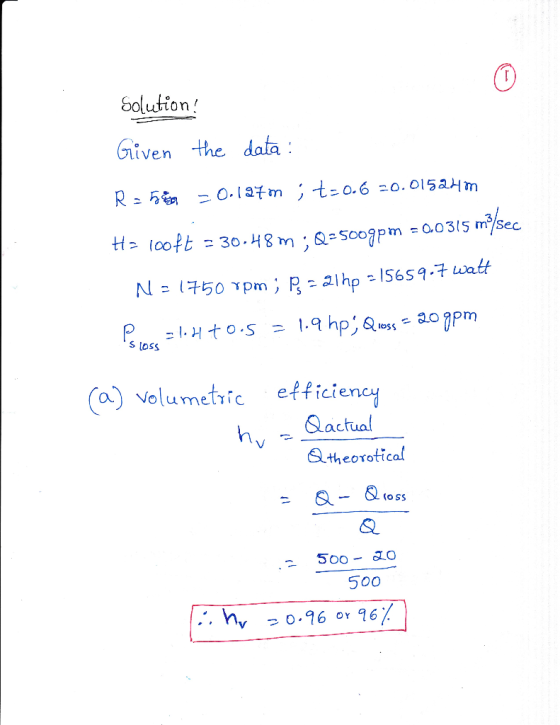

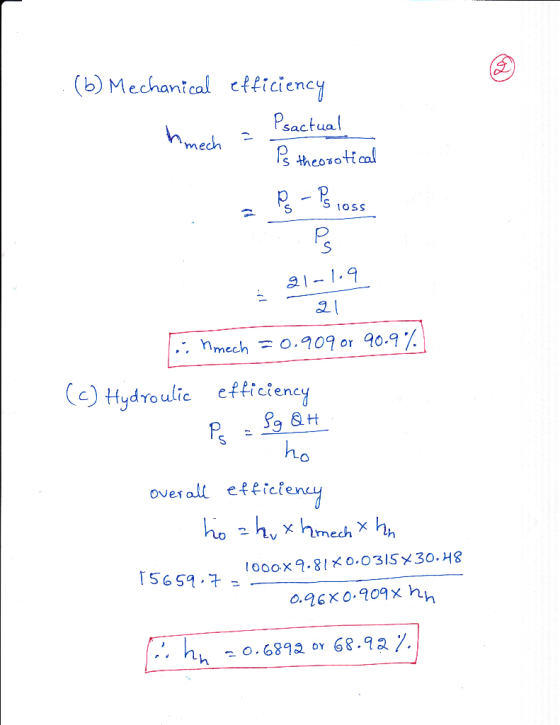

solution
Add Answer to:

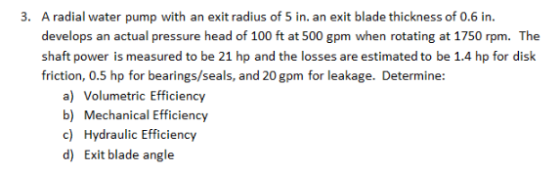

A radial water pump with an exit radius of 5 in. an exit blade thickness of...
Please answer question 7: A centrifugal pump discharges 500 GPM through a 12-inch diameter impeller. The fluid...
Please answer question 7:
A centrifugal pump discharges 500 GPM through a 12-inch diameter
impeller. The fluid leaves the impeller with a
tangential velocity of 17 ft/sec. If water, @ 68°F,
enters the impeller via radial flow (I.E. no whirl), and the inner
radius and thickness of the impeller are
1.75-inches. (Assume a constant thickness of the
impeller) and if the pump speed is 1775 rpm, with a head loss of
4.5-feet. What is the horsepower input to the flow by
the pump?
QUESTION...
6. Determine the setting of a centrifugal pump, given that flow rate = 2.4 m/min; diameter...
6. Determine the setting of a centrifugal pump, given that flow rate = 2.4 m/min; diameter of intake pipe = 160 mm; entrance losses = one velocity head in suction pipe; required NPSH = 42 kPa; water temperature = 30°C N D1, D2 : inlet and outlet diameters of impeller (rotor) b : impeller width 0,6 : inlet and outlet impeller vane angles (degrees) : speed of rotation of impeller (and its driver) in rpm V, V :tangential and radial...
Water is pumped at the rate of 1400 L/m through a centrifugal pump operating at a...
Water is pumped at the rate of 1400 L/m through a centrifugal pump operating at a speed of 1750 rpm. The impeller has a uniform blade width, b, of 5 cm. with r1 = 5 cm. and r2 = 17.5 cm., and the exit blade angle β2 is 23° (see Fig. 12.8). Assume ideal flow conditions and that the tangential velocity component , Vθ1, of the water entering the blade is zero (α1 = 90°). Determine (a) the tangential velocity...
HELPPPP 5 Hydraulic Press ●4 11.0 ft Flow 10.0 ft 2.0 ft 1 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press. The following is known: The volume...
HELPPPP
5 Hydraulic Press ●4 11.0 ft Flow 10.0 ft 2.0 ft 1 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press. The following is known: The volume flow rate is 35 gpm. The hydraulic fluid has a specific gravity of 0.87 and v-4.30X10+ ft'/s. The power input to the pump is 20 hp. . The pump efficiency is 80 percent. The filter has a resistance coefficient K-1.85...
Project-Design Problem: A family of water pumps produced by a given pump manufacturer have performance and...
Project-Design Problem: A family of water pumps produced by a given pump manufacturer have performance and efficiency curves that can be characterized by the following dimensionless equations: Pump head 6 = 6.04-1616 where and 5 nD Pump efficiency n = 705-91,5006 where n = (power to water) / (elect power input) In the above equations, is the dimensionless pump head and is the dimensionless volumetric flow rate. h, is the pump head, n is the pump shaft/impeller rotation rate, and...
Hydraulic Press 11.0ft Flow 10.0 ft 2.0ft 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press The following is known: The volume flow rate is...
Hydraulic Press 11.0ft Flow 10.0 ft 2.0ft 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press The following is known: The volume flow rate is 35 gpm. The hydraulic fluid has a specific gravity of 0.87 The power input to the pump is 20 hp. The pump efficiency is 80 percent. The filter has a resistance coefficient K-1.85 based on the velocity head in the suction line All...
1. A centrifugal pump performance data are shown in the following table for water. Pump speed-250...
Mechanical Lab II. Please answer asap with clear work. Thank
you!
1. A centrifugal pump performance data are shown in the following table for water. Pump speed-2500 RPM Pa or P2 (bar) P. or Pi (bar) Volume of water(L Time (sec) Input-Power (W) -0.3 20 60 100 For this data set, calculate the following i. Pump discharge capacity Q (LUs and GPM) ii. Pump head H (m and ft) iii. Fluid power Pr (Watt) iv. Brake power Pb (Watt) v....
5. A raw water intake will have two identical pumps that will have a combined flow...
5. A raw water intake will have two identical pumps that will have a combined flow capacity when pumping together of 8 mgd. The static head from the water level in the intake to the high water level in the rapid mix basin is 200 feet. The dynamic losses from the intake to the rapid mix are equal to 40 feet. Using the equation HP = [Q (gpm) x TDH (ft)] ÷ [3960 x efficiency] and assuming a 75%...
please solve 5(b) and 6 (a and b) fluid machinery b)An inward flow reaction turbine works under a head of 100m. The inlet and outlet diameters of the runner are 1.2 m and 0.6 m, respectively. The...
please solve 5(b) and 6 (a and b) fluid machinery
b)An inward flow reaction turbine works under a head of 100m. The inlet and outlet diameters of the runner are 1.2 m and 0.6 m, respectively. The width of the runner is 150 mm, which is constant throughout. The velocity of flow at the outlet is 6 m/s. The blade angle at the outlet is 15. The hydraulic efficiency is 0.9. Calculate the following: ) The speed of the Turbine...
(100 points) Water at 25°C is pumped at a rate of 0.075m'/s from a reservoir 20m above a pump to a free di...
(100 points) Water at 25°C is pumped at a rate of 0.075m'/s from a reservoir 20m above a pump to a free discharge (this means discharged to atmosphere) 35m above the pump. The pressure on the intake side of the pump is 150kPa and the pressure on the discharge side of the pump is 450kPa. The pipe between the reservoir and the pump is 3 meters of 5in diameter cast iron. From the pump to the discharge the pipe is...
Please answer question 7:
A centrifugal pump discharges 500 GPM through a 12-inch diameter
impeller. The fluid leaves the impeller with a
tangential velocity of 17 ft/sec. If water, @ 68°F,
enters the impeller via radial flow (I.E. no whirl), and the inner
radius and thickness of the impeller are
1.75-inches. (Assume a constant thickness of the
impeller) and if the pump speed is 1775 rpm, with a head loss of
4.5-feet. What is the horsepower input to the flow by
the pump?
QUESTION...
6. Determine the setting of a centrifugal pump, given that flow rate = 2.4 m/min; diameter of intake pipe = 160 mm; entrance losses = one velocity head in suction pipe; required NPSH = 42 kPa; water temperature = 30°C N D1, D2 : inlet and outlet diameters of impeller (rotor) b : impeller width 0,6 : inlet and outlet impeller vane angles (degrees) : speed of rotation of impeller (and its driver) in rpm V, V :tangential and radial...
HELPPPP
5 Hydraulic Press ●4 11.0 ft Flow 10.0 ft 2.0 ft 1 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press. The following is known: The volume flow rate is 35 gpm. The hydraulic fluid has a specific gravity of 0.87 and v-4.30X10+ ft'/s. The power input to the pump is 20 hp. . The pump efficiency is 80 percent. The filter has a resistance coefficient K-1.85...
Project-Design Problem: A family of water pumps produced by a given pump manufacturer have performance and efficiency curves that can be characterized by the following dimensionless equations: Pump head 6 = 6.04-1616 where and 5 nD Pump efficiency n = 705-91,5006 where n = (power to water) / (elect power input) In the above equations, is the dimensionless pump head and is the dimensionless volumetric flow rate. h, is the pump head, n is the pump shaft/impeller rotation rate, and...
Hydraulic Press 11.0ft Flow 10.0 ft 2.0ft 6 3.0 ft Filter Pump Flow The diagram on the next slide shows a fluid power system for a hydraulic press The following is known: The volume flow rate is 35 gpm. The hydraulic fluid has a specific gravity of 0.87 The power input to the pump is 20 hp. The pump efficiency is 80 percent. The filter has a resistance coefficient K-1.85 based on the velocity head in the suction line All...
Mechanical Lab II. Please answer asap with clear work. Thank
you!
1. A centrifugal pump performance data are shown in the following table for water. Pump speed-2500 RPM Pa or P2 (bar) P. or Pi (bar) Volume of water(L Time (sec) Input-Power (W) -0.3 20 60 100 For this data set, calculate the following i. Pump discharge capacity Q (LUs and GPM) ii. Pump head H (m and ft) iii. Fluid power Pr (Watt) iv. Brake power Pb (Watt) v....
please solve 5(b) and 6 (a and b) fluid machinery
b)An inward flow reaction turbine works under a head of 100m. The inlet and outlet diameters of the runner are 1.2 m and 0.6 m, respectively. The width of the runner is 150 mm, which is constant throughout. The velocity of flow at the outlet is 6 m/s. The blade angle at the outlet is 15. The hydraulic efficiency is 0.9. Calculate the following: ) The speed of the Turbine...
(100 points) Water at 25°C is pumped at a rate of 0.075m'/s from a reservoir 20m above a pump to a free discharge (this means discharged to atmosphere) 35m above the pump. The pressure on the intake side of the pump is 150kPa and the pressure on the discharge side of the pump is 450kPa. The pipe between the reservoir and the pump is 3 meters of 5in diameter cast iron. From the pump to the discharge the pipe is...
