Question
V. 2

VT = 93 v R1 = 20 ohms
V2 = 41 v IT = ? A

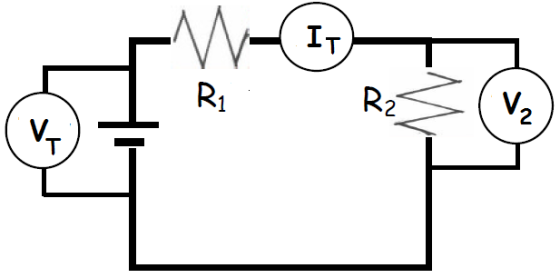

Given the circuit above, solve for IT

Round your answer to the nearest 0.1. Do not include units.

**Be VERY careful when rounding intermediate calculations! If you round too much, your answer will be counted WRONG!!**

0 0
Add a comment Improve this question Transcribed image text
Answer #1

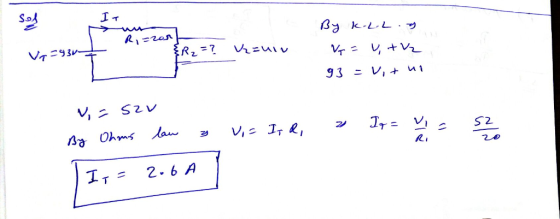

So VT -93 2 IT= 2.6A
