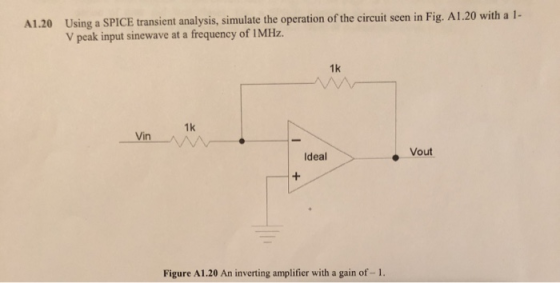

A1.20 Using a SPICE transient analysis, simulate the operation of the circuit scen in Fig. A1.20...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gai...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
Problem # 3 For the summing opamp circuit, assume that the opamp is powered with +15V and-15V. Th...
Problem # 3 For the summing opamp circuit, assume that the opamp is powered with +15V and-15V. The input voltages are VI and V2 and the output voltage is Vout. Rf 15 V U1 R1 R2 Vout 741 V2 (A -15 V 1. Find the relation between the output Vout and the inputs VI and V2 2. Assume that RI-2kS2, R2-3 ㏀ and Rf-6kS2, Vin is a sinewave with viinpp-2V, V2DC- IV, plot Vin() and Vout(0) 3. Assume that you...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
Part I: Inverting Amplifier Procedure: 1. Build the circuit model for inverting amplifier in PSpice with...
Part I: Inverting Amplifier Procedure: 1. Build the circuit model for inverting amplifier in PSpice with the following parameters: Ri = 5 k 2, R2 = 20 ks2, V+ = 10 V, V-=-10 V. 2. Hand calculates the theoretical closed loop gain Vout/Vin of the circuit model. 3. Generate a triangular waveform for Vin with the amplitude of 1 V and the period of 1 ms. 4. Run simulation. a. Set circuit model parameters. i.e., for voltage source: click VPWL...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
TE Question 5 (20 marks) An active filter circuit is shown in Fig. 4. The cut-off frequency of this active filter is...
TE Question 5 (20 marks) An active filter circuit is shown in Fig. 4. The cut-off frequency of this active filter is 1590Hz. The Input impedance and voltage gain of this filter are 10k0 and -5VN respectively Vout R1 vin R2 C1 Fig. 4 By assuming the operational amplifier, A is ideal, answer the following questions: (a) () State the type of this active fiter. (i) Explain the characteristic of this active filter. [2 marks] 3 marks] (b) 0) Calculate...
2. Construct the non-inverting amplifier circuit below. Then, obtain input-output transfer function for R1=1K and R2=2.2K,...
2. Construct the non-inverting amplifier circuit below. Then, obtain input-output transfer function for R1=1K and R2=2.2K, E= 9V. Use a variable de voltage (5V de source and a variable 1k potentiometer) source as the input and measure the output voltage for different inputs. Draw the input-output transfer function from the measured input-output voltages. Proteus Table Vin Vout Measured Table Vin Vout Q2) Determine the voltage gain VO / Vin of the non-inverting amplifier. What is the output voltage range over...
3- OPERATIONAL-AMPLIFIER Nominating ampliar Voltage Show OW Difference ampliar Wate Date amplizier Close R Vout Voutin...
3- OPERATIONAL-AMPLIFIER Nominating ampliar Voltage Show OW Difference ampliar Wate Date amplizier Close R Vout Voutin Vout = vin Buffer = Inverting amplifier Dout = (1 + .. Vout V out 1 V2 ERR Vour (, - v3) Differential Amplifier Non-Inverting amplifier 1- Refer to the op amp in Fig. If v; = 0.5 V, calculate: (a) the output voltage Vos (b) the current in the 10-k! resistor. 25k92 10k02 Oo + 6 2. A 741 op amp has an...
Matlab #3-BJT/MOSFET Inverter To demonstrate the use of a BJT and MOSFET as an inverter, connect the following circuits. Use Simulink/Simscape to simulate each circuit for a peak amplitude in...
Matlab #3-BJT/MOSFET Inverter To demonstrate the use of a BJT and MOSFET as an inverter, connect the following circuits. Use Simulink/Simscape to simulate each circuit for a peak amplitude in the AC voltage source of 5V and a frequency of i Hz. Show Vin and Vout for 3 cycles of the input source in both circuits. Comment on circuit behavior for each case. BIT circuit parameters: Vcc = 10V, RB = 10㏀, and RC-470Ω Rc Voltage Sensor Goto Sensor RB...
Question 4 The input signal to the circuit below is a Triangle wave with a peak...
Question 4 The input signal to the circuit below is a Triangle wave with a peak to peak Vin of 10 V Determine the ideal peak to peak output voltage signal. The Frequency is 1 kHz Note: At 0.5 Tp Amplifier Parameters Vin R1 10 Ypg R1 10 K2 0.01 uF C1 Veu Ereg 1 1H2 Vout Note 4 Vpp, Triangle Wave 4 Vpp, Square Wave 2 Vpp, Square Wave 2 Vpp, Triangle Wave
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
Problem # 3 For the summing opamp circuit, assume that the opamp is powered with +15V and-15V. The input voltages are VI and V2 and the output voltage is Vout. Rf 15 V U1 R1 R2 Vout 741 V2 (A -15 V 1. Find the relation between the output Vout and the inputs VI and V2 2. Assume that RI-2kS2, R2-3 ㏀ and Rf-6kS2, Vin is a sinewave with viinpp-2V, V2DC- IV, plot Vin() and Vout(0) 3. Assume that you...
shows two versions of a common-emitter amplifier and (i Fig. 1 (a) Find the expression for the small-signal voltage gain of Fig. 1(i) in terms of relevant small- signal parameters. (b) Over what frequency range will the gain of the Fig. 1(i) circuit be the same as that of the Fig. 1(i) circuit? (c) Which of the two circuits will show less variation in its de biasing in the presence of processing or temperature variations? Justify your answer. (d) Explain,...
Part I: Inverting Amplifier Procedure: 1. Build the circuit model for inverting amplifier in PSpice with the following parameters: Ri = 5 k 2, R2 = 20 ks2, V+ = 10 V, V-=-10 V. 2. Hand calculates the theoretical closed loop gain Vout/Vin of the circuit model. 3. Generate a triangular waveform for Vin with the amplitude of 1 V and the period of 1 ms. 4. Run simulation. a. Set circuit model parameters. i.e., for voltage source: click VPWL...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
TE Question 5 (20 marks) An active filter circuit is shown in Fig. 4. The cut-off frequency of this active filter is 1590Hz. The Input impedance and voltage gain of this filter are 10k0 and -5VN respectively Vout R1 vin R2 C1 Fig. 4 By assuming the operational amplifier, A is ideal, answer the following questions: (a) () State the type of this active fiter. (i) Explain the characteristic of this active filter. [2 marks] 3 marks] (b) 0) Calculate...
2. Construct the non-inverting amplifier circuit below. Then, obtain input-output transfer function for R1=1K and R2=2.2K, E= 9V. Use a variable de voltage (5V de source and a variable 1k potentiometer) source as the input and measure the output voltage for different inputs. Draw the input-output transfer function from the measured input-output voltages. Proteus Table Vin Vout Measured Table Vin Vout Q2) Determine the voltage gain VO / Vin of the non-inverting amplifier. What is the output voltage range over...
3- OPERATIONAL-AMPLIFIER Nominating ampliar Voltage Show OW Difference ampliar Wate Date amplizier Close R Vout Voutin Vout = vin Buffer = Inverting amplifier Dout = (1 + .. Vout V out 1 V2 ERR Vour (, - v3) Differential Amplifier Non-Inverting amplifier 1- Refer to the op amp in Fig. If v; = 0.5 V, calculate: (a) the output voltage Vos (b) the current in the 10-k! resistor. 25k92 10k02 Oo + 6 2. A 741 op amp has an...
Matlab #3-BJT/MOSFET Inverter To demonstrate the use of a BJT and MOSFET as an inverter, connect the following circuits. Use Simulink/Simscape to simulate each circuit for a peak amplitude in the AC voltage source of 5V and a frequency of i Hz. Show Vin and Vout for 3 cycles of the input source in both circuits. Comment on circuit behavior for each case. BIT circuit parameters: Vcc = 10V, RB = 10㏀, and RC-470Ω Rc Voltage Sensor Goto Sensor RB...
Question 4 The input signal to the circuit below is a Triangle wave with a peak to peak Vin of 10 V Determine the ideal peak to peak output voltage signal. The Frequency is 1 kHz Note: At 0.5 Tp Amplifier Parameters Vin R1 10 Ypg R1 10 K2 0.01 uF C1 Veu Ereg 1 1H2 Vout Note 4 Vpp, Triangle Wave 4 Vpp, Square Wave 2 Vpp, Square Wave 2 Vpp, Triangle Wave
