The temperature of a blackbody is 3000 K. Determine the fraction of the radiant energy it...

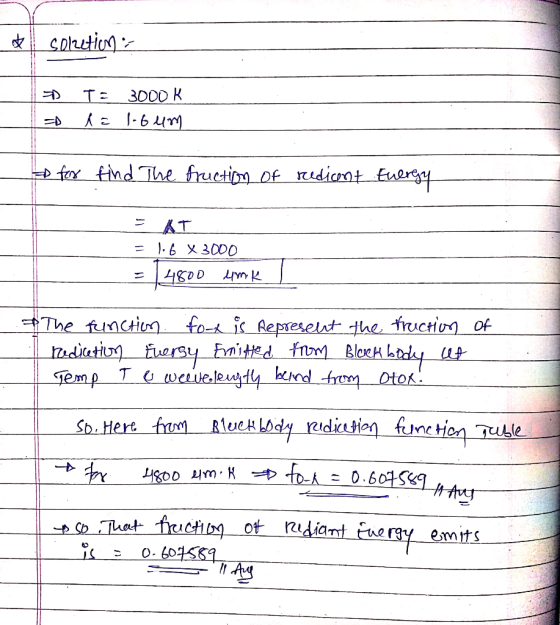

The temperature of a blackbody is 3000 K. Determine the fraction of the radiant energy it emits that wavelengths less than 1.6 μm.
Homework Answers
Add Answer to:
The temperature of a blackbody is 3000 K. Determine the fraction
of the radiant energy it...
Q1: The sun can be treated as a blackbody at an effective surface temperature of 10,400 R. The su...
Q1: The sun can be treated as a blackbody at an effective surface temperature of 10,400 R. The sun can be treated as a blackbody. (a) Determine the rate at which infrared radiation energy (0.76-100 um) is emitted by the sun, in Btu/hft. (b) Determine the fraction of the radiant energy emitted by the sun that falls in the visible range. (c) Determine the wavelength at which the emission of radiation from the sun peaks (d) Calculate and plot the...
Construct plots that show the wavelength-dependent energy spectrum of a blackbody at a temperature of 5800...
Construct plots that show the wavelength-dependent energy spectrum of a blackbody at a temperature of 5800 K (approx. temperature of the Sun) using both the Planck distribution and the Raleigh-Jeans distribution. Confirm agreement between the two at long wavelength. a. What is the maximum emission wavelength at this temperature? b. What is the total power output (W/m^2) ? c. Using the Planck distribution, estimate what fraction of the Sun's total power output is emitted in visible wavelengths (400-750 nm)
Consider a blackbody surface that emits 54.880% of its emissive power at wavelengths that are shorter than 3.3008 microns. What is the temperature of the surface in Cº?
Consider a blackbody surface that emits 54.880% of its emissive power at wavelengths that are shorter than 3.3008 microns. What is the temperature of the surface in Cº?
a,) Plot the spectral radiant power (in W per m2 per unit wavelength) from a blackbody emitter at the two temperatures 500K and 1500K. b.) Determine the photon wavelength where the spectral radiant po...
a,) Plot the spectral radiant power (in W per m2 per unit wavelength) from a blackbody emitter at the two temperatures 500K and 1500K. b.) Determine the photon wavelength where the spectral radiant power is a maximum for each temperature.
A blackbody radiator has temperature 5350. K. Calculate the ratio of the spectral densities (ρλ1/ρλ2) for...
A blackbody radiator has temperature 5350. K. Calculate the ratio of the spectral densities (ρλ1/ρλ2) for wavelengths λ1=491 nm and λ2=673 nm.
5. The energy radiating from an animal is measured. If the peak spectral radiant emittance is...
5. The energy radiating from an animal is measured. If the peak spectral radiant emittance is found at a wavelength of 9.11 um, what is the body temperature (in °C) for this animal? a. b. Assume that the animal radiates energy through the skin with 95% efficiency. Plot the radiant output (spectral radiant emittance) vs. wavelength for 1 μm um. AS30
A glowing blackbody is at a temperature of 4.325×103 K. For this temperature the peak in...
A glowing blackbody is at a temperature of 4.325×103 K. For this temperature the peak in the intensity vs. wavelength curve occurs at a wavelength of 670 nm. When the temperature of the blackbody changes, the peak shifts to 1.876×103 nm. What is the new temperature of the blackbody?
) A 3-mm-thick glass window transmits 83 percent of the radiation betweenA -0.3 and 3.0 μm and is...
) A 3-mm-thick glass window transmits 83 percent of the radiation betweenA -0.3 and 3.0 μm and is essentially opaque for radiation at other wavelengths. Determine the rate of radiation transmitted through a 3-m X 3-m glass window from blackbody sources at (a) 5800 K and (b) 1000 K ) A small circular surface of area A-2cm2 located at the center of a 2-m-diameter sphere emits radiation as a blackbody at T-1000 K. Determine the rate at which radiation energy...
What was the temperature anomaly in Buffalo, NY on August 27 , 2019? Give your answer...
What was the temperature anomaly in Buffalo, NY on August 27 ,
2019? Give your answer in °C. Answers within ±3°C of the correct
answer are marked correct.
The long-term average temperature for August in Buffalo is 20
°C. Using this information and your answer from Q8, what was the
temperature in Buffalo on August 27, 2019? Give your answer in
°C.
Hotter objects emit _________ than cooler objects
a. more energy at redder wavelengths
b. more energy at bluer...
The illustration shows the spectrum of electromagnetic radiation emitted by a blackbody at two different Kelvin...
The illustration shows the
spectrum of electromagnetic radiation emitted by a blackbody at two
different Kelvin temperatures. The range of visible frequencies
(those that can be detected by the human eye) is also shown. (a) No
matter what the value of the Kelvin temperature T, the spectrum
decreases to zero at very high frequencies. Why is this? (i) At
very high frequencies the photon energy is very small compared to
kT. (ii) At very high frequencies the photon energy is...
Q1: The sun can be treated as a blackbody at an effective surface temperature of 10,400 R. The sun can be treated as a blackbody. (a) Determine the rate at which infrared radiation energy (0.76-100 um) is emitted by the sun, in Btu/hft. (b) Determine the fraction of the radiant energy emitted by the sun that falls in the visible range. (c) Determine the wavelength at which the emission of radiation from the sun peaks (d) Calculate and plot the...
Construct plots that show the wavelength-dependent energy spectrum of a blackbody at a temperature of 5800 K (approx. temperature of the Sun) using both the Planck distribution and the Raleigh-Jeans distribution. Confirm agreement between the two at long wavelength. a. What is the maximum emission wavelength at this temperature? b. What is the total power output (W/m^2) ? c. Using the Planck distribution, estimate what fraction of the Sun's total power output is emitted in visible wavelengths (400-750 nm)
5. The energy radiating from an animal is measured. If the peak spectral radiant emittance is found at a wavelength of 9.11 um, what is the body temperature (in °C) for this animal? a. b. Assume that the animal radiates energy through the skin with 95% efficiency. Plot the radiant output (spectral radiant emittance) vs. wavelength for 1 μm um. AS30
) A 3-mm-thick glass window transmits 83 percent of the radiation betweenA -0.3 and 3.0 μm and is essentially opaque for radiation at other wavelengths. Determine the rate of radiation transmitted through a 3-m X 3-m glass window from blackbody sources at (a) 5800 K and (b) 1000 K ) A small circular surface of area A-2cm2 located at the center of a 2-m-diameter sphere emits radiation as a blackbody at T-1000 K. Determine the rate at which radiation energy...
What was the temperature anomaly in Buffalo, NY on August 27 ,
2019? Give your answer in °C. Answers within ±3°C of the correct
answer are marked correct.
The long-term average temperature for August in Buffalo is 20
°C. Using this information and your answer from Q8, what was the
temperature in Buffalo on August 27, 2019? Give your answer in
°C.
Hotter objects emit _________ than cooler objects
a. more energy at redder wavelengths
b. more energy at bluer...
The illustration shows the
spectrum of electromagnetic radiation emitted by a blackbody at two
different Kelvin temperatures. The range of visible frequencies
(those that can be detected by the human eye) is also shown. (a) No
matter what the value of the Kelvin temperature T, the spectrum
decreases to zero at very high frequencies. Why is this? (i) At
very high frequencies the photon energy is very small compared to
kT. (ii) At very high frequencies the photon energy is...
