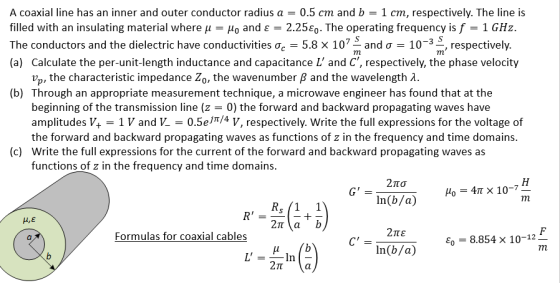

A coaxial line has an inner and outer conductor radius a = 0.5 cm and b...
get the solution 1. A coaxial transmission line has inner and outer conductor radii a and b. Between conductors (a &...
get
the solution
1. A coaxial transmission line has inner and outer conductor radii a and b. Between conductors (a < ρ < b) lies a conductive medium whose conductivity is σ(p)- /p, where σ0is a constant. The inner conductor is charged to potential V0, and the outer conductor is grounded. (a) Assuming de radial current I per unit length inz, determine the radial current density field J in A/m2. (b) Determine the electric field intensity E in terms of...
A solid cylindrical conducting shell of inner radius a = 4.7 cm and outer radius b...
A solid cylindrical conducting shell of inner radius a = 4.7 cm and outer radius b = 5.8 cm has its axis aligned with the z- axis as shown. It carries a uniformly distributed current l2 = 5.6 A in the positive z-direction. An inifinte conducting wire is located along the z-axis and carries a current I1 = 3.7 A in the negative z-direction R707d 707d) Sód, 6d). P(a0) 2) What is B.dl P where the integral is taken along...
