6. (8 pts) Using grammar below show a Parse tree and leftmost derivation for a). A...

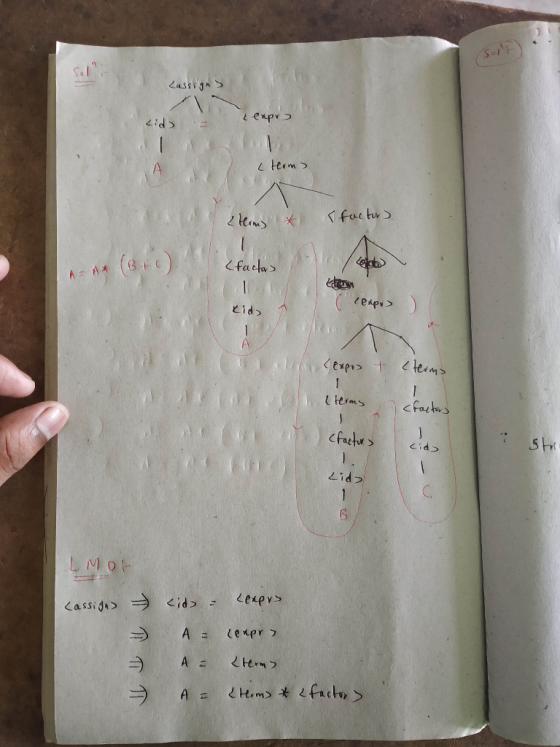

6. (8 pts) Using grammar below show a Parse tree and leftmost derivation for
a). A = A * (B+C)
<assign> à<id> = <expr>
<id> à A | B|C
<expr>à <expr> + <term>
| <term>
<term> à <term> * <factor>
|<factor>
<factor> à ( <expr> )
|<id>
Homework Answers
Add Answer to:
6. (8 pts) Using grammar below show a Parse tree and leftmost
derivation for
a). A...
