Question

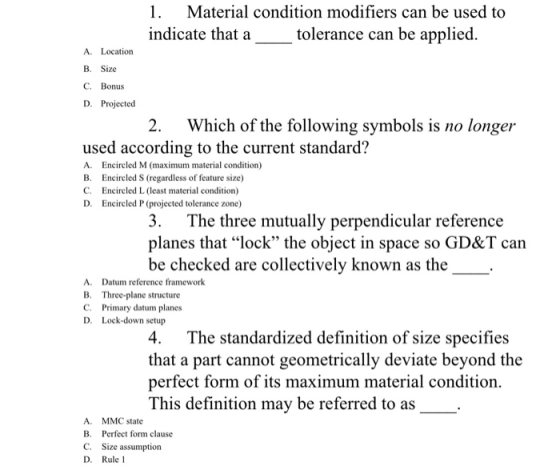

1. Material condition modifiers can be used to indicate that a tolerance can be applied. A. Location B. Size C. Bonus D. Projected 2. Which of the following symbols is no longer used according to the current standard? A. Encircled M (maximum material condition) B. Encircled S (regardless of feature size) C. Encircled L (least material condition) D. Encircled P (projected tolerance zone) 3. The three mutually perpendicular reference planes that “lock” the object in space so GD&T can be checked are collectively known as the A. Datum reference framework B. Three-plane structure C. Primary datum planes D. Lock-down setup 4. The standardized definition of size specifies that a part cannot geometrically deviate beyond the perfect form of its maximum material condition. This definition may be referred to as A. MMC state B. Perfect form clause c. Size assumption D. Rule 1

Answer 1

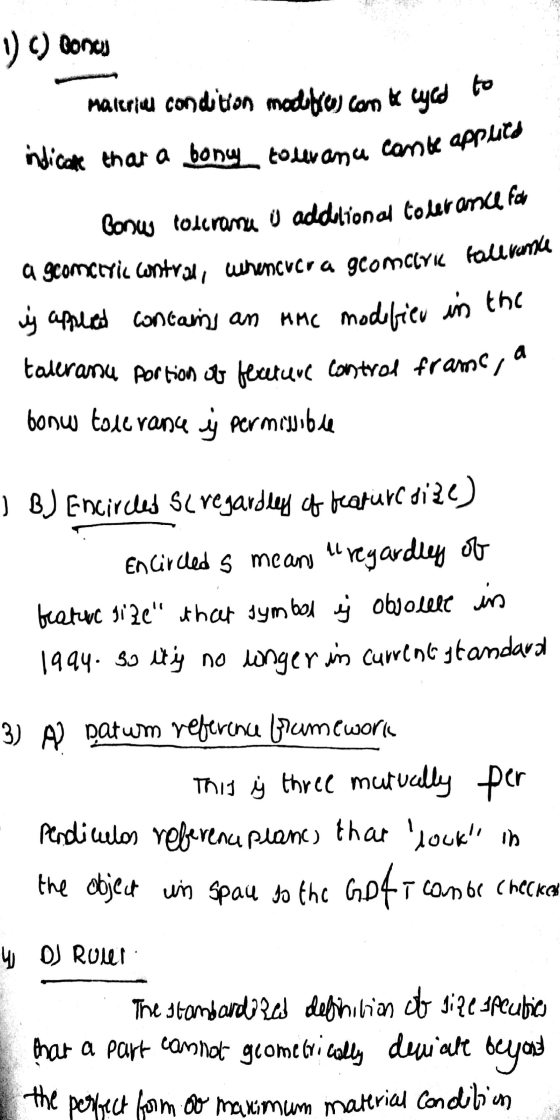

1) c) Donos materia condition mathias com a cyced indicate thar a bony tourana cante apt Donw folcranu o addolionat tolerance for a geometric wntral, whencucra gcomclyik falevante y appered contains an MMC modifieu in e seransa portion of fecerunc control frame, a bonw tolerance y permouble 1 B) Encircled scregardley of feature size) Encircled s means le regardley of feature si' 2e" that tym bod sj obolele in 1994. So it y no longer in current standard 3) A) Datum reference (ramework This ý three mutually per Pendiculos reberena planc) that 'lock' in the object win Spau so the Gofi can be checker 4 DJ Rover The stombardoret definition do size spcubic that a part cannot geometrically dewiale beyou the perfect form of maximum material condition
