Provide structures that are consistent with the following 1H NMR spectra. Calculate the degree of unsaturation of each compound first. Assign the protons to their respective peaks.

Question

Question

Provide structures that are consistent with the following 1H NMR spectra. Calculate the degree of unsaturation of each compound first. Assign the protons to their respective peaks.

010 1H shift chart 304.pdf

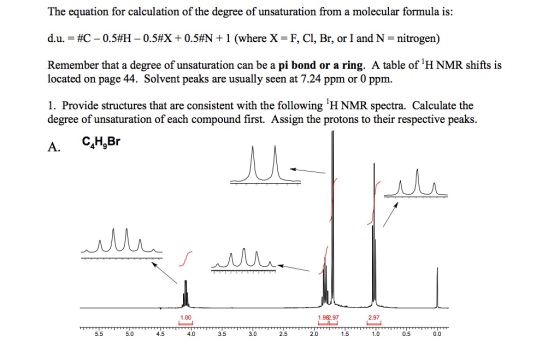

1c page 1.jpg

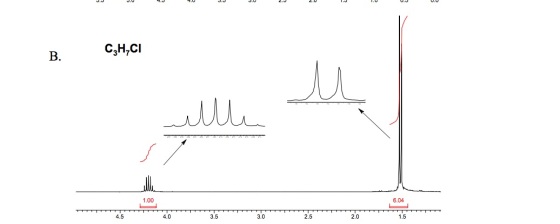

1c page 2.jpg

Organic-Chemistry Nmr

Add a comment Improve this question Transcribed image text

Answer 1

✔ Recommended Answer

Answer #1

answered by: Sutali

Add a comment
