Question

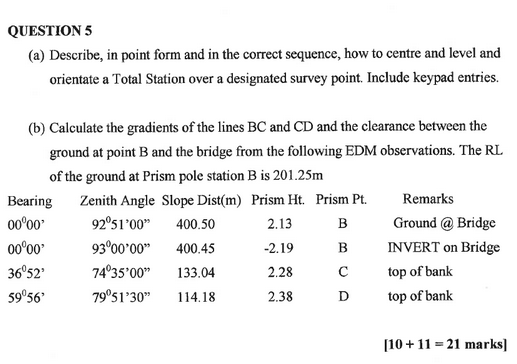

QUESTION 5 (a) Describe, in point form and in the correct sequence, how to centre and level and orientate a Total Station over a designated survey point. Include keypad entries. (b) Calculate the gradients of the lines BC and CD and the clearance between the ground at point B and the bridge from the following EDM observations. The RL of the ground at Prism pole station B is 201.25m Bearing Zenith Angle Slope Dist(m) Prism Ht. Prism Pt.Remarks 2.13 2.19 2.28 2.38 925 400.50 9300 00" 400.45 00°00 3652 7435'00" 133.04 59056 Ground @ Bridge INVERT on Bridge top of banlk top of bank 7951 30" 114.18 110+11 -21 marks]

Answer 1

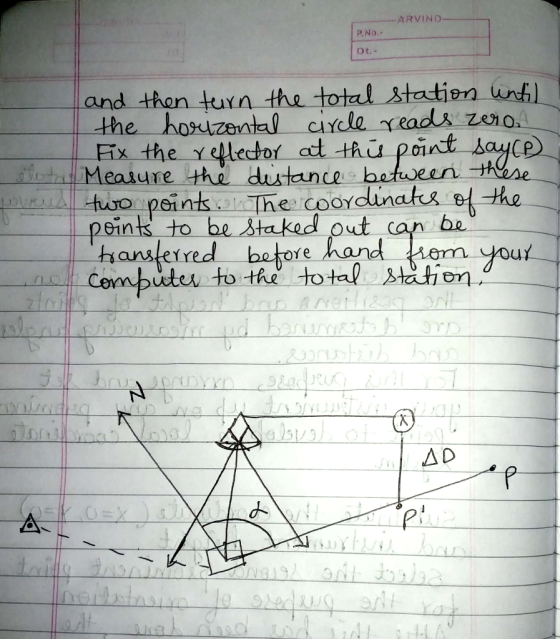

a): How to centre and level and orientate a Total station over designated survey point. In order to develop as a built plan, the position and height of points are determined by measuring angles and distances. For this purpose, arrange and set your instrument up on any prominent point to develop a local coordinate system. Substitute the coordinate (x = 0, y = 0) and instrument height Select the second prominent point for the purpose of orientation. After this has been done, the horizontal circle must be set to zero. Orientate a Point Fix up the device at a known point and set the horizontal circle. Then enter the coordinate to staking out. \r\n and then turn the total station until the horizontal circle reads zero. Fix the reflector at this point say(P) Measure the distance between these two points. The coordinates of the points to be staked out can be transferred before hand from your computer to the total station,
