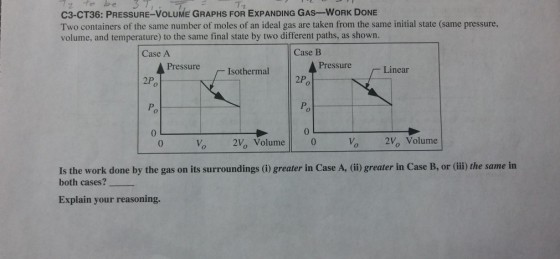

C3-CT36: PRESSURE-VOLUME GRAPHS FOR EXPANDING GAS-WORK DONE Two containers of the same number of moles of...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

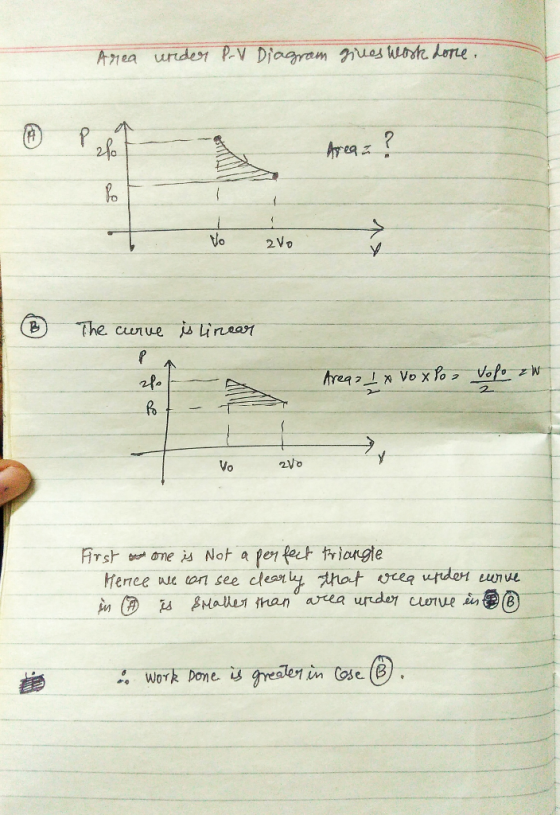

2-屁 the cwrue js inar 2fo Frst one is Not a fen fart triangle

Answer 2

Similar Homework Help Questions

In both cases below, one mole of an ideal gas is expanded from an initial volume...

In both cases below, one mole of an ideal gas is expanded from an initial volume V to a final volume 2 V. In both cases, the gas is identical and the initial pressure is 2P. The expansion is adiabatic in A and isothermal in B. Will the final temperature of the gas be (i) greater in Case A, (ii) greater in Case B, or (iii) the same in both cases? Explain your reasoning
The work done by two moles of a monatomic ideal gas (γ = 5/3) in expanding...

The work done by two moles of a monatomic ideal gas (γ = 5/3) in expanding adiabatically is 920 J. The initial temperature and volume of the gas are 365 K and 0.110 m³. What is the final volume of the gas? [Hint: For an adiabatic process => T1V1γ-1 = T2V2γ-1]
The work done by two moles of a monatomic ideal gas (γ = 5/3) in expanding...

The work done by two moles of a monatomic ideal gas (γ = 5/3) in expanding adiabatically is 920 J. The initial temperature and volume of the gas are 390 K and 0.120 m³. What is the final volume of the gas? [Hint: For an adiabatic process => T1V1γ-1 = T2V2γ-1]

How much work is done by the gas? Two moles of an ideal gas with volume...

How much work is done by the gas? Two moles of an ideal gas with volume 3 m^3 at 2 atmospYicrcs pressure are expanded isothermally to 6 m^3, then compressed isobarically back to the initial volume then returned at constant volume back to the original conditions. How much work is done by the gas?
The work done by Four moles of a monatomic ideal gas (γ = 5/3) in expanding...

The work done by Four moles of a monatomic ideal gas (γ = 5/3) in expanding adiabatically is 870 J. The initial temperature and volume of the gas are 355 K and 0.190 m³. What is the final temperature of the gas.
16. Two containers having the same volume and temperature hold the same number of moles of...

16. Two containers having the same volume and temperature hold the same number of moles of gas. The first container contains He (g). The second container contains UF6 (). Which of the following is true? (4 points) (a) Some of the UFs molecules are moving faster than some of the He atoms. (b) The pressure of the He container is higher. (c) The average speed of the UF, molecules will be greater than the average speed of the He atoms....

The work done by four moles of a monatomic ideal gas (γ = 5/3) in expanding...

The work done by four moles of a monatomic ideal gas (γ = 5/3) in expanding adiabatically is 810 J. The initial temperature and volume of the gas are 365 K and 0.130 m³. What is the final volume of the gas? [Hint: For an adiabatic process => T1V1γ-1 = T2V2γ-1] The answer isn't 0.13
A) Find w12, the work done on the gas as it expands from state 1 to state 2. Express the work done in terms of Po and...

A) Find w12, the work done on the gas as it expands from state 1 to state 2. Express the work done in terms of Po and Vo B) Find W23 , the work done on the gas as it cools from state 2 to state 3. Express your answer in terms of Po and Vo. C) Find W34, the work done on the gas as it is compressed from state 3 to state 4. Express your answer in terms...
28. The work done by an ideal gas in an isothermal expansion from v volume Vs...

28. The work done by an ideal gas in an isothermal expansion from v volume Vs to volume V, is glven by the formula: w = nRT In(V/V) spheric pressure (1 atm) is 101.3 KPa. If 1.0 L of He gas at room temperature 0 atm of (208C) and 1. work is done on the gas? pressure is compressed isothermally to a volume of 100 mL, how much 02 E 23x1 D) 2.3 x 10 A) 5.6 ku B) 4.7...

16. Two containers having the same volume and temperature hold the same number of moles of...

16. Two containers having the same volume and temperature hold the same number of moles of gas. The first container contains He (8). The second container contains UF6 (8). Which of the following is true? (4 points) (a) Some of the UF6 molecules are moving faster than some of the He atoms. (b) The pressure of the He container is higher. (c) The average speed of the UF molecules will be greater than the average speed of the He atoms....
