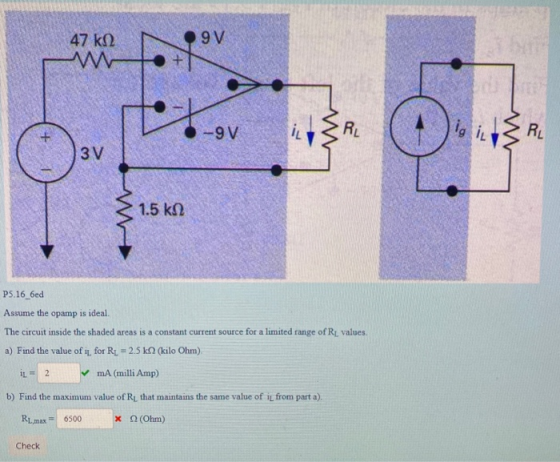

47 k22 9V -gv BRL ( ig i RL < 1.5 k22 P5.16_6ed Assume the opamp is ideal. The circuit inside the shaded areas is a constant

you dont need graph for this sorry just answer is needed
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

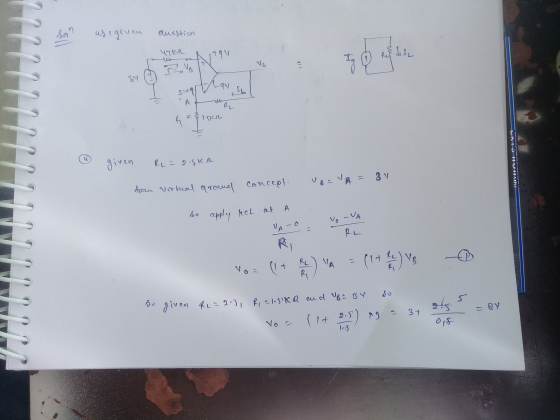

See the answer below

Hope this help you, keep learning

Thank you
