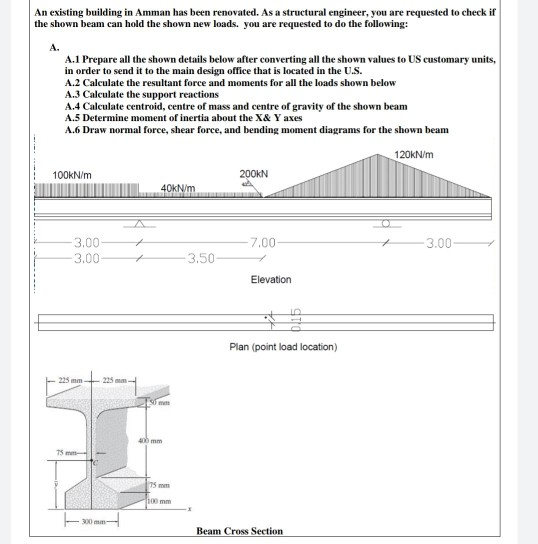

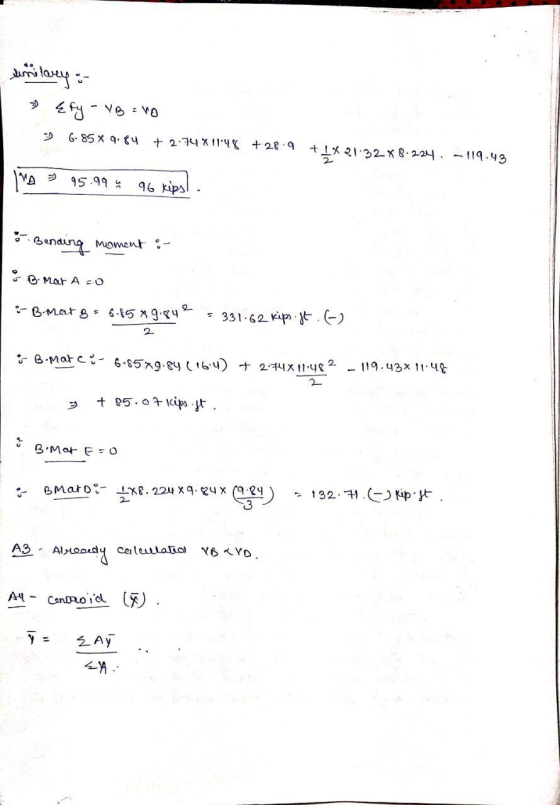

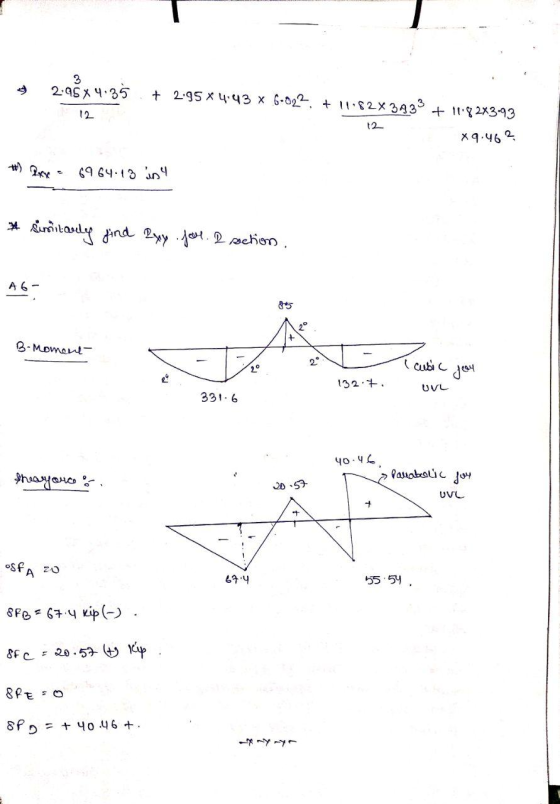

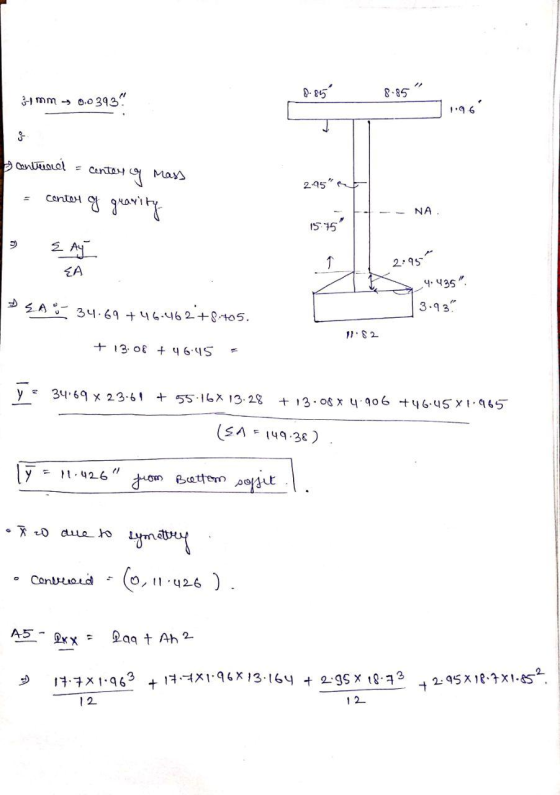

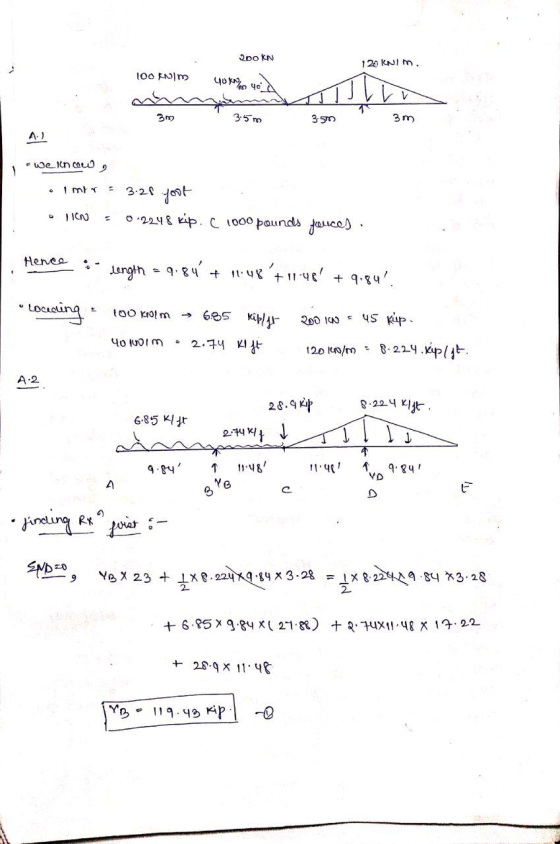

An existing building in Amman has been renovated. As a structural engineer, you are requested to...
Question (a) Why locating shear centre is important in structural design. Locate the shear centre...
Question (a) Why locating shear centre is important in structural design. Locate the shear centre of the thin walled section shown in Fig. 2a with respect to the centre of the web (O) for a vertical downward shear of 100 kN (7 Marks) 50 mm 25mn 25 mm 25 mm 25 mm 25 mm Fig. 2a For the beam shown in Fig. 2b, determine the maximum deflection between B and C. Support at 8 is a pin and support at...
All work must be shown. You are in charge of retrofitting an existing building. The columns...
All work must be shown. You are in charge of retrofitting an existing building. The columns and girders are in place, and you have to design the beams. The building is high end (deflection limited to live load limit of L/480 and a dead load+ live load requirement of L/240). Design the most economical beam size (using conservative calculations) if the unfactored live load is 100 psf and the unfactored dead load (including beam weight) is 80 psf 30 Points...
Answer only if you know the concept, other wise will put abuse The point loads are...
Answer
only if you know the concept, other wise will put abuse
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E 12 2 12 k W C(centre) a Asc b f'= 32 Mpa f'es= 3 MPa fsy = 500 MPa Es = 200 GPa Ex = 28600 MPa a Cross section The following values are used for the question. • 11 = 3 m load before cracking...
The beam shown in Figure 1 has a clear span length of L = 7.6 m...
The beam shown in Figure 1 has a clear span length of L = 7.6 m and x : 1.5 m. The beam cross section is shown in Figure 2 and supports the following loads: WL = 30 kN/m. Wb = 50 kN/m, Q.-50 kN, QD = 80 kN, and supports its own weight. Assume f,'-25 MPa,.-420 MPa, b-350 mm. d-702 mm, h 750 mm, colinn width-450 1. Calculate the beam own weight 2. Calculate the ultimate loads applied on...
The point loads are placed at the fixed positions shown in the figure and they are...
The point loads are placed at the fixed positions shown in the figure and they are live loads. E C (centre) f = 32 Mpa fer= 3 MPa fsv = 500 MPa E = 200 GPa E = 28600 MPa a Cross section The following values are used for the question. . l = 3 m load before cracking • 12 = 2.5 m . P = 2 KN . a = 50 mm . G-5 kN/m • b =...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
The point loads are placed at the fixed positions shown in the figure and they are...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
Question (a) Why locating shear centre is important in structural design. Locate the shear centre of the thin walled section shown in Fig. 2a with respect to the centre of the web (O) for a vertical downward shear of 100 kN (7 Marks) 50 mm 25mn 25 mm 25 mm 25 mm 25 mm Fig. 2a For the beam shown in Fig. 2b, determine the maximum deflection between B and C. Support at 8 is a pin and support at...
All work must be shown. You are in charge of retrofitting an existing building. The columns and girders are in place, and you have to design the beams. The building is high end (deflection limited to live load limit of L/480 and a dead load+ live load requirement of L/240). Design the most economical beam size (using conservative calculations) if the unfactored live load is 100 psf and the unfactored dead load (including beam weight) is 80 psf 30 Points...
Answer
only if you know the concept, other wise will put abuse
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E 12 2 12 k W C(centre) a Asc b f'= 32 Mpa f'es= 3 MPa fsy = 500 MPa Es = 200 GPa Ex = 28600 MPa a Cross section The following values are used for the question. • 11 = 3 m load before cracking...
The beam shown in Figure 1 has a clear span length of L = 7.6 m and x : 1.5 m. The beam cross section is shown in Figure 2 and supports the following loads: WL = 30 kN/m. Wb = 50 kN/m, Q.-50 kN, QD = 80 kN, and supports its own weight. Assume f,'-25 MPa,.-420 MPa, b-350 mm. d-702 mm, h 750 mm, colinn width-450 1. Calculate the beam own weight 2. Calculate the ultimate loads applied on...
The point loads are placed at the fixed positions shown in the figure and they are live loads. E C (centre) f = 32 Mpa fer= 3 MPa fsv = 500 MPa E = 200 GPa E = 28600 MPa a Cross section The following values are used for the question. . l = 3 m load before cracking • 12 = 2.5 m . P = 2 KN . a = 50 mm . G-5 kN/m • b =...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
The point loads are placed at the fixed positions shown in the figure and they are live loads. A B D E k w C (centre) a b f' = 32 Mpa fas= 3 MPa fsy = 500 MPa E = 200 GPa E = 28600 MPa A a Cross section The following values are used for the question. • 1 = 3 m load before cracking • 12 = 2.5 m • P = 2 kN • a =...
