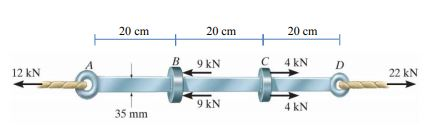

2014-T6 Aluminum
T1 = 22 degrees C. Then it is loaded, and temp changes to T2 = 0
degrees C
What is the change in length?

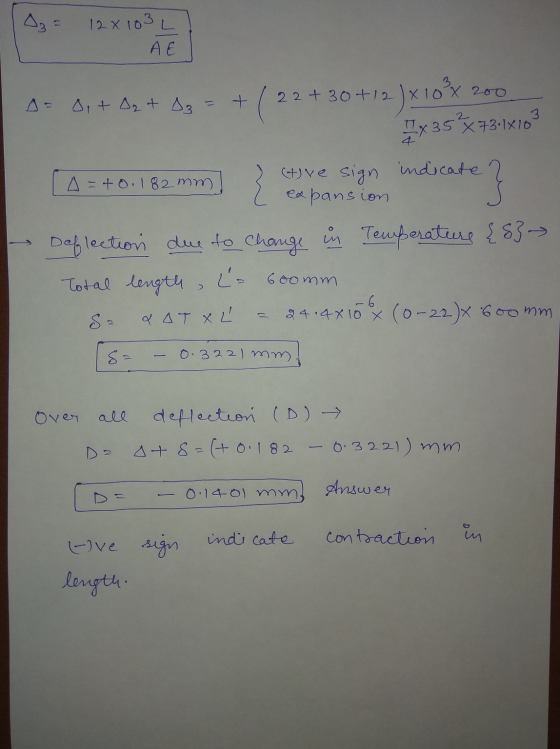

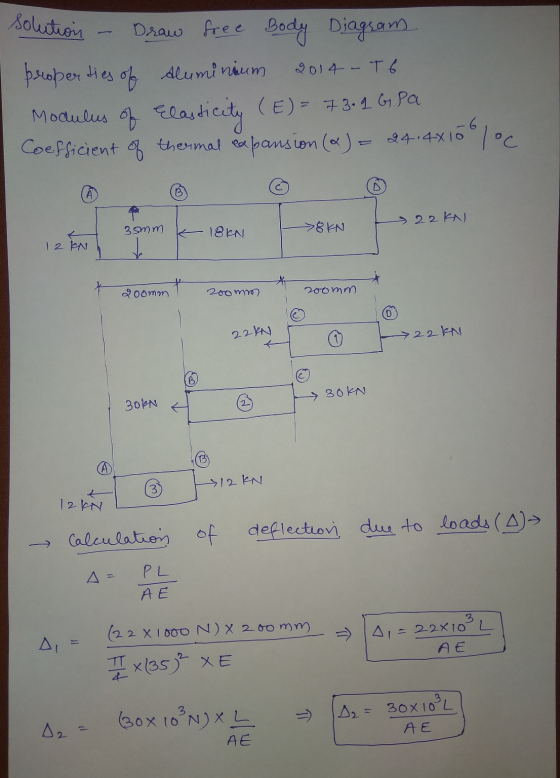

Homework Answers
Add Answer to:
2014-T6 Aluminum
T1 = 22 degrees C. Then it is loaded, and temp changes to T2...
A block of aluminum at a temperature of T1 = 31.5 degrees C has a mass...
A block of aluminum at a temperature of T1 = 31.5 degrees C has a mass of m1 = 14 kg. It is brought into contact with another block of aluminum with a mass of m2 = 0.5m1, at a temperature of T2 = 15 degrees C. This aluminum has a heat capacity of c = 899 J/kg K. b. What is the temperature in degrees C? c. What was the heat transfer to block 1, in joules?
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P= 340 kN is applied. Part B Determine the support reaction at D when an axial force of P = 340 kN is applied.
Original Temp = 22 degrees C 3. An aluminum ring has an inner diameter slightly smaller...
Original Temp = 22 degrees
C
3. An aluminum ring has an inner diameter slightly smaller than the diameter of a steel rod. The aluminum ring is heated so that it expands sufficiently to fit over the steel rod and cooled so that it makes a tight fit. Because aluminum expands and contracts at a greater rate than steel, the system should be heated. The diameter of steel rod is 4.040 cm and the diameter of the aluminum ring is...
Correct answer : angle= 1.9 degrees, 59.68Mpa Part II: Problem 4 (15 points) The 6061-T6 aluminum...
Correct answer : angle= 1.9 degrees, 59.68Mpa
Part II: Problem 4 (15 points) The 6061-T6 aluminum shaft is 1 m long and hollow from A to B with loads applied at the midpoint and end of the shaft. Determine the maximum shear stress in the shaft and the angle of twist at A. The outer diameter is 80 mm and the inner diameter is 60 mm in the hollow section. B 4 kN.m 2 KN-m
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure...
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P = 515 kN is applied. Express your answer to three significant figures and include appropriate units. UA C ? Value Units Submit Request Answer Part B Figure 1 1 of...
4.54 p=530 kN please help! Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the...
4.54
p=530 kN
please help!
Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P 530 kN is applied Express your answer to three significant figures and include appropriate units. HAO? F = Value Units Submit Request...
Between the two frictionless walls as far as 750 mm apart from each other, an aluminum alloy 2014-T6 bag was assembled...
Between the two frictionless walls as far as 750 mm apart from
each other, an aluminum alloy 2014-T6 bag was assembled to support
a compression force of 60 kN. Bongjae is a circular cross section
with a diameter of 30 mm and a length of 750 mm. The elastic
modulus of the material is E=75GPa and the permissible vertical
stress of the material is σ all=400Mpa. Specify the assembly
conditions for assembling the seal between the walls to withstand
the...
The center rod CD of the assembly is heated from T1 = 30 °C to T2...
The center rod CD of the assembly is heated from T1 = 30 °C to T2 = 185 °C using electrical resistance heating. At the lower temperature Ti the gap between C and the rigid bar is 0.7 mm. Rods AB and EF are made of steel, and each has a cross- sectional area of 125 mm². CD is made of aluminum and has a cross-sectional area of 375 mm². Est = 200 GPa, Eal = 70 GPa, and @al...
aluminum bar is subjected to repeated tension-compression cycling along 4. (10) A cylindrical 2014-T6 its axis (200 MPa stress) a) Will the bar fail from fatigue? b) if bar does fail, how many cyc...
aluminum bar is subjected to repeated tension-compression cycling along 4. (10) A cylindrical 2014-T6 its axis (200 MPa stress) a) Will the bar fail from fatigue? b) if bar does fail, how many cycles to ; and c) with bar diameter of 0.01 m, what load caused failure? Show work on graph. ailure; and c) with bar diameter of 0.01 m, what load caused failure? Show wor N 10 80 500 70 60 400 50 1045 stee lo 300 140...
8 O -01722 mm O -0.1388 mm QUESTION 37 For the 2014-T6 aluminum shaft, as shown in figure (18) below. If the shaft having a diameter of 100 mm and the second moment of area of the is (, 10-6 m.)...
8 O -01722 mm O -0.1388 mm QUESTION 37 For the 2014-T6 aluminum shaft, as shown in figure (18) below. If the shaft having a diameter of 100 mm and the second moment of area of the is (, 10-6 m.). And the modulus of elasticity (E-73.1 GPa) Answer [Question 37. 4.908 Question 40 0.5 0.5 m 8 kN 8 kN Figure (18) The support reaction at point A in the y-direction (RAy): (CLO6) (a Point) 2 KN QUESTION 38...
Original Temp = 22 degrees
C
3. An aluminum ring has an inner diameter slightly smaller than the diameter of a steel rod. The aluminum ring is heated so that it expands sufficiently to fit over the steel rod and cooled so that it makes a tight fit. Because aluminum expands and contracts at a greater rate than steel, the system should be heated. The diameter of steel rod is 4.040 cm and the diameter of the aluminum ring is...
Correct answer : angle= 1.9 degrees, 59.68Mpa
Part II: Problem 4 (15 points) The 6061-T6 aluminum shaft is 1 m long and hollow from A to B with loads applied at the midpoint and end of the shaft. Determine the maximum shear stress in the shaft and the angle of twist at A. The outer diameter is 80 mm and the inner diameter is 60 mm in the hollow section. B 4 kN.m 2 KN-m
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P = 515 kN is applied. Express your answer to three significant figures and include appropriate units. UA C ? Value Units Submit Request Answer Part B Figure 1 1 of...
4.54
p=530 kN
please help!
Problem 4.54 The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P 530 kN is applied Express your answer to three significant figures and include appropriate units. HAO? F = Value Units Submit Request...
Between the two frictionless walls as far as 750 mm apart from
each other, an aluminum alloy 2014-T6 bag was assembled to support
a compression force of 60 kN. Bongjae is a circular cross section
with a diameter of 30 mm and a length of 750 mm. The elastic
modulus of the material is E=75GPa and the permissible vertical
stress of the material is σ all=400Mpa. Specify the assembly
conditions for assembling the seal between the walls to withstand
the...
The center rod CD of the assembly is heated from T1 = 30 °C to T2 = 185 °C using electrical resistance heating. At the lower temperature Ti the gap between C and the rigid bar is 0.7 mm. Rods AB and EF are made of steel, and each has a cross- sectional area of 125 mm². CD is made of aluminum and has a cross-sectional area of 375 mm². Est = 200 GPa, Eal = 70 GPa, and @al...
aluminum bar is subjected to repeated tension-compression cycling along 4. (10) A cylindrical 2014-T6 its axis (200 MPa stress) a) Will the bar fail from fatigue? b) if bar does fail, how many cycles to ; and c) with bar diameter of 0.01 m, what load caused failure? Show work on graph. ailure; and c) with bar diameter of 0.01 m, what load caused failure? Show wor N 10 80 500 70 60 400 50 1045 stee lo 300 140...
8 O -01722 mm O -0.1388 mm QUESTION 37 For the 2014-T6 aluminum shaft, as shown in figure (18) below. If the shaft having a diameter of 100 mm and the second moment of area of the is (, 10-6 m.). And the modulus of elasticity (E-73.1 GPa) Answer [Question 37. 4.908 Question 40 0.5 0.5 m 8 kN 8 kN Figure (18) The support reaction at point A in the y-direction (RAy): (CLO6) (a Point) 2 KN QUESTION 38...
